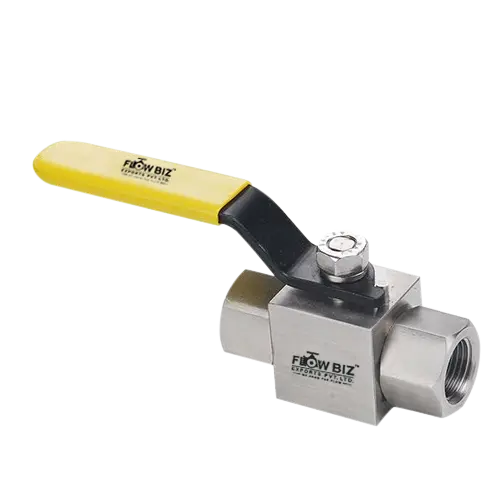

High Pressure Ball Valve Manufacturer & Exporter in India
FlowBiz Exports manufactures industrial-grade High Pressure Ball Valves designed to deliver leak-tight flow control under extreme line pressures and harsh operating environments. Built with heavy-duty forged body construction, reinforced seats, and blowout-proof stem assemblies, our high-pressure ball valves ensure maximum safety, structural durability, and low operating torque in critical high-pressure liquid and gas pipelines.
Key Performance Features
- Heavy-Duty Forged Construction: Machined from high-tensile forged carbon steel or stainless steel to safely absorb high pressure spikes and mechanical stress.
- Extreme Pressure Sealing: Fitted with high-strength PEEK, Delrin, or metal-to-metal seats engineered to withstand severe pressure differentials without seat deformation.
- Blowout-Proof Stem & Anti-Static System: Internally loaded stem with anti-blowout collar and grounding devices ensures continuous operational safety and static dissipation.
- Low Operating Torque: Precision-ground ball and friction-reducing stem bearings enable smooth quarter-turn actuation even at maximum working pressure.
Technical Specifications & Standards
Specification Parameter | Standard Options & Manufacturing Range |
Size Range | 1/4" (DN8) to 6" (DN150) |
Pressure Class / Rating | Class 800, Class 1500, Class 2500 / 3000 PSI to 10,000 PSI (200 Bar to 700 Bar) |
Body Materials | Forged Carbon Steel (A105, LF2), Forged Stainless Steel (SS304, SS316, SS316L), Duplex & Super Duplex |
Seat & Seal Materials | PEEK, Delrin, Nylon, Metal-to-Metal Hard-Faced |
End Connections | Screwed (NPT/BSP), Socket Weld (SW), Butt Weld (BW), Flanged (ASME B16.5 / RTJ) |
Design & Testing | Designed to ASME B16.34 / BS 5351; Tested to API 598 & ISO 5208 |
Target Industries & Applications
FlowBiz high-pressure ball valves are widely deployed in oil & gas hydraulic skids, high-pressure chemical injection systems, CNG/LPG refueling lines, power generation steam units, and hydrostatic testing rigs.
Contact FlowBiz Exports for technical datasheets, pressure-temperature charts, or an instant commercial quotation for your requirements.
