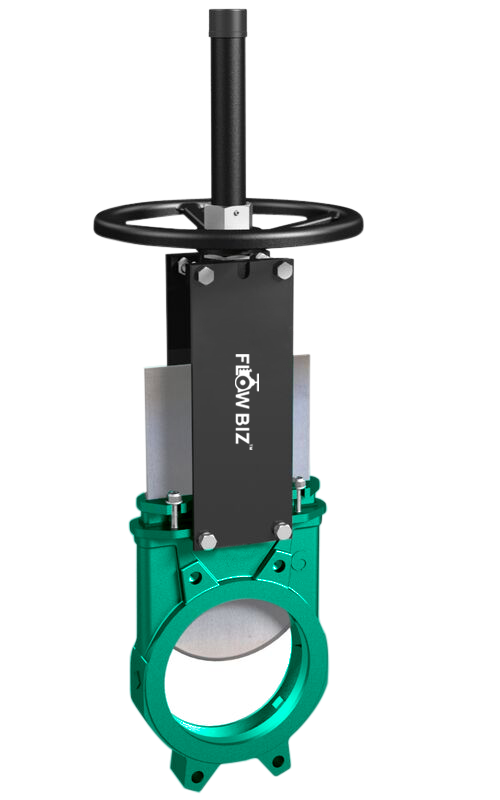

Knife Edge Gate Valve - Severe Service Slurry & Solid Flow Isolation
FlowBiz Exports is a leading manufacturer and exporter of heavy-duty Knife Edge Gate Valves. Specifically engineered to handle thick slurries, viscous fluids, dry powder, and media containing suspended solids, these valves feature a sharp, bevel-edged gate disc that easily cuts through dense media to establish tight, reliable isolation without clogging.
Key Features & Operational Superiority
- Sharp Beveled Gate Disc: Precision-machined, self-cleaning knife edge slices through fibrous materials, thick sludge, and heavy slurries during closure.
- Non-Clogging Body Design: Streamlined cavity-free bottom profile prevents media buildup, packing, or clogging under seat sealing areas.
- Compact Wafer Body: Space-saving, lightweight face-to-face structure allows quick installation and easy maintenance in crowded process lines.
- Bi-Directional / Uni-Directional Options: Engineered with resilient elastomeric seats for zero-leakage soft shut-off or metal seats for high-temperature and abrasive slurry service.
Technical Specifications & Material Grades
Parameter | Specification Details |
Size Range | DN50 to DN1200 (2” to 48”) |
Pressure Rating | PN6, PN10, PN16, Class 150 / ASME B16.5 |
Temperature Range | -20°C to +400°C (Depending on seat selection and body lining) |
Body Materials | Ductile Iron, Cast Steel (A216 WCB), Stainless Steel (CF8, CF8M, CF3M), Super Duplex Steel |
Gate Disc Materials | SS304, SS316, SS316L, 17-4PH Hardened Steel, Nitrided / Chrome-Plated Steel |
Seat / Lining Types | Resilient EPDM, NBR, Viton, PTFE, or Metal-to-Metal (Stellite 6 Hardfaced) |
Body Styles & Ends | Wafer Type, Lugged Type, Semi-Lugged Type, Double Flanged |
Actuation Modes | Handwheel, Rising/Non-Rising Stem, Bevel Gear, Pneumatic Cylinder, Electric Actuator |
International Standards & Quality Inspection
All FlowBiz knife edge gate valves are designed and manufactured following MSS SP-81, TAPPI TIS 405-8, ASME B16.34, and ISO 5208 design standards. Every valve undergoes rigorous hydrostatic body testing, pneumatic seat leakage testing, and dimension checks per API 598 guidelines prior to global shipment.
Industrial Applications
Our knife edge gate valves are extensively specified in solids-handling and abrasive process operations, including:
- Pulp & Paper Processing (Stock & Slurry Lines)
- Wastewater Treatment Plants, Sewage & Sludge Piping
- Mining, Mineral Processing & Tailings Transport
- Cement, Fly Ash, and Bulk Powder Handling
- Chemical Processing & Viscous Liquid Lines
Why Choose FlowBiz Exports?
At FlowBiz Exports Pvt. Ltd., an ISO 9001:2015 certified company, we take pride in our precision manufacturing. Our expertly crafted Gate Valves are in high demand globally due to their long service life and exceptionally smooth operation.
Contact FlowBiz today for high-performance API 600 valve solutions. At FlowBiz, We Know The Flow.
