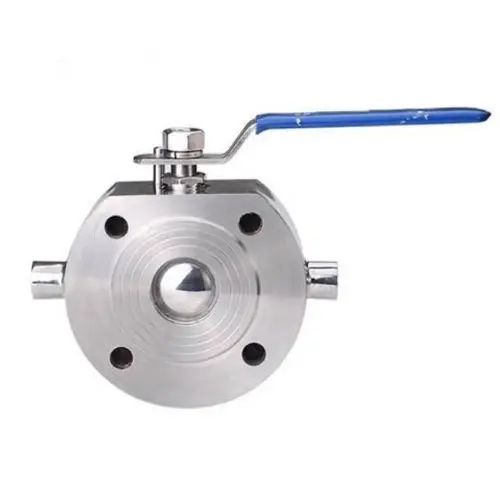

Wafer Jacketed Ball Valve Manufacturer & Exporter in India
FlowBiz Exports manufactures high-grade Wafer Jacketed Ball Valves designed to provide dual benefits: a space-saving compact wafer design combined with a full outer heating/cooling jacket. Specially engineered for temperature-sensitive and high-viscosity media in tight piping layouts, these valves prevent fluid solidification and clogging while occupying minimal space along the pipeline.
Key Performance Features
- Ultra-Compact Heating Solution: Short face-to-face wafer construction drastically reduces overall valve length and weight compared to full flanged jacketed valves.
- Full Jacket Flow Coverage: Jacket completely covers the valve body to ensure uniform thermal distribution from steam, hot oil, or hot water, keeping media in a continuous molten state.
- Zero Leakage Tight Shut-Off: Features precision-machined ball surfaces and thermal-resistant seat materials for bubble-tight seal performance under high temperature and pressure.
- Easy Flange-Sandwich Mounting: Fits directly between standard ANSI or DIN pipe flanges, enabling fast installation and effortless inline maintenance.
Technical Specifications & Standards
Specification Parameter | Standard Options & Manufacturing Range |
Size Range | 1/2" (DN15) to 6" (DN150) |
Pressure Rating | ASME Class 150, Class 300 / PN16, PN25, PN40 |
Jacket Working Pressure | Standard up to 10 Bar (Steam / Thermal Oil Service) |
Body Materials | Stainless Steel (CF8/SS304, CF8M/SS316), Cast Carbon Steel (WCB) |
Seat & Seal Options | PTFE, RPTFE, PEEK, High-Temp Metal Seating |
End Connections | Wafer Type (Clamped between ANSI B16.5 / DIN Flanges) |
Testing & Inspection | Tested to API 598 for 100% pressure & jacket integrity |
Target Industries & Applications
FlowBiz wafer jacketed ball valves are ideal for bitumen and asphalt processing, liquid sulphur lines, molten wax lines, resin and polymer plants, and temperature-critical chemical piping manifolds.
Contact FlowBiz Exports for technical datasheets, CAD dimensional drawings, or an instant commercial quotation for your project.
