High-Performance Plug Valves: Zero-Emission Flow Control

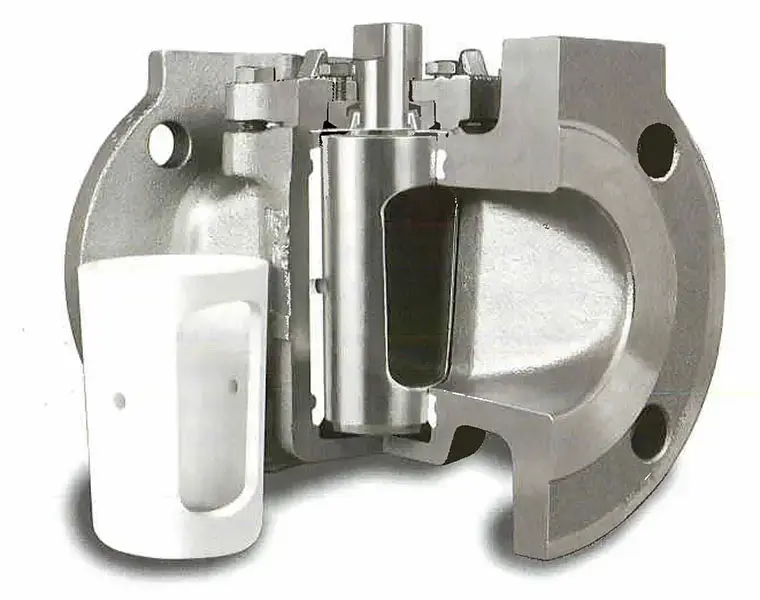

A Plug Valve is a quarter-turn rotational motion valve that uses a tapered or cylindrical plug to start or stop flow. Unlike standard ball valves, the FlowBiz Sleeved Plug Valve features a 360° PTFE/PFA sleeve that surrounds the plug, providing a massive sealing area and eliminating the cavities where contaminants often accumulate.
The FlowBiz Engineering Advantage
Our design focuses on solving the most common issues in aggressive media handling: jamming, fugitive emissions, and sleeve dislocation.
- Zero Emission Stem Seal: Featuring a unique stem seal design with "cup hops," our valves ensure even force distribution on the sealing members. This guarantees a leak-proof seal to the atmosphere and a significantly higher lifecycle.
- Superior Sleeve Retention: Engineered to prevent sleeve dislocation, our design is perfect for liquids containing impurities or mild slurries. By avoiding "cold flow" and deformation, we ensure permanent inline sealing.
- Self-Cleaning Port Lips: The 360° port lips provide a continuous self-cleaning action. As the plug rotates, the metal lips scrape off scaling and debris, making these valves ideal for dense or foul-prone media.
- Cavity-Free Design: There are no "dead zones" or holes to collect media. This prevents cross-contamination between batches and makes the valve ideal for high-purity chemical processing.
Technical Features & Benefits
Feature | Operational Benefit |
Zero Maintenance | Self-lubricating sleeve requires no grease or oil. |
Low Constant Torque | Optimized plug geometry prevents jamming and reduces actuator size. |
Bidirectional Flow | Full-rated pressure shutoff in either direction for easier installation. |
High Flow Coefficient | Optimized flow path minimizes pressure drop and increases system efficiency. |
Total Isolation | The sealing surface performs its duty 360° around the card sleeve. |
Core Industrial Applications
FlowBiz Plug Valves are the preferred choice for sectors where media "buildup" is a concern:
- Chemical & Petrochemical: Handling acids, alkalis, and aggressive solvents.
- Mining & Slurry: Transporting abrasive solids and mine tailings.
- Fertilizer & Pesticides: Managing corrosive chemicals and foul-prone liquids.
- Food & Pharma: Cavity-free design ensures zero contamination for hygiene-sensitive processes.
FlowBiz Exports: Your Global Partner in Valve Excellence
As a leading Plug Valve manufacturer in India, FlowBiz Exports supports critical sectors with a robust portfolio of "Make in India" products.
Our Extended Range:
- Isolation: Gate, Globe, Ball, Butterfly, and Sleeved Plug Valves.
- Specialty: PFA/FEP Lined Valves, Diaphragm Valves, and Knife Edge Gate Valves.
- Steam & High Pressure: Glandless Piston Valves, Forged Steel, and IBR Valves.
- Filtration: Y-Type, Basket, and Conical Strainers.
Is your process media causing constant valve jamming or cross-contamination?
Upgrade to the FlowBiz Sleeved Plug Valve for a self-cleaning, zero-maintenance solution. Contact our technical team today for a sizing consultation, material selection guide, and a customized quote for your facility.
