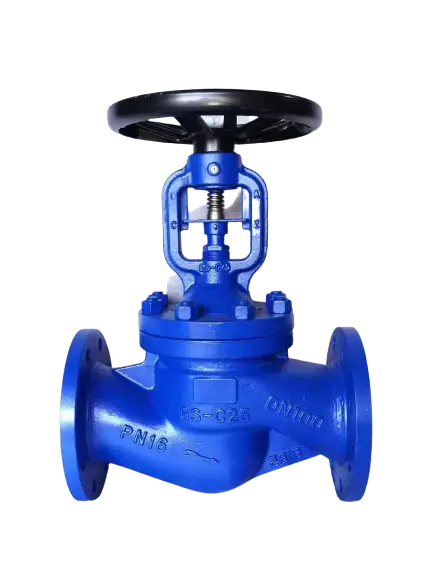

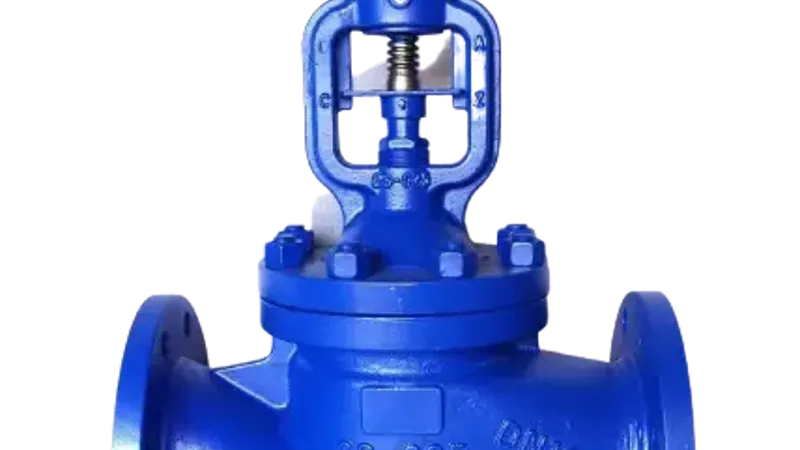

DIN Standard Globe Valves: The Precision Engineering Choice for Flow Regulation

In the world of industrial flow control, "regulation" and "isolation" are two distinct challenges. While many valves can stop a flow, very few can control it with the precision of a DIN Standard Globe Valve. FlowBiz Exports manufactures these valves to provide exact throttling and reliable shut-off in high-pressure steam, chemical, and process lines.

What Makes FlowBiz DIN Standard Globe Valves Superior?

The DIN (Deutsches Institut für Normung) standard is synonymous with safety and interchangeable precision. Our valves are cast with a complete bore to minimize turbulence and are specifically designed for regulation duties where standard valves might suffer from erosion.

The "ND" and "HD" Pressure Levels Explained

In advanced piping systems, understanding pressure designations is critical for safety.

  • HD (High Pressure): Refers to the full supply pressure in the primary channel.
  • ND (Niederdruck / Low Pressure): Refers to the regulated, set pressure of the control valve.
    FlowBiz valves are designed to transition between these levels, ensuring your downstream equipment is protected from high-pressure surges.

Technical Specifications & Construction Features

FlowBiz utilizes high-integrity materials to ensure that every DIN Standard Globe Valve delivers a decade of service:

  • Cast Precision Body: Crafted from high-quality cast iron or cast steel, ensuring a rigid structure that resists thermal deformation.
  • Forged Steel Stem: Single-part construction with an ACME screw thread. This ensures smooth, non-binding movement even under high seat loads.
  • Sealing Technology:
  • Class 150-600: Uses a high-grade Graphite + Stainless Steel Spiral Wound Gasket.
  • Class 900: Utilizes a Ring Joint (RTJ) bonnet for maximum leak protection.
  • Online Maintenance (Backseat): Our valves include a backseat feature, allowing plant operators to replace stem packing safely while the valve is under pressure.
  • Rising Rotation Stem: Provides a clear visual indicator of the valve’s opening percentage, which is essential for manual throttling.

Strategic Design: The DN200 Limit

Engineering physics dictates that as the valve size increases, the force exerted by the fluid on the disc becomes immense. FlowBiz limits the standard manual DIN Globe design to DN200. This ensures that the valve remains easy to operate and prevents premature wear on the stem and nut assembly, maintaining the safety of your operators.

Core Applications

  • Steam Boilers & Condensate Lines: Ideal for regulating steam flow to heat exchangers.
  • Chemical Processing: Precision dosing and flow control of aggressive media.
  • Refineries: Managing high-temperature oils and hydrocarbon gases.
  • Power Generation: Critical isolation and bypass regulation.

Serving Industrial Clusters Globally

As a top-tier DIN Standard Globe Valve manufacturer in India, FlowBiz Exports delivers quality to the most critical hubs:

  • Gujarat Operations: Ahmedabad, Vapi, Ankleshwar, Dahej, and Gandhidham.
  • Maharashtra Presence: Mumbai, Pune, Nashik, Nagpur, and Aurangabad.
  • International Exports: Supplying major projects in Dubai, Turkey, Africa, Bangladesh, Thailand, and Vietnam.

Is your current valve failing to provide precise control under pressure?

Upgrade to the FlowBiz DIN Standard Globe Valve—where precision meets power. Contact our technical team today for a sizing consultation, $K_v$ value calculations, and a customized quote for your facility.
