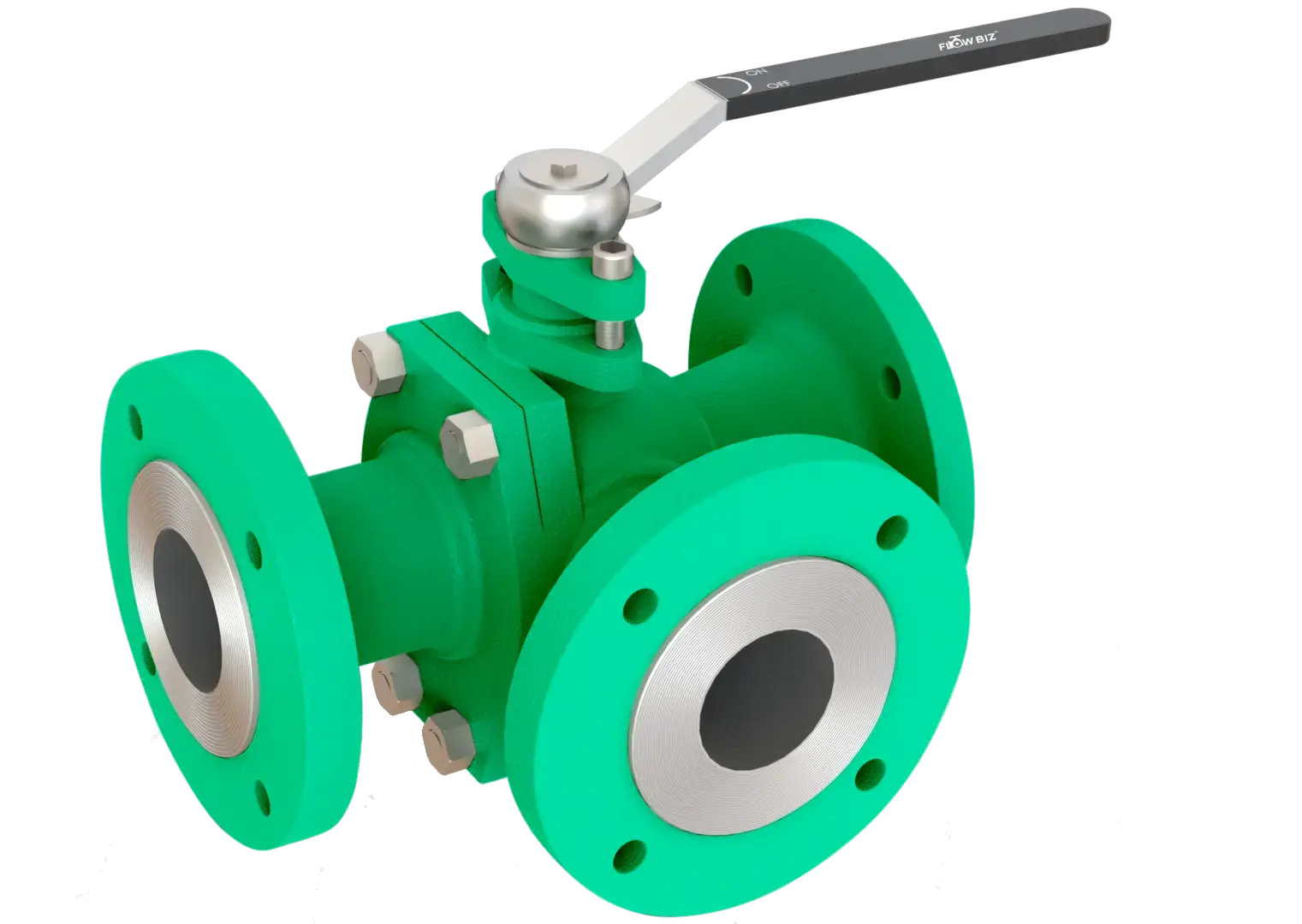

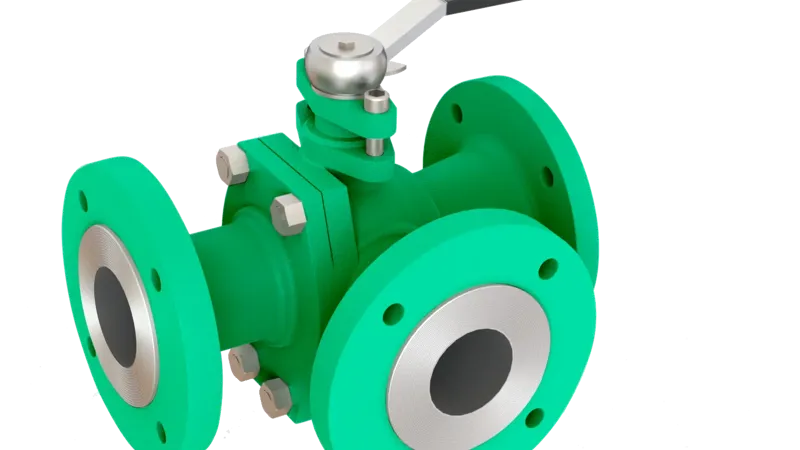

What is a 3-Way Ball Valve?
A 3-Way Ball Valve features three ports (openings) instead of the standard two. This allows the valve to manage flow in ways a standard isolation valve cannot. Depending on your process requirements, these valves can act as diverters (one inlet, two outlets) or mixers (two inlets, one outlet).
Understanding Flow Configurations: L-Port vs. T-Port
The performance of a 3-way valve is defined by the bore shape inside the ball:
- L-Port (Diverter Valve): Used to direct flow from one common inlet to one of two different outlets. It is primarily used for switching between two different tanks or pipelines.
- T-Port (Mixing/Bypass Valve): Offers more versatility. It can connect all three ports together, mix two different fluids, or simply act as an L-port diverter.
The FlowBiz Engineering Advantage
FlowBiz 3-Way Steel Ball Valves are designed for "Zero Leakage" and high-cycle reliability:
- Strong Construction: Manufactured from high-grade cast steel (WCB) or stainless steel (CF8M) to withstand high-pressure process environments.
- Advanced Sealing: We provide specialized seals (PTFE, RPTFE, or Metal-to-Metal) to comply with the exact specifications of aggressive chemical and petrochemical media.
- Reduced Piping Complexity: By using one 3-way valve instead of three standard ball valves, you reduce the number of potential leak points and simplify your automation package.
- Longer Service Life: Precision-ground balls and self-adjusting stem packing ensure consistent operating torque over thousands of cycles.
Technical Specifications
Feature | Details |
Port Styles | L-Port or T-Port configurations |
Body Materials | Carbon Steel (WCB), Stainless Steel (SS304/316/316L) |
End Connections | Flanged (ANSI 150#/300#), Screwed, or Socket-Weld |
Operation | Manual Lever, Gear, or Fully Automated (Pneumatic/Electric) |
Size Range | Standard industrial sizes up to DN150 (6") |
Core Industrial Applications
FlowBiz 3-Way valves are essential in sectors where flow direction is critical:
- Chemical & Petrochemical: Dosing systems and reactor feed lines.
- Pharmaceutical & Food: Aseptic transfer and clean-in-place (CIP) bypass.
- Offshore & Marine: Fuel handling and cooling water diversion.
- Process Industries: Blending systems and thermal fluid distribution.
Your Global Flow Control Partner
As a premier 3-Way Ball Valve manufacturer in India, FlowBiz Exports delivers engineering excellence to the world's most critical industrial hubs:
- India Presence: Leading supplier in Mumbai, Ahmedabad, Pune, Chennai, and Vapi.
- Global Reach: Trusted by engineers in Dubai, Turkey, Africa, Southeast Asia, and Europe.
Do you need to simplify your piping layout or automate your flow diversion?
Switch to the FlowBiz 3-Way Steel Ball Valve for precision control and a longer service life. Contact our technical team today to discuss your specific flow pattern (L or T), material compatibility, and actuation requirements.
