The Role of Steam Traps in Thermal Efficiency
In any steam system, heat exists in two forms: Latent Heat (the energy used for the process) and Sensible Heat (heat held in the condensate). Once steam releases its latent heat, it turns into condensate. If this condensate is not removed, it creates a barrier to heat transfer and causes catastrophic "Water Hammer" damage.

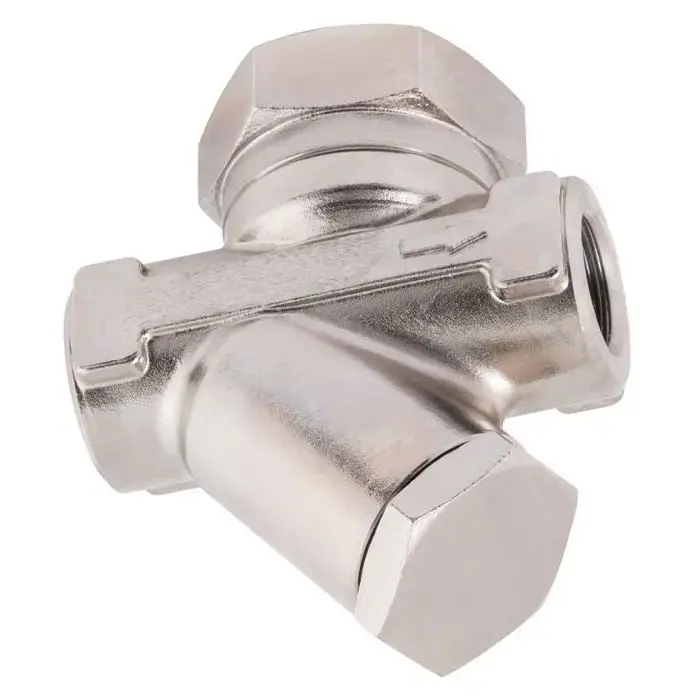

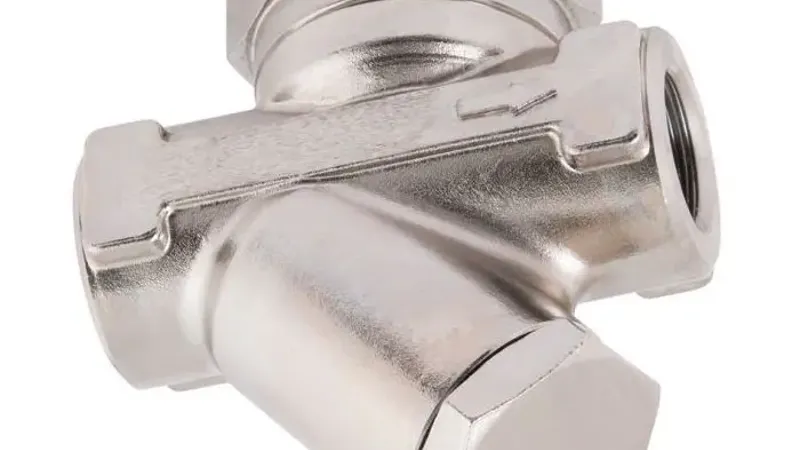

The FlowBiz Thermodynamic Steam Trap acts as a guardian, discharging condensate immediately while trapping valuable live steam inside the system.
Operation Principle: Bernoulli's Law in Action
The operation of a thermodynamic trap is elegantly simple, relying on the relationship between velocity and pressure (Bernoulli's Principle).
- Start-up: As cold condensate enters the trap, the pressure pushes the disc upwards, allowing the condensate to discharge freely through the outlet ports.
- Flash Steam Phase: As the condensate becomes hotter, it approaches the steam temperature. When this high-temperature condensate passes through the narrow gap under the disc, a pressure drop occurs, causing it to "flash" into steam.
- The Seal: This high-velocity flash steam creates a low-pressure area under the disc (Dynamic Pressure) while exerting high pressure on top of the disc in the control chamber. This pressure differential snaps the disc shut against the seat, trapping the live steam.
- Recycle: As the steam in the chamber above the disc condenses, the pressure drops, and the cycle repeats.
Technical Features & Advantages
FlowBiz Thermodynamic Traps are engineered for longevity in the most demanding industrial environments.
- Self-Adjusting Performance: These traps operate across their entire pressure range without requiring any internal changes or manual adjustments.
- Compact & Robust: The simple, lightweight design allows for high condensate discharge capacity relative to its small footprint.
- High-Pressure Resilience: Unlike mechanical float traps, thermodynamic traps are unaffected by water hammer, vibration, or superheated steam.
- All-Weather Reliability: They are naturally resistant to freezing (when installed with the disc in a vertical plane and discharging to atmosphere).
Typical Applications
- Main Steam Headers: Removing condensate from long-distance distribution lines.
- Steam Tracing: Maintaining temperature in process piping.
- High-Pressure Drip Legs: Protecting turbines and compressors from water ingress.
- Laundry & Kitchen Equipment: Ensuring dry steam for rapid heat transfer.
Why Choose FlowBiz Exports?
As a leading Thermodynamic Steam Trap manufacturer in India, FlowBiz Exports delivers "Make in India" precision to global markets. Our traps are tested to ensure zero live steam loss and a long cycle life.
- Manufacturing Excellence: Based in Mumbai, serving Ahmedabad, Pune, and Vapi.
- Global Presence: Trusted by engineers in Dubai, Turkey, Africa, Bangladesh, and Vietnam.
- Complete Range: FlowBiz also provides Gate, Globe, Ball, Butterfly, and PFA Lined Valves, as well as Y-Type and Basket Strainers.
Is your steam system suffering from energy loss or frequent water hammer?
Upgrade to FlowBiz Thermodynamic Steam Traps for a robust, maintenance-free solution. Contact our Mumbai technical team today for a consultation on sizing and pressure ratings for your specific steam headers.
