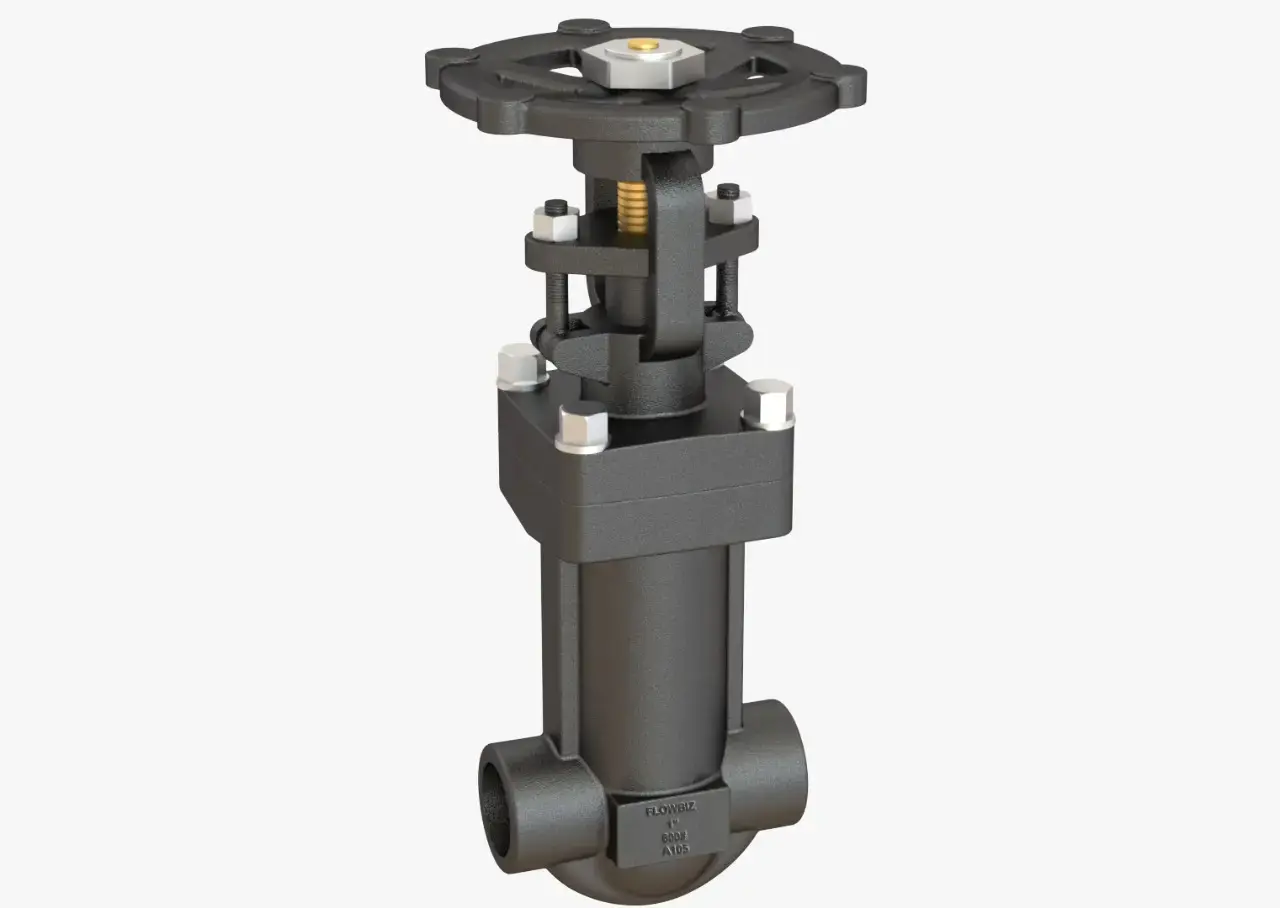

Forged Globe Valves: The Gold Standard for Zero-Leakage Performance
A Forged Globe Valve is designed for high-strength applications where cast valves may fall short. The forging process ensures a denser grain structure, making these valves exceptionally resistant to thermal shock and mechanical fatigue. When equipped with a bellows seal, the valve stem is entirely isolated from the process fluid, creating a physical barrier that guarantees zero external leakage.
Key Design Features of FlowBiz Forged Globe Valves
Our valves are built with a focus on "Design Excellence" and operational safety:
- Integrated Bellows Seal: A multi-walled, stainless steel bellows is welded to the valve stem and the bonnet. This eliminates the reliance on traditional gland packing, which is prone to wear and leakage.
- High-Cycle Durability: Our imported stainless steel bellows are designed for a minimum of 10,000 cycles, providing long-term reliability in frequent-switching applications.
- Rising Stem & Non-Rising Handwheel: This design ensures linear movement of the stem without rotating the handwheel, reducing wear on the bellows and providing clear position indication.
- Metal Back Seat: Acts as a stroke limiter in the fully open position and provides a secondary safety seal.
- Stellite® Hard-Facing: The swivel conical plug and body seat are reinforced with Stellite 6 or 21, offering superior resistance to erosion and high-temperature wire-drawing.
Technical Specifications
Feature | Details |
Size Range | 1/2″ to 2″ (15mm – 50mm) |
Pressure Class | Class 800# to 2500# (Socket/Butt Weld/Screwed) |
Flanged Pressure | Class 150# to 600# |
Material Grades | Forged Steel (A105), Stainless Steel (F304, F316, F316L) |
End Connections | Screwed (NPT/BSP), Socket Weld (SW), Butt Weld (BW) |
Design Standard | API 602 / ASME B16.34 |
Core Industrial Applications
FlowBiz Forged Globe Valves are the definitive choice for critical isolation:
- Thermal Fluid Systems: Preventing leaks in high-temperature oil lines.
- Hazardous Chemicals: Handling toxic or volatile organic compounds (VOCs).
- Steam Headers: High-pressure drip legs and isolation for steam traps.
- Nuclear & Power: Protecting rods, bearings, and seals from contaminants in critical cooling circuits.
Serving India’s Industrial Heartland and Global Projects
As a leading Forged Globe Valve manufacturer in India, FlowBiz Exports supports infrastructure across 50+ industrial cities and global markets.
- Gujarat Reach: Ahmedabad, Vapi, Ankleshwar, Dahej, Gandhidham, and Mundra.
- Maharashtra Presence: Mumbai, Pune, Nashik, Nagpur, and Ambernath.
- Global Export Footprint: Trusted by partners in Dubai, Turkey, Africa (Nigeria, Kenya, South Africa), Bangladesh, Thailand, and Vietnam.
Are fugitive emissions impacting your plant's safety or environmental compliance?
Upgrade to the FlowBiz Forged Bellow Sealed Globe Valve for a maintenance-free, zero-leak solution. Contact our technical team today to discuss your pressure class, material requirements, and specialized automation needs.
