ptfe butterfly valve manufacturer india - Flowbiz

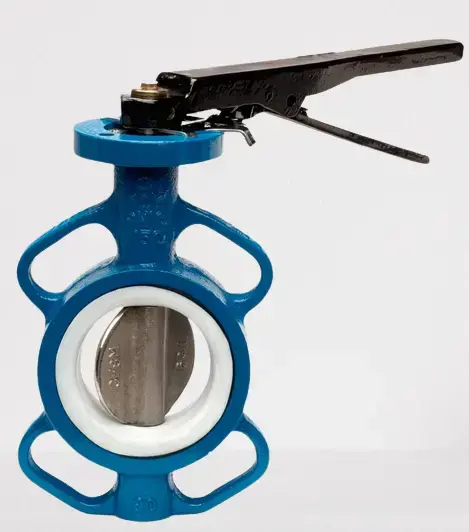

PTFE Sleeve Butterfly Valves: The Standard for Chemical Integrity

A PTFE Sleeve Butterfly Valve utilizes a high-grade Polytetrafluoroethylene (Teflon) seat that entirely sleeves the internal bore. This design is exceptionally popular because it combines the lightweight, compact nature of a butterfly valve with the extreme chemical resistance of PTFE. Whether you are managing acids, alkalis, or high-purity solvents, FlowBiz ensures your media remains uncontaminated and your valve body remains protected.

Understanding the Three Geometric Types

FlowBiz manufactures all three primary configurations to suit varying pressure and temperature needs:

  1. Zero Offset: The stem passes through the centerline of the disc and seat. Ideal for low-pressure, resilient-seated applications.
  2. Double Offset (High Performance): The stem is displaced from the center, creating a cam-like action that reduces seat wear.
  3. Triple Offset: The ultimate "Zero Leak" metal-seated valve for high-pressure, fire-safe environments in the oil and gas sector.

Technical Specifications & Product Details

The FlowBiz PTFE Butterfly Valve is built to exacting global standards to ensure seamless integration into international pipelines.

Feature

Technical Specification

Design Standard

API 609 CAT A

Testing Standard

API 598 (Zero Leakage)

ANSI Class Rating

150# Class

Size Range

50 mm to 400 mm

Body Materials

WCB, CF8, CF8M, Hastelloy, Super Duplex, Alloy 20, LCB

Disc Materials

CF8M, Hastelloy, Super Duplex, Alloy 20 (Optional PFA Coating)

Seat Material

PTFE (Chemically Inert)

End Connection

Wafer End (Space Saving)

Actuation

Manual (Lever/Gear), Pneumatic, or Electric

Why Choose FlowBiz PTFE Butterfly Valves?

  • Superior Isolation: The PTFE sleeve offers dependable, positive isolation across a wide range of corrosive applications.
  • Material Versatility: We offer exotic alloys like Alloy 20 and Super Duplex for the body and disc to survive in the most hostile environments.
  • Low Torque Operation: The self-lubricating properties of PTFE ensure smooth rotation and reduced power requirements for automated actuators.
  • Fire Safe Options: Our metal-seated configurations are specifically designed for the petrochemical industry where fire safety is a non-negotiable requirement.

Core Industrial Applications

FlowBiz PTFE Butterfly Valves are the definitive choice for:

  • Petrochemical & Oil: Refining and hydrocarbon processing.
  • Chemical Plants: Handling aggressive acids, dyes, and pigments.
  • Water Treatment: Desalination and chemical dosing systems.
  • Pharmaceuticals: Aseptic and high-purity fluid transfer.

Your Global Engineering Partner

As a premier PTFE Sleeve Butterfly Valve manufacturer in India, FlowBiz Exports delivers "Make in India" excellence to global markets.

  • Regional Hubs: Serving Mumbai, Ahmedabad, Pune, Vapi, and Surat.
  • International Footprint: Trusted by engineers in Dubai, Turkey, Africa (Nigeria, South Africa, Kenya), Bangladesh, Thailand, and Vietnam.
  • Comprehensive Portfolio: Gate, Globe, Check, Ball, Knife Edge Gate, and PFA Lined Valves.

Is your process media causing frequent seat failures or stem leaks?

Upgrade to the FlowBiz PTFE Sleeve Butterfly Valve for a durable, chemically resistant solution. Contact our Mumbai technical team today for a material selection audit and a customized quote for your facility.
