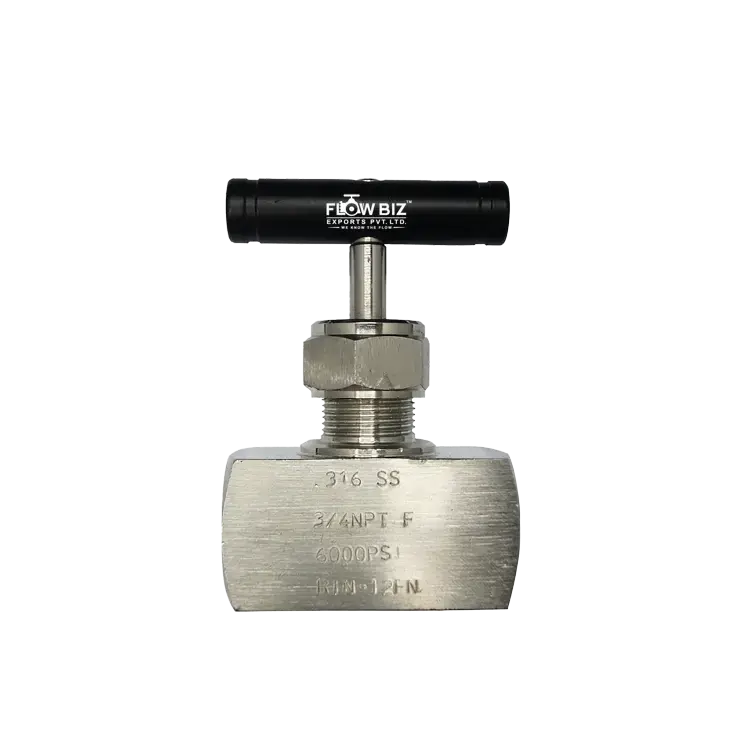

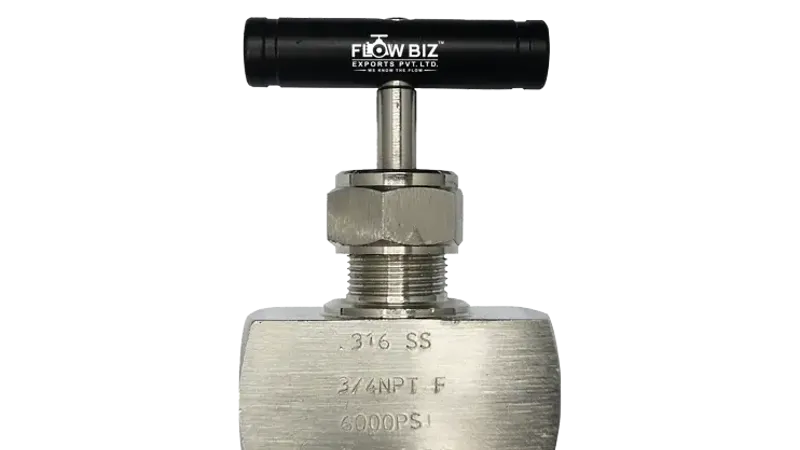

Needle Valves: Engineering the Fine Margin of Flow Control
A Needle Valve is a specialized instrument valve featuring a slender, tapered plunger (the "needle") that fits perfectly into a precision-machined seat. Unlike standard valves designed for quick on/off actions, needle valves are built for accurate throttling, allowing operators to make minute adjustments to fluid or gas flow.
How FlowBiz Needle Valves Work
The internal mechanism relies on a high-thread-count stem which provides a significant mechanical advantage:
- The Orifice: The valve body contains a small, precisely sized opening.
- The Plunger (Needle): As the handle turns, the threaded stem moves the pointed needle into the orifice.
- Linear Regulation: Because the needle is tapered, the flow area decreases gradually. This creates a linear and predictable flow curve that ball or gate valves cannot replicate.
- Sealing: At the fully closed position, the needle's tip makes contact with the tapered seat to provide a bubble-tight shut-off, even at pressures up to 10,000 PSI.
Technical Specifications (2026 Range)
FlowBiz provides a versatile range of needle valves to suit both standard instrumentation and heavy-duty industrial needs.
Feature | Details |
Size Range | 1/4 inch to 2 inches (06mm to 50mm) |
Pressure Rating | Up to 5000 PSI (350 Bar) and 10,000 PSI (700 Bar) |
Material (MOC) | Stainless Steel (CF8/CF8M/316L), Carbon Steel, Brass, Hastelloy |
End Connections | Screwed (NPT/BSP), Flanged, Socket Weld, or Compression |
Design Standard | API 609 / ASME B16.34 compliant testing |
Advantages vs. Disadvantages
The Strengths:
- Micro-Metering Accuracy: Superior for applications requiring low flow rates and exact dosing.
- High-Pressure Safety: The robust, thick-walled construction handles extreme pressures without deformation.
- Compact Footprint: Ideal for panel-mounted instrumentation and tight piping skids.
- Leak-Proof Integrity: Features a locking nut to prevent accidental unscrewing and a high-integrity packing gland.
The Trade-offs:
- Pressure Drop: The restrictive internal path causes a high-pressure loss ( $\Delta P$ ).
- Flow Limitation: Not suitable for high-volume, high-flow applications.
- Particulate Sensitivity: Clean fluids are a must; suspended solids can erode the needle tip and seat.
- Slow Operation: Requires multiple turns to fully open or close, making it unsuitable for emergency rapid-shut-off.
Strategic Industrial Applications
- Oil & Gas: Pressure gauge isolation and chemical injection skids.
- Laboratories: Accurate gas chromatography and sampling systems.
- Power Plants: High-pressure steam sampling and bleed-off lines.
- Refining: Managing volatile or high-purity fluids where dosing is critical.
FlowBiz: Your Partner in Precision Flow Control
As a premier Needle Valve manufacturer in India, FlowBiz Exports delivers "Make in India" precision to the global market.
- Regional Dominance: Trusted across Mumbai, Ahmedabad, Vapi, and Ankleshwar.
- Global Reach: Appreciated by engineers in Dubai, Turkey, Africa, Bangladesh, and Thailand.
- Full Flow Catalog: From Gate and Globe Valves to PFA Lined and Knife Edge Gate Valves, FlowBiz offers a complete project package.
Does your system require pinpoint flow accuracy at high pressures?
Upgrade to the FlowBiz Precision Needle Valve for ultimate control and reliability. Contact our technical team today for a sizing consultation, $C_v$ calculations, and material compatibility support.
