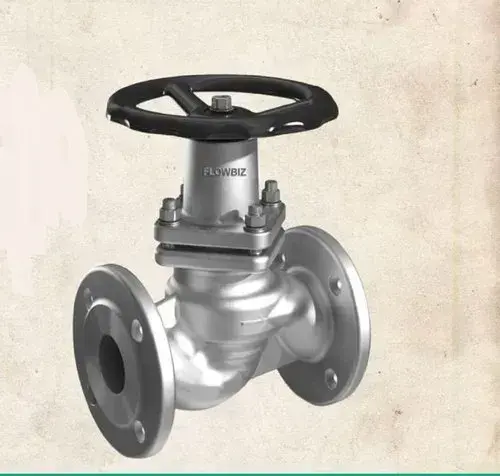

Piston Valves: The Ultimate Guide to Glandless, Leak-Proof Isolation
In the demanding industrial landscape of 2026, traditional valves often fail at the most vulnerable points: the gland packing and the metal seat. FlowBiz Exports Pvt Ltd solves this with the Glandless Piston Valve—a masterpiece of "Make in India" engineering designed for zero-leakage performance in steam, gas, and abrasive fluid applications.
What is a Piston Valve?
A Piston Valve is a linear motion isolation valve that replaces the traditional disc-and-seat mechanism with a stainless steel piston. This piston travels through two resilient, non-metallic sealing rings. This unique design creates a glandless environment, meaning there is no stem packing to tighten or replace, effectively eliminating fugitive emissions.
How it Works:
- The Seal: The seal is achieved by the contact between the circumference of the metal piston and the inner surface of the sealing rings.
- Self-Cleaning: As the piston moves, it "wipes" the sealing rings, clearing away any debris or solid particles.
- Tightness: The valve provides a Class VI (Bubble Tight) shut-off, making it superior for gaseous fluids and high-pressure steam.
Technical Specifications & Capacities
FlowBiz manufactures piston valves to meet international pressure and safety standards, ensuring they can handle the most rigorous "Working Conditions."
Feature | Specification Details |
Body Materials | Cast Iron, Cast Steel (ASTM A216 Gr. WCB) |
Internal Trims | High-Grade Stainless Steel (SS304/SS316) |
Size Range | 1/2" to 16" (15mm to 400mm) |
Pressure Class | ANSI Class 150# and Class 300# |
Max Temperature | Suitable for thermal fluids up to 425°C (with Graphite rings) |
Ends | Flanged, Screwed, or Socket Weld |
The "FlowBiz" Brand Advantage: Special Features
Why do global engineers choose FlowBiz over traditional globe valves?
- Larger Sealing Area: Unlike the narrow "line contact" of a globe valve seat, our piston valves utilize a massive surface area for sealing, ensuring long-term reliability.
- Protection from Erosion: When the valve is in the open position, the critical sealing surfaces of the piston are retracted and unexposed to the high-velocity flow of the media.
- Durability in Dirty Service: Because the piston moves through the rings, it is the best choice for liquids containing solid particles that would otherwise destroy a standard metal-seated valve.
- Low Maintenance: The sealing rings are the only wearing parts. They can be replaced easily in-line, restoring the valve to a "new" condition without expensive machining.
Applications Across Critical Sectors
FlowBiz Piston Valves are the definitive choice for:
- Steam Distribution: Eliminating "steam traps" and energy loss in high-pressure lines.
- Thermal Fluid Systems: Managing hot oils without the fire risk of gland leaks.
- Chemical Processing: Handling corrosive or abrasive slurries.
- Gaseous Media: Perfect for Nitrogen, Oxygen, and high-pressure Compressed Air.
FlowBiz Exports: Your Global Flow Control Partner
As a leading Piston Valve manufacturer in India, FlowBiz Exports supports industrial hubs across the country and delivers engineering excellence to the global stage.
- Domestic Footprint: Trusted in Mumbai, Ahmedabad, Vapi, Surat, and Pune.
- International Reach: Preferred brand in Dubai, Turkey, South Africa, Bangladesh, and Vietnam.
- Full Portfolio: We are your single-source supplier for Gate, Globe, Ball, Butterfly, Knife Edge, and PFA Lined Valves.
Are you tired of frequent maintenance and steam loss in your pipelines?
Protect your system with the FlowBiz High-Performance Piston Valve. Contact our technical experts today for a formal quote, sizing assistance, and a material compatibility audit for your specific application.
