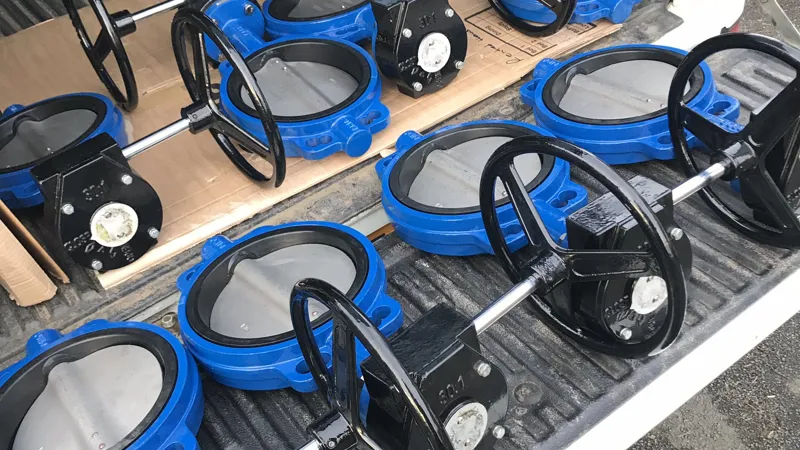

Gear-Operated Butterfly Valves: Precision Control for Heavy-Duty Flow
A Gear-Operated Butterfly Valve integrates a worm-gear reduction unit with the valve stem. This mechanical advantage allows a single operator to open or close large-bore valves with minimal physical effort. Beyond simple isolation, the gear mechanism provides the stability needed for throttling applications, holding the disc firmly in place against the force of the flowing media.
How FlowBiz Gear Operators Work
- Mechanical Advantage: The gearbox converts multiple rotations of the handwheel into a precise $90^\circ$ turn of the valve disc.
- Stable Throttling: Unlike lever-operated valves that can "jump" or slam due to line pressure, the gear operator allows the user to rotate the handwheel to any incremental angle (less than $90^\circ$) for exact flow regulation.
- Position Indication: Every FlowBiz gear unit features a visual indicator on top of the gearbox, showing the exact position of the internal disc (Open/Closed/Throttling).
- Self-Locking: The worm gear design is inherently self-locking, meaning the disc will not move from its set position unless the handwheel is intentionally turned.
Core Industrial Applications
FlowBiz Gear-Operated Butterfly Valves are the definitive choice for:
- Petroleum & Refining: Safe transport and isolation of hydrocarbons.
- Water & Wastewater: Managing large-volume flow in treatment plants and municipal supply.
- Mining & Slurry: Handling abrasive sludge with high torque requirements.
- Chemical Manufacturing: Regulating the flow of diverse chemical reagents.
- Food & Beverage: Throttling and isolation in hygienic processing lines.
Technical Specifications (2026 Range)
FlowBiz ensures that both the valve body and the gear unit are built to withstand harsh environments:
Feature | Details |
Valve Types | Wafer, Lug, and Double Flanged |
Size Range | 2" to 72" (Large bore specialty) |
Gear Housing | Weatherproof IP65/IP67 Rated Cast Iron or Aluminum |
Handwheel | Heavy-duty Carbon Steel or Stainless Steel |
Design Standards | API 609 / AWWA C504 |
Pressure Rating | PN10, PN16, Class 150# |
Why Choose FlowBiz Gear-Operated Valves?
- Effortless Operation: Reduces operator fatigue and improves site safety.
- Longevity: The gear mechanism protects the stem from sudden torque shocks.
- Low Maintenance: Factory-lubricated gearboxes are sealed for life against dust and moisture.
- Fast Delivery: As a leading manufacturer, we maintain a standard stock of gear operators for immediate dispatch across India and global markets.
FlowBiz Exports: Your Global Partner in Flow Control
As a top-tier Gear-Operated Butterfly Valve manufacturer in India, FlowBiz Exports delivers "Make in India" quality to the global stage.
- Domestic Hubs: Serving Mumbai, Ahmedabad, Vapi, Surat, and Pune.
- International Footprint: Trusted by engineers in Dubai, Turkey, Africa, Bangladesh, and Thailand.
- Comprehensive Range: We also specialize in Gate, Globe, Check, Ball, and PFA Lined Valves.
Does your system require precise throttling that a standard lever cannot provide?
Upgrade to the FlowBiz Gear-Operated Butterfly Valve for superior stability and ease of use. Contact our technical team today for a formal quote, torque data sheets, and assistance with sizing for your specific pipeline project.
