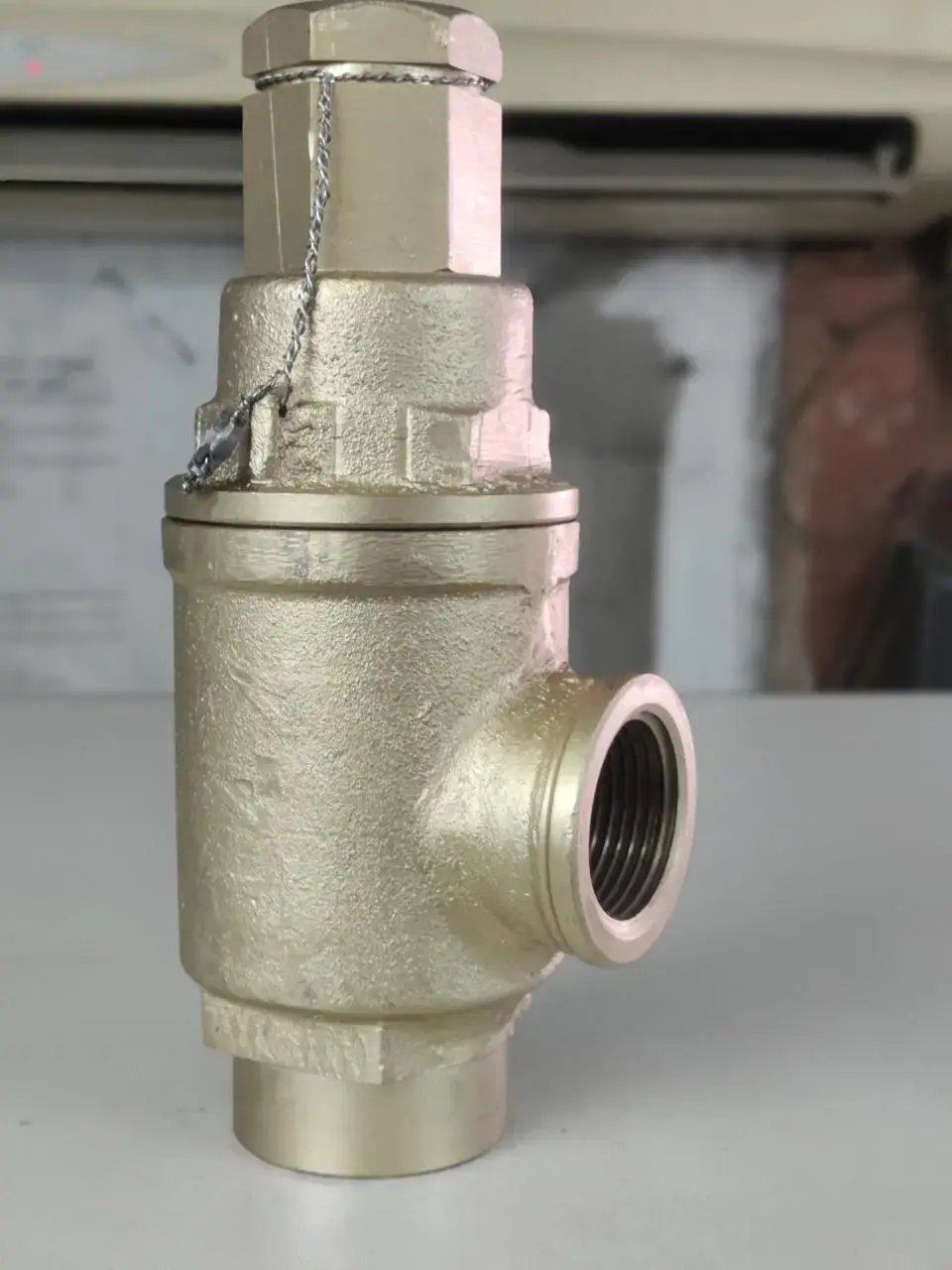

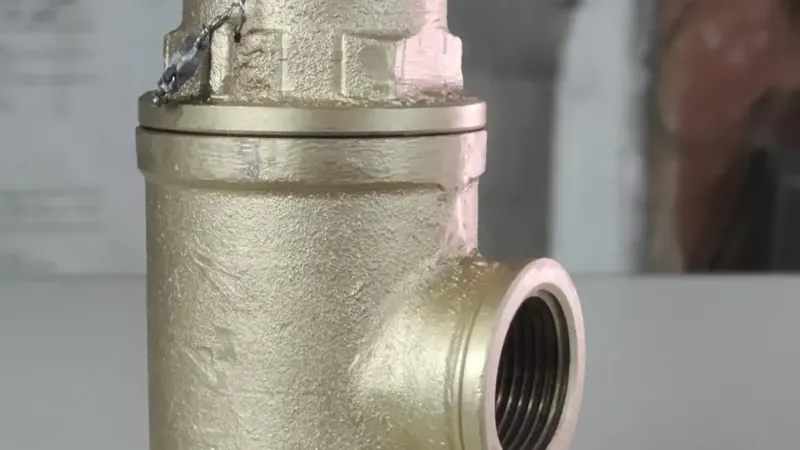

Safety Valves: The Ultimate Fail-Safe for Pressure Systems
A Safety Valve serves as the final line of defense. It is designed to actuate automatically when the internal pressure or temperature of a system exceeds pre-defined safety limits (Set Pressure). By rapidly exhausting the excess media, it prevents catastrophic vessel failure or explosions.
The Two Primary Pilot-Operated Designs
FlowBiz engineers safety valves in two main configurations to suit specific pressure ranges:
- Diaphragm Type: Generally utilized for lower-pressure applications. These feature a "balanced" action and are commonly used as substitute valves in liquid systems.
- Piston Type: Engineered for high-pressure industrial environments. The piston design provides a robust mechanical seal capable of handling extreme force.
Safety Valve vs. Relief Valve: Understanding the Difference
While both are pressure relief devices, their operational philosophy is distinct:
Feature | Relief Valve | Safety Valve |
Primary Goal | Pressure Management/Control | Emergency Failure Protection |
Opening Style | Proportional: Opens gradually as pressure rises. | Immediate: Pops fully open instantly (Full Lift). |
Common Media | Fluids and compressed air systems. | Steam, Gases, and Vapors. |
Function | Returns system to preset pressure. | Prevents disaster during system failure. |
Critical Installation Guidelines
To ensure the FlowBiz Safety Valve operates as intended during an emergency, strict adherence to installation protocols is required:
- Standing Orientation: Valves must be installed in a vertical (upright) position with the bonnet/spring section pointing upwards.
- No Isolation: It is strictly prohibited to place a shut-off or separation valve between the safety valve and the system it protects.
- Proximity: Minimize the distance between the valve and the system. Avoid long pipe runs, excessive fittings, or bends, as these cause pressure drops that can interfere with the valve's "set pressure" accuracy.
- Outlet Safety: Never invert the safety valve outlet. The discharge path should be clear and directed to a safe area to prevent injury during a blow-off.
Serving India’s Industrial Safety Needs
As a top-tier manufacturer, FlowBiz Exports provides safety-critical equipment to every major industrial hub:
- Gujarat Reach: Ahmedabad, Vapi, Ankleshwar, Dahej, Gandhidham, and Mundra.
- Maharashtra Presence: Mumbai, Pune, Nashik, Nagpur, and Ambernath.
- Key Sectors: Power Plants, Chemical Refineries, Textile Mills, and Pharmaceutical Labs.
