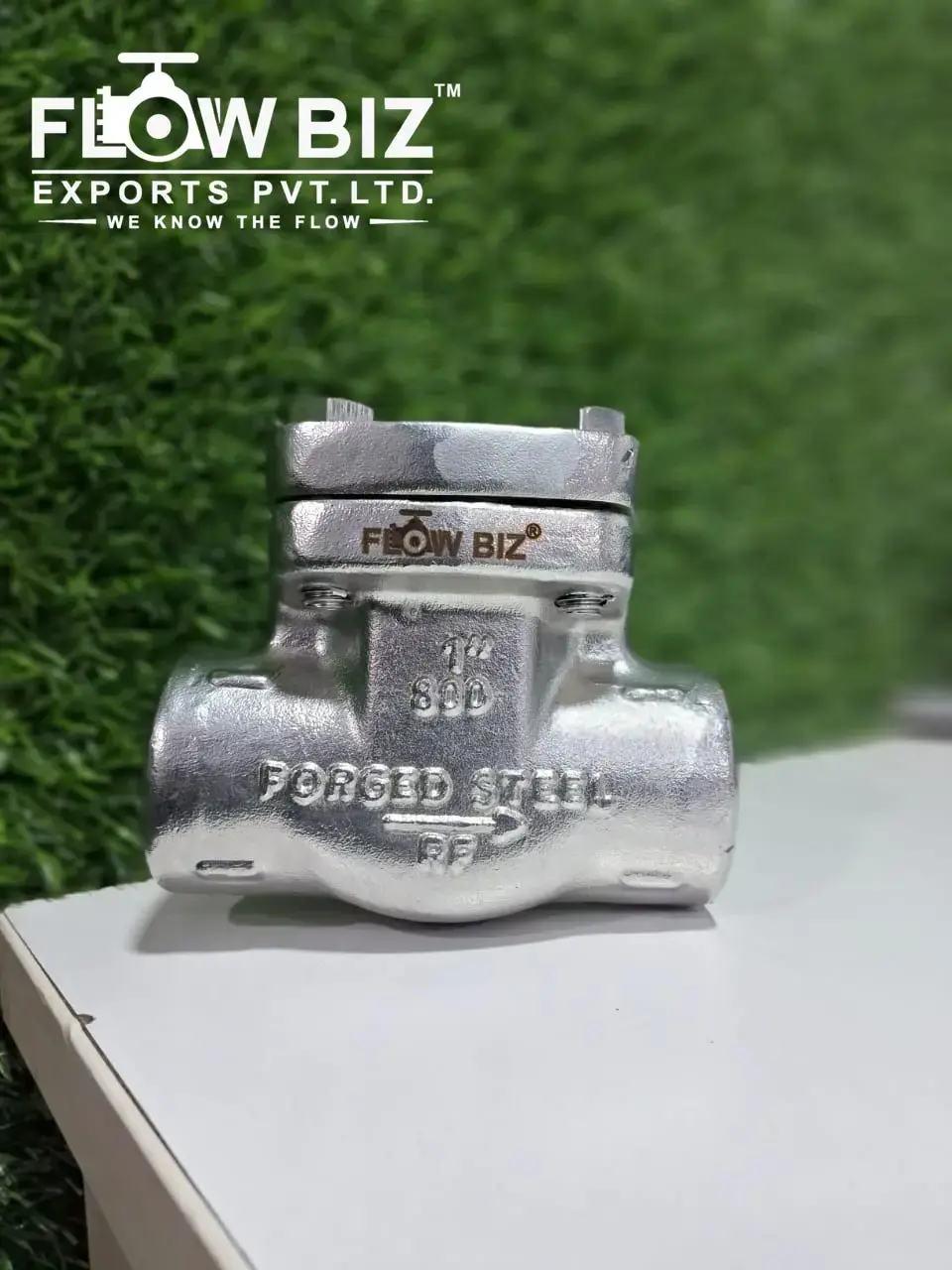

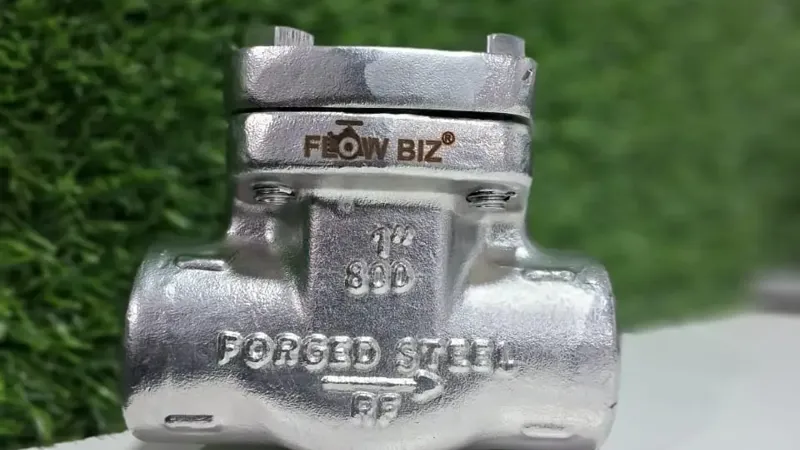

Forged Steel Lift Check Valves: Precision Backflow Prevention
A Forged Steel Lift Check Valve is a self-acting non-return valve that automatically prevents flow reversal. Unlike swing check valves, the lift check design uses a guided piston or disc that "lifts" off the seat when upstream pressure overcomes the weight of the disc (or spring tension). This design is exceptionally reliable for high-pressure steam, air, gas, and liquid services where rapid closure is required.
The FlowBiz Engineering Advantage
- API 602 Compliance: Designed specifically for high-integrity small pipelines (up to 50NB), ensuring safety and interchangeability in global projects.
- Superior Sealing: Features hard-faced trim material and precision-lapped seats to provide a bubble-tight, faultless seal even under fluctuating pressures.
- Zero Porosity: The forging process (using A105 or Stainless Steel) eliminates the internal voids common in castings, significantly increasing the valve's resistance to thermal shock and mechanical fatigue.
- Maintenance Efficiency: For our accompanying Gate and Globe types, a Lapped Back Seat facility allows for the safe replacement of gland packing while the valve is in the full open position under pressure.
Technical Specifications (2026 Product Range)
FlowBiz provides a comprehensive range of forged materials to suit diverse chemical and thermal environments:
Feature | Details |
Size Range | 10mm to 50mm (1/4" to 2") |
Pressure Rating | ASME 800# |
Design Standard | API 602 |
Testing Standard | API 598 (High-pressure hydro and air testing) |
Material (MOC) | Carbon Steel (A105), Stainless Steel (F304, F316, F304L, F316L), Alloy Steel (LF2, F11, F22, F51) |
End Connections | NPT/BSP Screwed, Socket Weld (SW) |
Bonnet Design | Bolted Bonnet (BB) or Seal Welded Bonnet |
Salient Features
- Port Options: Available in both Full Port (minimizes pressure drop) and Regular Port designs.
- Robust Internals: Features a solid wedge/disc and spiral-wound gaskets for high-integrity sealing.
- Customizable Packing: High-purity Graphite packing is utilized for high-temperature resilience.
- 3rd Party Inspection: We welcome inspection by 3rd party agencies (TUV, BV, SGS) or direct client representatives to verify our "Make in India" quality.
Strategic Regional Supply & Manufacturing
FlowBiz is a dominant Forged Steel NRV manufacturer across India's most vital industrial clusters:
- Gujarat Operations: Vapi, Ankleshwar, Dahej, Ahmedabad, Gandhidham, and Mundra.
- Maharashtra Presence: Mumbai, Pune, Nashik, Nagpur, and Ambernath.
- Global Export Hub: Serving critical sectors in Dubai, Turkey, South Africa, Vietnam, and Bangladesh.
Is your high-pressure system protected by a reliable backflow preventer?
Upgrade to the FlowBiz Forged Steel Lift Check Valve for unmatched durability and sealing integrity. Contact our technical team today for a formal quote, Material Test Reports (MTRs), and assistance with selecting the right forged alloy for your specific process conditions.
