Sight Glass Indicators: Visual Monitoring for Industrial Systems

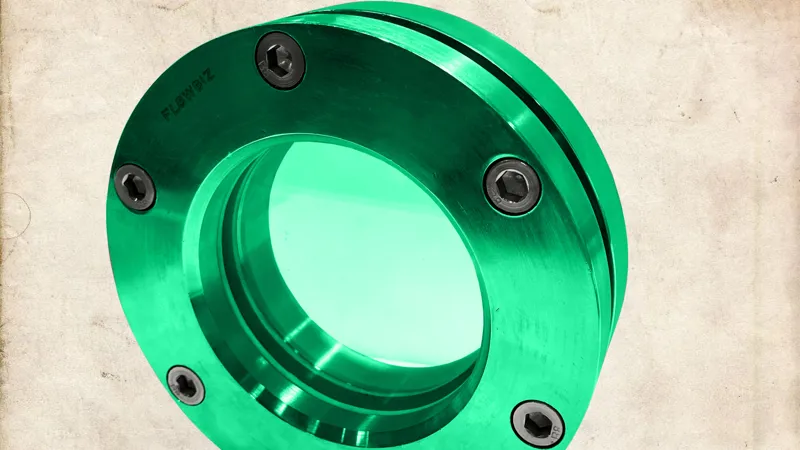

A Sight Glass (or Sight Flow Indicator) is a device installed in a pipe or on a pressure vessel to provide a visual observation of the media. By utilizing high-strength glass windows, plant managers can detect blockages, verify flow direction, and monitor the color or phase of a fluid without disrupting the closed system.
Engineering Features of FlowBiz Sight Glass
- High-Grade Borosilicate Glass: Our standard windows are made from thick, thermally toughened borosilicate glass. This material offers outstanding light transmission and is resistant to thermal shock.
- Thermal Endurance: Designed to operate reliably in conditions up to 500°F (260°C), making them suitable for steam and high-temperature chemical lines.
- Robust Body Materials: Available in Stainless Steel (CF8/CF8M), Carbon Steel (WCB), and specialized PFA-lined versions for corrosive environments.
- Versatile Designs: We manufacture Double Window, Full View (360°), and Flapper/Drip Tube indicators to suit various flow velocities and orientations.
Technical Specifications (2026 Range)
Feature | Details |
Type | Double Window, Single Window, Full View, Lined Sight Glass |
Size Range | 1/2" to 12" (15mm to 300mm) |
Pressure Rating | ANSI 150#, 300#, and PN10/PN16 |
Glass Material | Toughened Borosilicate (Standard) / Soda Lime |
End Connections | Flanged, Screwed (NPT/BSP), or Socket Weld |
Internal Indicators | Plain, Flapper (for gas/liquid), or Drip Tube (for vertical flow) |
Critical Industrial Applications
FlowBiz Sight Glasses are indispensable in sectors where visual confirmation is a prerequisite for safety:
- Chemical & Petrochemical: Monitoring acid/alkali flow and detecting phase separation.
- Pharmaceutical & Biotech: Verifying sterility and cleanliness in high-purity lines.
- Food & Beverage: Ensuring consistent product color and clarity during processing.
- Wastewater Treatment: Detecting solid accumulation and monitoring aeration levels.
- Oil & Gas: Inspecting lubrication lines and verifying flow in fuel systems.
The FlowBiz Advantage: Beyond the Window
As a top-tier manufacturer, FlowBiz Exports offers a complete package of flow control accessories. Our "Make in India" approach ensures that every sight glass is tested for pressure integrity and clarity.
- Quality Assurance: Every window is inspected for bubbles, scratches, and stress points to prevent failure under pressure.
- Corrosion Resistance: For highly aggressive chemicals, we offer FEP/PFA Lined Sight Glasses, ensuring zero metallic contact with the media.
- Global Trust: We serve industrial hubs in Mumbai, Ahmedabad, and Vapi, with a strong export presence in Dubai, Turkey, Africa, and Southeast Asia.
Do you need a reliable way to monitor your process without stopping the line?
Install the FlowBiz High-Performance Sight Glass for clear, safe, and durable visual monitoring. Contact our technical team today for a formal quote, custom glass thickness calculations, and assistance with selecting the right internal indicator (Flapper vs. Drip Tube) for your flow conditions.
