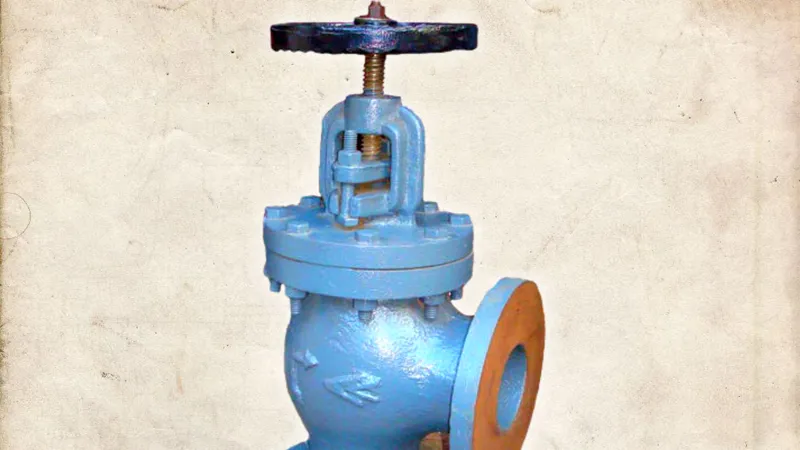

Angle Globe Valves: Space-Efficient Flow Regulation

An Angle Globe Valve is a modification of the standard "Straight" globe valve. While traditional valves have inlet and outlet ports in a straight line, the angle valve features ports at a perpendicular ($90^\circ$) orientation. This design allows the fluid to perform a single $90^\circ$ turn within the valve body, effectively replacing a standard elbow fitting and an isolation valve with a single component.

How the FlowBiz Angle Globe Valve Works

• Linear Motion: The valve uses a plug-shaped disc that moves linearly along the centerline of the fluid flow.
• Sealing Mechanism: The disc lands on a soft or conical seat. As the handwheel is turned, the disc moves downward to seal the orifice.
• Directional Change: The medium enters at the bottom and exits at the side (or vice versa), allowing the valve to manage the flow direction while simultaneously reducing pressure.

Stem Motion Modes

FlowBiz offers two distinct stem configurations based on your space and accessibility needs:

1. Rising Stem: The stem moves up and down while the handwheel remains at a fixed height. This is ideal for restricted vertical spaces.
2. Lifting Rotating Stem: The handwheel and stem rotate and rise together. In this design, the nut is located on the valve body, providing a robust mechanical feel for manual operation.

Technical Specifications (2026 Range)

Features and Benefits

• Simplified Piping: Eliminates the need for a $90^\circ$ elbow, reducing the number of joints and potential leak points in your system.
• Anti-Corrosion & Anti-Friction: Built with high-grade alloys that resist the erosive forces of high-velocity fluids.
• Efficient Sealing: The fine-lapped conical seating ensures a leak-proof shut-off even in demanding chemical applications.
• Durability: The use of rugged steel for the sealing cover provides an extended service life and high resistance to wear.

Serving India’s Industrial Hubs

As a leading Angle Globe Valve manufacturer in India, FlowBiz Exports ensures a seamless supply chain to major industrial centers:

• Gujarat: Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, and Bharuch.
• Maharashtra: Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, and Nagpur.
• South & Central India: Indore, Bhopal, Chennai, Coimbatore, and Salem.

Is your piping layout restricted by space or excessive elbow fittings?

Streamline your system with the FlowBiz Angle Globe Valve. Contact our technical team today for a formal quote, CAD drawings, and assistance with calculating the coefficient of discharge ($C_d$) for your specific application.
