Wafer Type Ball Valves: Compact, Economical, and High-Performance

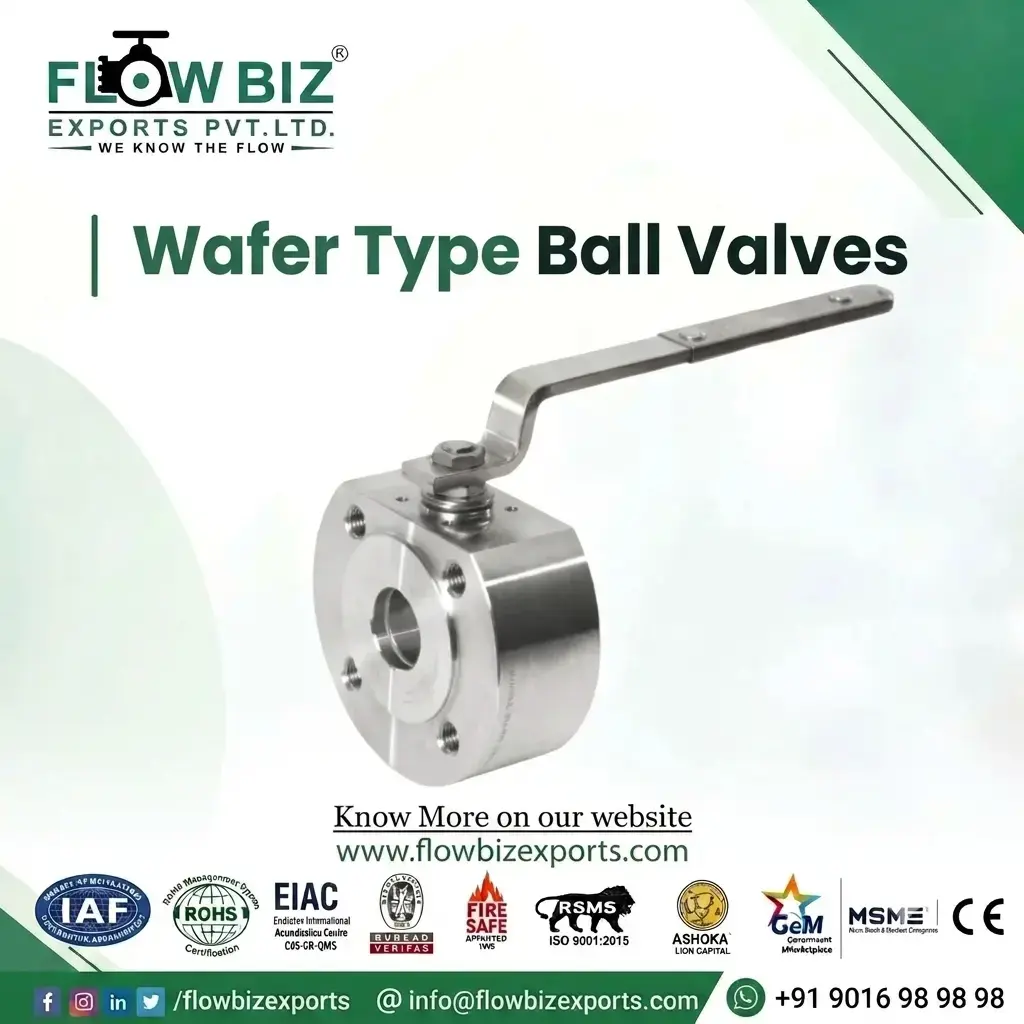

A Wafer Type Ball Valve is a "short-pattern" valve designed to be sandwiched between two pipeline flanges using a single set of long bolts (studs) that span the entire width of the valve. It offers all the sealing benefits of a standard flanged ball valve but with a fraction of the weight and face-to-face length.
Why Choose Wafer Type over Standard Flanged Valves?
- Space Saving: Ideally suited for applications where space is a prime constraint. Its slim profile allows for denser piping layouts.
- Economic Advantage: Because the valve uses less material (body metal), it is significantly more cost-effective and lightweight, reducing the overall stress on the piping supports.
- Visual Status: The handle aligns perfectly with the flow path when open and sits perpendicular when closed, providing immediate visual verification of the valve's status.
- Rapid Operation: With a simple $90^\circ$ rotation, the valve can be fully opened or closed, making it ideal for quick isolation.
Technical Features & Design
FlowBiz wafer ball valves are engineered for "light-duty" to "medium-duty" industrial service with a focus on reliability:
- Installation Method: Specifically designed to be bolted between flanges (ANSI 150# or PN16 standards).
- Maintenance Friendly: The simplified design ensures that seals and seats can be inspected and replaced with minimal downtime.
- Secure Sealing: Despite the slim body, the internal ball and seat mechanism provide a dependable, leak-proof seal.
Technical Specifications (2026 Product Range)
Feature | Details |
Size Range | Standard sizes available to fit most process lines |
Body Material | Stainless Steel (CF8/CF8M), Carbon Steel (WCB), or Forged Steel |
Design Standard | ASME B16.34 / API 6D |
Pressure Rating | Class 150#, Class 300#, PN10, PN16 |
Port Opening | Full Bore and Regular Bore options |
Operation | Manual Lever, Gear, or Automated (Pneumatic/Electric) |
Strategic Industrial Applications
FlowBiz Wafer Type Ball Valves are the preferred choice in:
- Process Skids: Where equipment must be kept as compact as possible.
- Transport Vessels: Ideal for mobile tanks where weight reduction is a priority.
- Chemical Reactors: Providing reliable isolation in tight manifold systems.
- Utilities: Managing water, air, and low-pressure steam in industrial facilities.
Serving India’s Industrial Backbone
As the top Wafer Type Ball Valve manufacturer in India, FlowBiz Exports ensures rapid delivery to every major industrial hub:
- Gujarat: Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, and Bharuch.
- Maharashtra: Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, and Kolhapur.
- Central & South India: Indore, Dewas, Bhopal, Chennai, Coimbatore, and Salem.
Is your piping project limited by space or budget constraints?
Upgrade to the FlowBiz Wafer Type Ball Valve for an economical, space-saving solution without sacrificing performance. Contact our technical team today for a formal quote, face-to-face dimensions, and assistance with selecting the right material for your media.
