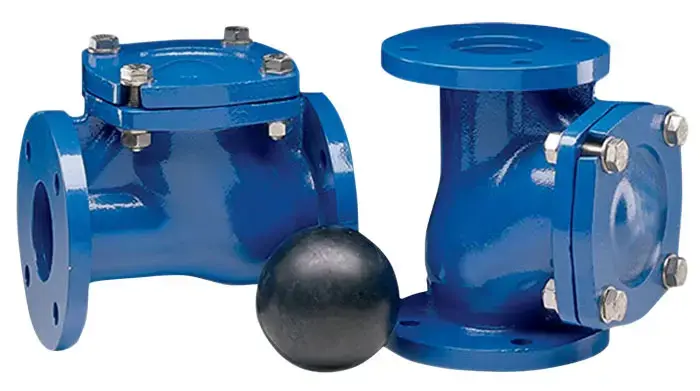

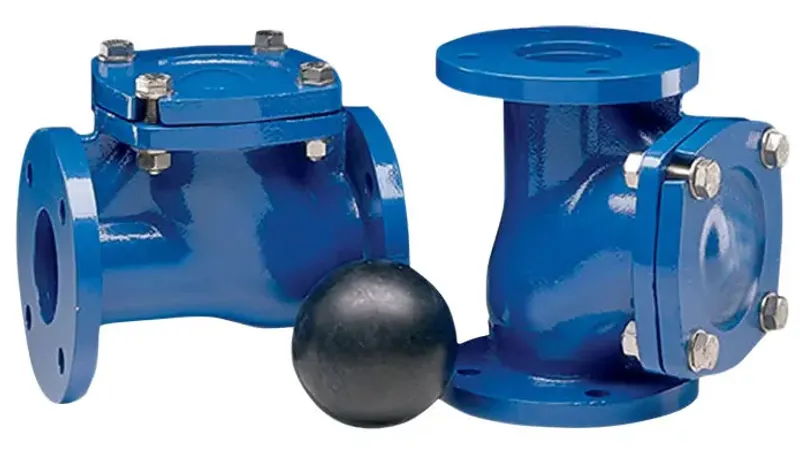

Ball Check Valves: The Self-Cleaning Non-Return Solution
A Ball Check Valve operates using a weighted ball that sits on a conical seat. When the pump starts, the fluid pressure lifts the ball into a lateral chamber, allowing for a completely unobstructed flow. When the pump stops, the ball returns to the seat, creating a leak-proof seal against backflow.
The FlowBiz Engineering Advantage
- Self-Cleaning Design: As the ball rotates during operation, it naturally clears any debris or sediments from the seat. This makes it the premier choice for sewage and slurry applications where standard swing check valves might clog.
- Low Head Loss: The full-bore design ensures that the media flows smoothly with minimal turbulence, reducing energy costs for your pumping system.
- Customizable Ball Weights: * Heavier Balls: Recommended for systems prone to water hammer to ensure rapid closure.
- Lighter/Faded Balls: Ideal for systems with lower pumping capacity to ensure the valve opens fully even at low flow rates.
- Abrasive Resistance: For mining or chemical slurries, we offer Polyurethane-coated balls that provide exceptional wear resistance and long-term tightness.
Technical Specifications (2026 Product Range)
Feature | Details |
Size Range | Standard sizes for municipal and industrial pipelines |
Body Materials | Ductile Iron (DI) or Acid-Resistant Stainless Steel (CF8M) |
Ball Material | NBR Coated, Aluminum, or Polyurethane |
Sealing Profile | Conically machined seat for precision alignment |
Pressure Rating | PN10, PN16, Class 150# |
End Connections | Flanged or Screwed (NPT/BSP) |
Strategic Industrial Applications
FlowBiz Ball Check Valves are designed to handle "difficult" media across various sectors:
- Wastewater & Sewage: Handling raw sewage and viscous liquids without clogging.
- Mining & Slurry: Managing abrasive mineral tailings with polyurethane balls.
- Chemical/Process: Utilizing acid-resistant stainless steel for corrosive reagents.
- Fire Fighting & HVAC: Reliable backflow prevention in utility and safety systems.
- Agriculture: Efficient water distribution and irrigation pumping stations.
FlowBiz Exports: Your Global Partner in Flow Control
As a top-tier Ball Check Valve manufacturer in India, FlowBiz Exports delivers "Make in India" precision to the most critical industrial hubs.
- Regional Excellence: Serving Mumbai, Ahmedabad, Vapi, Pune, and Surat.
- Global Footprint: Trusted by engineers in Dubai, Turkey, Africa, Southeast Asia, and Europe.
- Complete Portfolio: We are a single-source supplier for Gate, Globe, Butterfly, PFA Lined, and Knife Edge Gate Valves.
Is your pumping system suffering from noise or frequent clogs?
Upgrade to the FlowBiz High-Quality Ball Check Valve for a maintenance-free, self-cleaning solution. Contact our technical team today for a formal quote, ball weight optimization data, and assistance with material selection for your specific media.
