Ball Float Steam Traps: Continuous Condensate Discharge
A Ball Float Steam Trap is a mechanical device that operates on the principle of buoyancy. Unlike intermittent traps, the ball float design provides continuous discharge, making it the primary choice for heat exchangers and process heating applications where the rate of heat transfer must remain high and consistent.
How the FlowBiz Mechanism Works

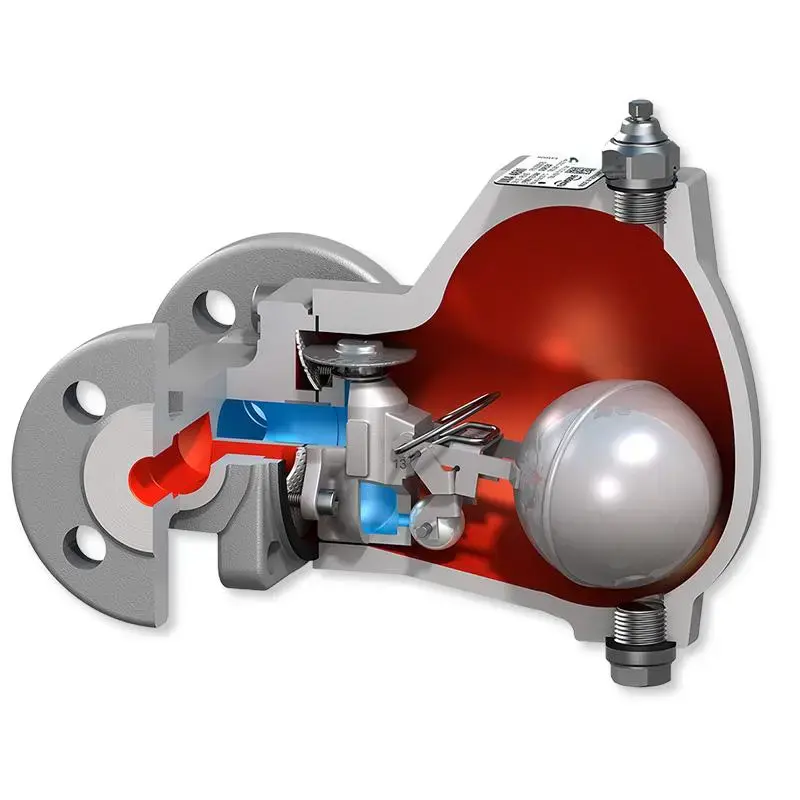

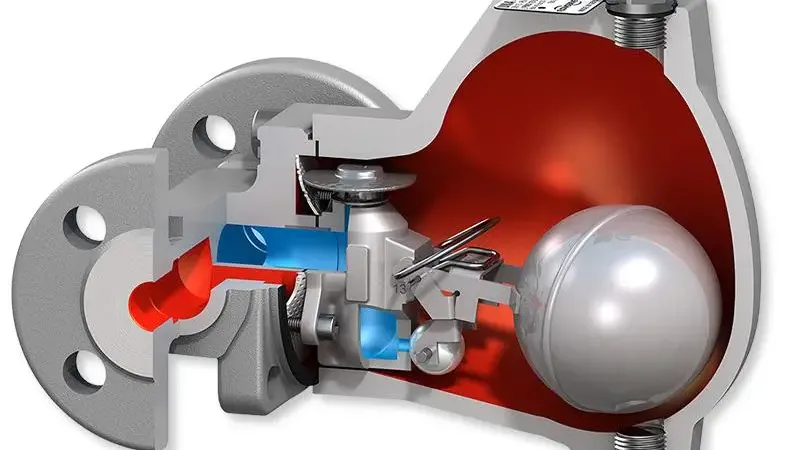

- The Buoyancy Principle: As condensate enters the trap, the stainless steel ball float rises. This upward movement is connected via a lever to the valve head, opening the main orifice to discharge condensate.
- Continuous Flow: Because the float responds immediately to the liquid level inside the trap body, it discharges condensate as soon as it is formed, maintaining the steam temperature in the equipment.
- Integrated Air Venting: Every FlowBiz float trap includes an automatic thermostatic air vent. This allows air and non-condensable gases to escape during start-up and normal operation, preventing "air binding" and ensuring rapid system warm-up.
Strategic Advantages of FlowBiz Float Traps
- Immediate Response: It removes condensate at steam temperature, regardless of sudden pressure changes or fluctuating flow rates.
- Immunity to Water Hammer: The robust internal construction is designed to withstand the kinetic shocks of water hammer, a common issue in large steam lines.
- Steam Lock Release (SLR): Our traps are uniquely suited for applications where "steam locking" occurs, ensuring the system never stalls.
- High Capacity: Offers a high discharge capacity relative to its compact physical size, saving installation space.
Technical Specifications (2026 Range)
Feature | Details |
Body Material | Cast Iron, Cast Steel (WCB), or Stainless Steel |
Internals | Corrosion-Resistant Stainless Steel (AISI 304/316) |
Size Range | 1/2" to 2" (Standard) / Large bore available on request |
Pressure Rating | PN16, PN25, Class 150#, Class 300# |
End Connections | Flanged, Screwed (NPT/BSP), or Socket Weld |
Max Temperature | Designed for high-pressure saturated steam environments |
FlowBiz Exports: A Global Leader in Steam Solutions
While we are a dominant Ball Float Steam Trap manufacturer in India, our engineering expertise extends to a massive range of flow control technologies. Our products are trusted and appreciated by overseas customers in Dubai, Turkey, Africa (Nigeria, Kenya, South Africa), Vietnam, and Thailand.
Our Expanded Valve Portfolio:
- Butterfly Valves: Triple Offset, PTFE Seated, Pharma, and Metal Seated designs.
- Specialty Valves: Double Flange, Offset Disc, and MS Fabricated Damper Valves.
- Process Valves: Gate, Globe, Ball, and PFA Lined Valves.
Serving India’s Industrial Hubs
FlowBiz Exports maintains a high-speed supply chain to every major industrial corridor:
- Maharashtra: Mumbai, Pune, Nashik, Nagpur, Ambernath, and the Konkan region.
- Gujarat: Ahmedabad, Vapi, Ankleshwar, Dahej, Gandhidham, and Kutch.
- Central & South India: Aurangabad, Satara, Baramati, and beyond.
Is your steam system losing efficiency due to slow condensate removal or air binding?
Upgrade to the FlowBiz Ball Float Steam Trap for immediate, continuous discharge and superior thermal efficiency. Contact our technical team today for a formal quote, discharge capacity charts, and assistance with selecting the correct trap for your specific heat load.
