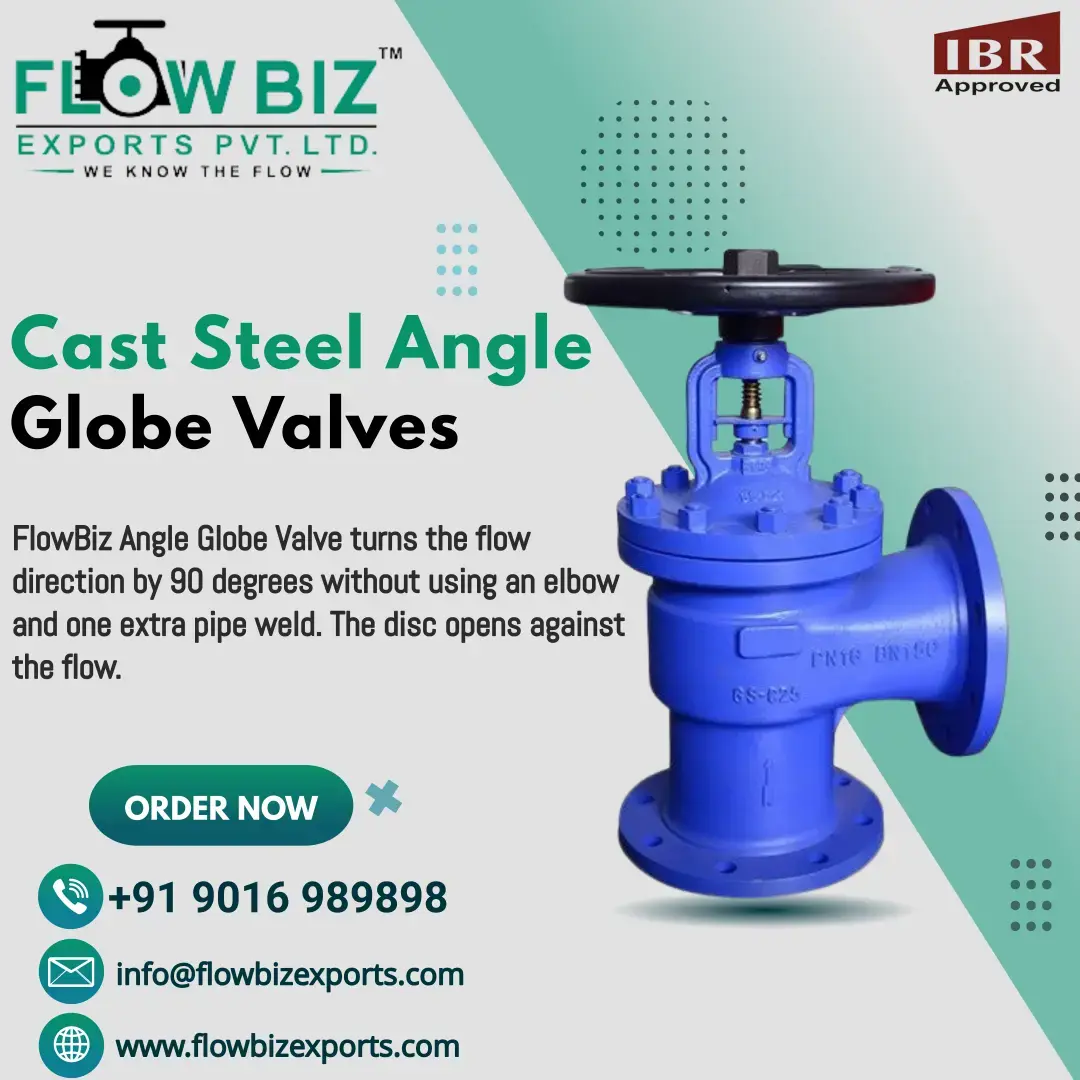

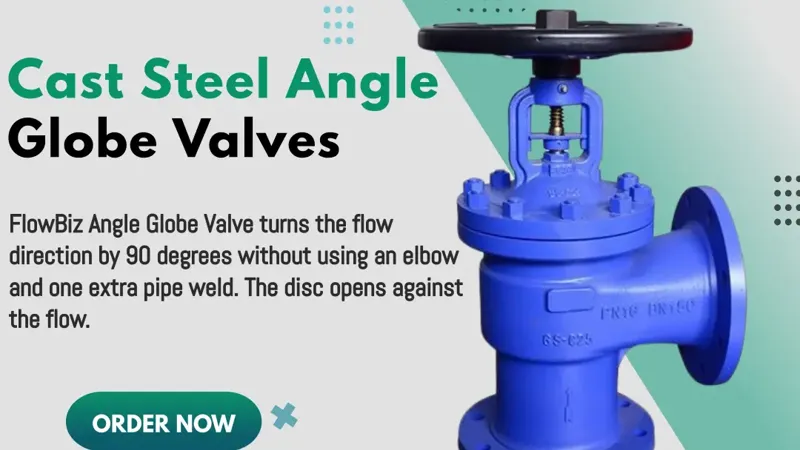

Cast Steel Globe Valves: Robust Control & Isolation
The FlowBiz Globe Valve features an Outside Screw & Yoke (OS&Y) design with a rising stem. This configuration ensures that the stem threads are not in contact with the media, preventing corrosion and allowing for easy lubrication. The robust Bolted Bonnet construction provides a secure, leak-proof seal and allows for straightforward maintenance.
Technical Specification Overview
Every FlowBiz Cast Steel Globe Valve is manufactured using high-integrity materials to ensure performance under thermal and mechanical stress:
Component | Material Specification |
Product Standard | BS 5160 / DIN 2401 |
Body & Bonnet | Cast Steel (ASTM A 216 Gr. WCB) |
Seat & Disc | Renewable Design (for extended service life) |
Trim Material | Stainless Steel (AISI 410 / 13% Cr) |
Stem Type | Rising Stem, Outside Screw & Yoke |
Handwheel | Cast Iron (IS 210 Gr. FG 200) |
Key Design Features
- Throttling Capability: Unlike gate valves, the FlowBiz Globe Valve is specifically designed to regulate flow and pressure precisely.
- Renewable Trim: The renewable seat and disc design allow you to replace wear-prone components without discarding the entire valve body, significantly reducing long-term OPEX.
- Superior Sealing: The WCB Cast Steel body provides the necessary strength for high-temperature saturated steam and petroleum applications.
- Ease of Operation: The large-diameter Cast Iron handwheel ensures smooth, manual torque application even at high differential pressures.
Strategic Industrial Applications
- Boiler Feed Water: Regulating flow in high-pressure steam systems.
- Oil & Gas: Reliable isolation in refineries and storage terminals.
- Chemical Processing: Handling non-corrosive and moderately aggressive media.
- HVAC & Power: Thermal fluid control and condensate return lines.
FlowBiz Exports: Your Partner in Flow Excellence
Based in the industrial heart of India, FlowBiz Exports Pvt Ltd is a premier manufacturer and supplier of flow control accessories. Our "Make in India" precision is trusted across key domestic sectors and international markets.
Our Comprehensive Portfolio:
- Check Valves: Swing Check, NRV, and Ball Check.
- Isolation Valves: Gate, Ball, Butterfly, and Plug Valves.
- Specialty Solutions: PFA/FEP Lined Valves, Knife Edge Gate, and Diaphragm Valves.
- Filtration: Y-Type, Basket, and Conical Strainers.
Does your system require a valve that can handle both tight shut-off and precise throttling?
The FlowBiz Cast Steel Globe Valve is the definitive answer. Contact our technical team today for a formal quote, pressure-temperature rating charts, and assistance with selecting the right size for your pipeline.
