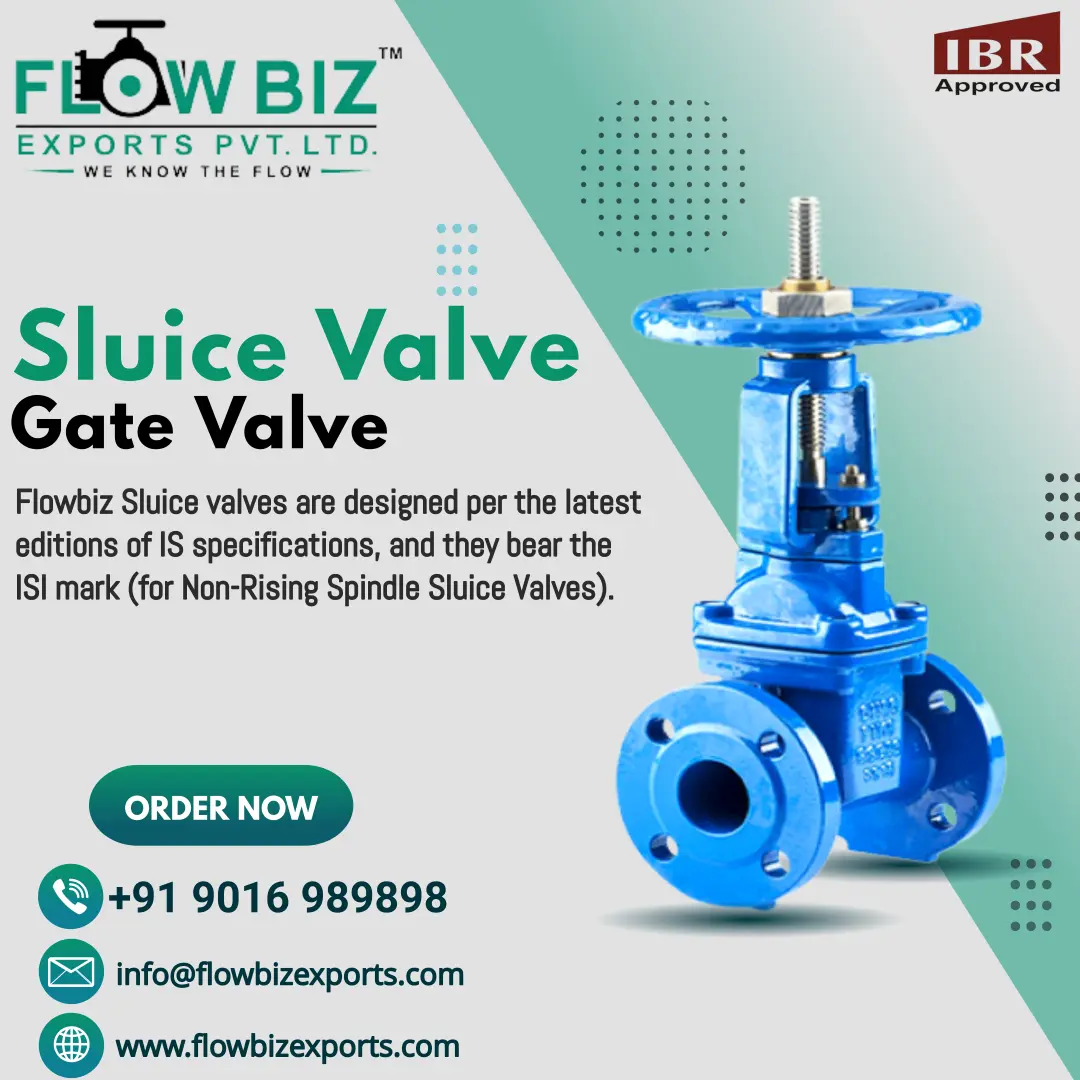

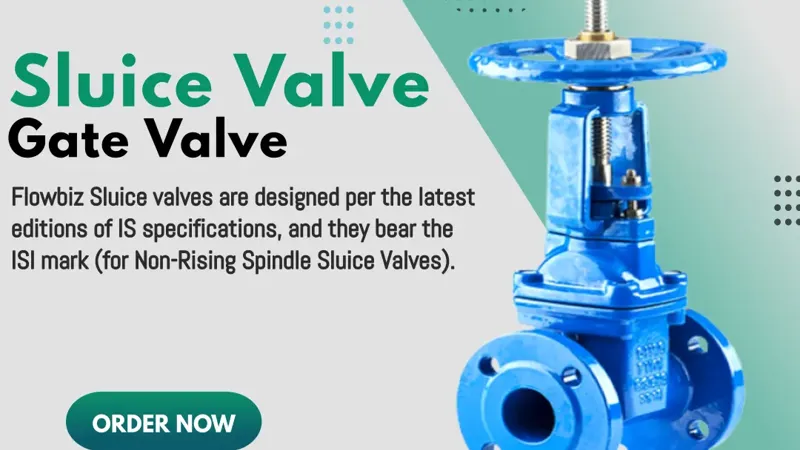

Sluice Gate Valves: The Heavyweight of Fluid Isolation
Commonly referred to as a Sluice Valve in waterworks, this gate valve utilizes a robust wedge-shaped disc that moves perpendicular to the flow. When fully open, the gate retracts completely into the bonnet, providing a full-bore, uninterrupted flow path that minimizes pressure drop and prevents the accumulation of debris.
Salient Engineering Features
- Full Bore Design: Ensures maximum flow capacity with zero turbulence, ideal for gravity-fed systems and drainage pipes.
- Flexible & Solid Wedge Patterns: Variants are engineered to handle thermal expansion and high-pressure differentials without sticking or jamming.
- OS&Y Construction: The Outside Screw and Yoke (OS&Y) with a rising spindle allows operators to visually confirm the valve position (open/closed) while keeping threads protected from the media.
- Precision Sealing: Features a solid rotating plug-type disc that is fine-lapped to achieve a "tiniest leakage" profile, even in harsh effluent ponds.
- Bolted Bonnet: Facilitates easy in-line maintenance and gasket replacement, extending the total service life of the valve.
Technical Specifications (2026 Series)
Feature | Details |
Body Material | Cast Iron (CI), Ductile Iron (DI), Cast Steel (WCB), Stainless Steel |
Seating Material | Gun Metal, Bronze, or Stainless Steel (Lapped) |
Standard Compliance | IS 14846 / BS 5163 / ASME B16.34 |
End Connections | Flanged (Standard) or Socket Weld |
Stem Type | Rising Spindle (Manual) or Non-Rising Spindle (Underground) |
Pressure Class | PN 1.0, PN 1.6, Class 125# to 300# |
Critical Applications
- Water Treatment: Controlling the flow in municipal distribution networks and filtration plants.
- Wastewater & Effluent: Managing levels in effluent ponds and distributor boxes where solids may be present.
- Agriculture & Irrigation: Reliable flow control in open channels, streams, and irrigation pipelines.
- Industrial Cooling: Efficient on/off isolation for large-scale industrial cooling towers.
Global Trust & Export Excellence
FlowBiz Exports has built an international reputation for quality. Our Sluice Gate Valves are preferred by overseas customers across:
- Middle East & Africa: Dubai, Turkey, South Africa, Nigeria, Kenya, Uganda, Tanzania, Morocco, Mozambique, Congo, and Rwanda.
- Asia: Nepal, Bangladesh, Thailand, Vietnam.
In India, we remain the top-tier supplier for infrastructure projects in Mumbai, Pune, Ahmedabad, and Vapi, providing "Make in India" excellence to the world.
Are you designing a municipal water network or an industrial effluent plant that requires absolute isolation?
Trust the rugged performance of FlowBiz Sluice Gate Valves. Engineered to hold back water with precision. Contact our technical team today at +91 9016 989898 for a formal quote, GA drawings, and assistance with seating material selection.
