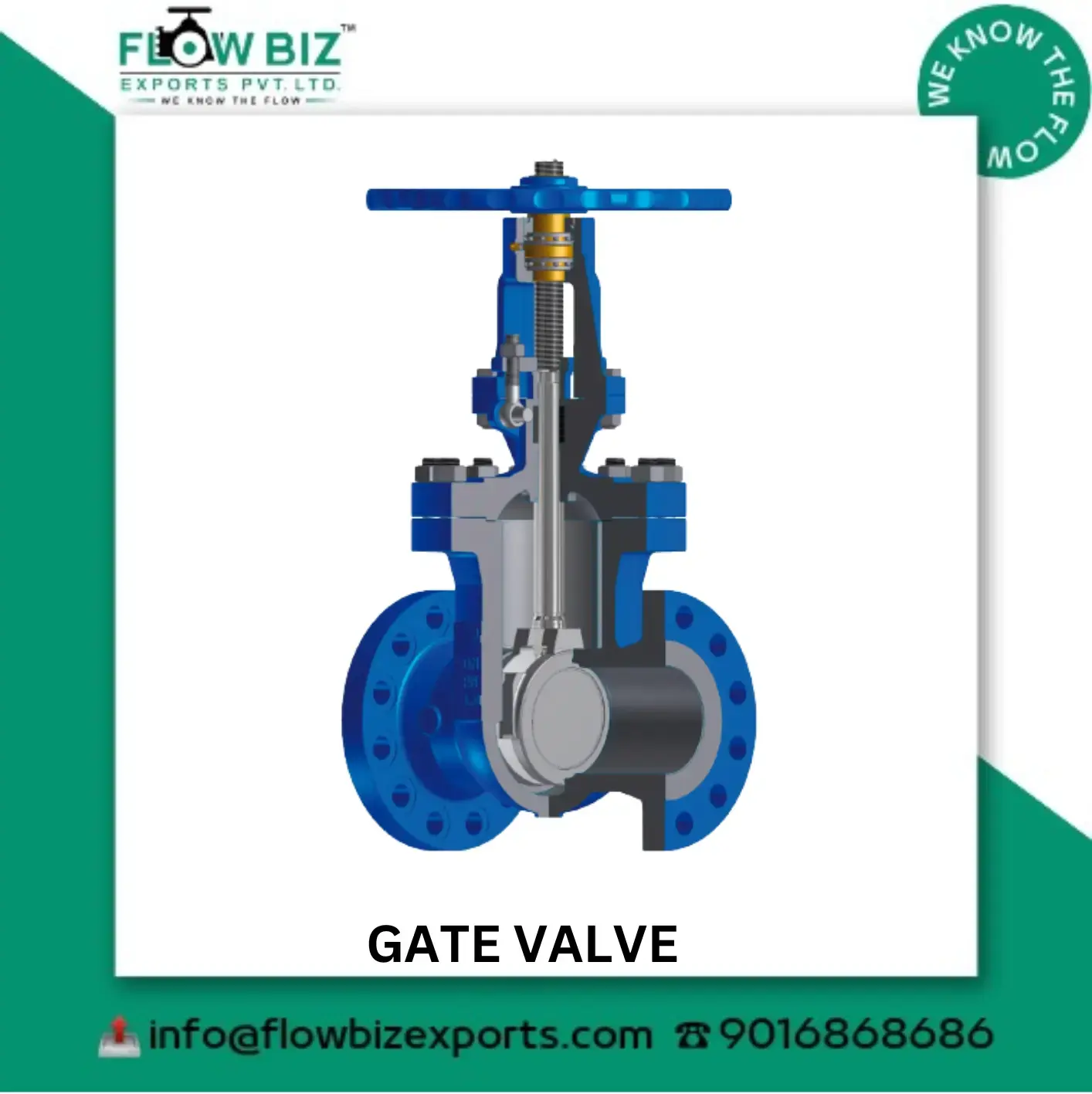

Understanding Gate Valve Construction

A gate valve is a precision-engineered assembly designed for absolute isolation. Understanding its internal components is vital for selecting the right valve for high-pressure or corrosive service.

Core Valve Trim & Parts:

  • Pressure Containing Parts: The Body and Bonnet form the primary pressure shell. The Bonnet Gasket ensures a leak-proof seal between them.
  • The Sealing Mechanism: The Solid Wedge slides into the Body Seat to stop flow. Our seats are often fine-lapped or hard-faced (Stellite) for longevity.
  • The Drive Train: The Stem connects the Handwheel to the wedge. The Yoke Nut and Stem Nut facilitate the mechanical lift.
  • Sealing to Atmosphere: Gland Packing, held by the Gland Follower and Gland Flange, prevents media from escaping along the stem.
  • Safety Feature: The Back Seat allows for the repacking of the gland while the valve is in the fully open position and under pressure.

Technical Classification of Gate Valves

FlowBiz offers a versatile range of gate valves categorized by their design architecture to suit specific industrial needs:

1. Types of Disks (Wedges)

  • Solid Taper Wedge: The most common, providing high strength and simplicity.
  • Flexible Wedge: Features a cut around the perimeter to allow the seating faces to offset slightly, compensating for pipe misalignments or thermal expansion.
  • Split Wedge / Parallel Disk: Ideal for handling thermal binding in high-temperature steam applications.

2. Types of Body-Bonnet Joints

  • Screwed Bonnet: For simple, low-pressure applications.
  • Bolted Bonnet: The industrial standard for easy maintenance and reliable sealing.
  • Welded Bonnet: Used where zero leakage to the atmosphere is critical (e.g., hazardous chemicals).
  • Pressure-Seal Bonnet: Specifically engineered for high-pressure service (Class 900 and above), where the system pressure actually helps seal the joint.

3. Types of Stem Movement

  • Rising Stem (OS & Y Type): The "Outside Stem and Yoke" design is the industry favorite. The stem moves up as the valve opens, providing a visual indicator of the valve position while keeping the threads away from the media.
  • Non-Rising Stem (NRS): The wedge moves up the stem internally. These are perfect for underground installations or areas with limited vertical space.

Your Trusted Partner in Pune and Beyond

As a premier Manufacturer, Supplier, and Exporter, FlowBiz Exports supports the critical infrastructure of Pune’s automotive, sugar, and power industries. Our reach extends across India’s major industrial hubs:

  • Maharashtra: Pune, Mumbai, Nashik, Thane, Aurangabad (Shendra), Nagpur, Kolhapur, Satara.
  • Gujarat: Rajkot, Ahmedabad, Vapi, Valsad, Surat, Bharuch, Dahej.
  • South & Central India: Chennai, Coimbatore, Indore, Bhopal.

Why Choose FlowBiz Gate Valves?

  • Low Pressure Drop: Full-bore design allows for an unobstructed flow path.
  • Durability: Precision-machined parts reduce friction and wear.
  • Global Compliance: Manufactured to meet API and ASME specifications, trusted by overseas customers in Dubai, Turkey, and Africa.
