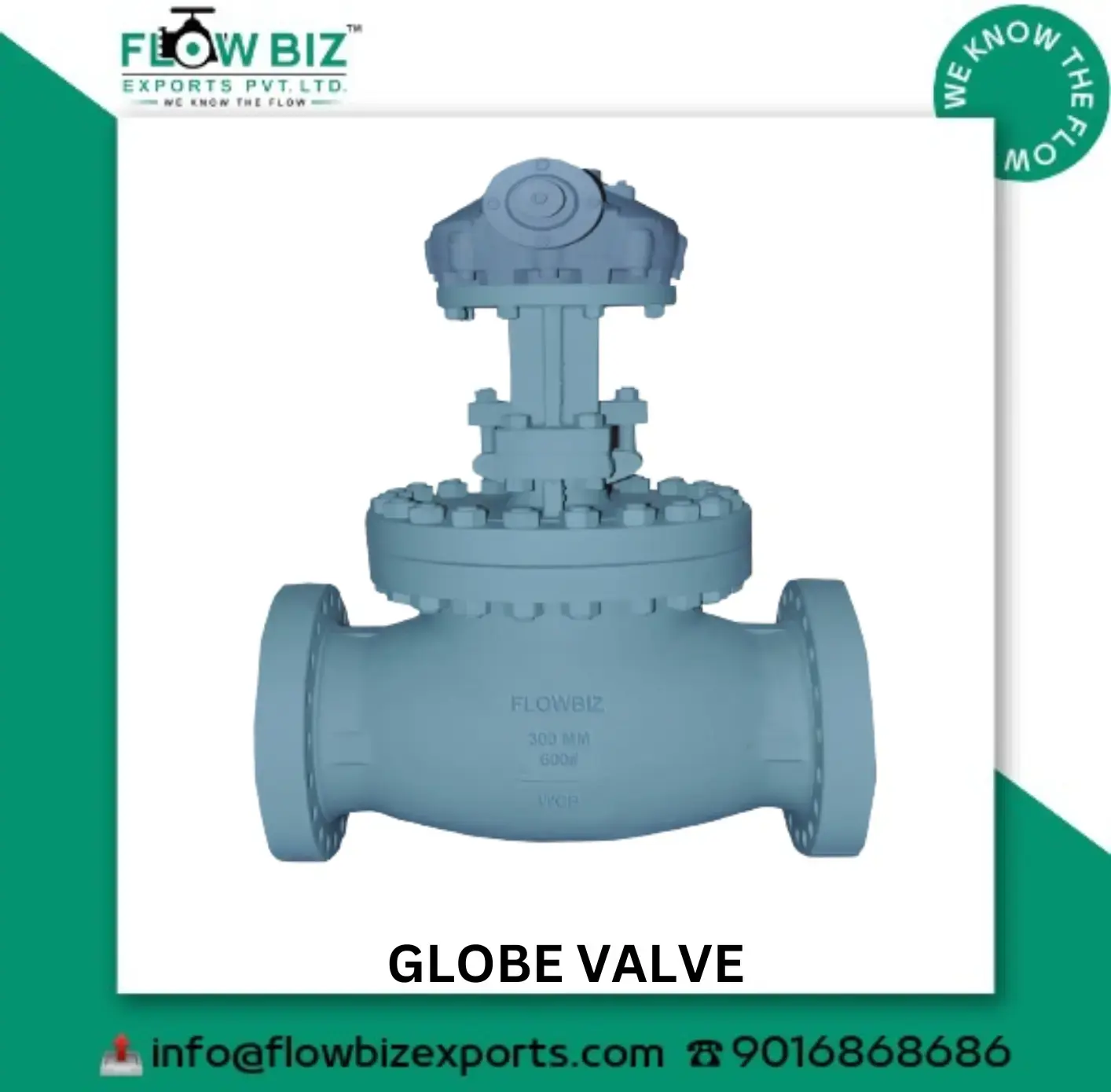

Why Choose Globe Valves for Flow Control?
While gate valves are designed for simple isolation, the Globe Valve is the undisputed master of throttling and regulation. The fluid path through a globe valve follows an S-shaped trajectory, which allows for controlled pressure drops and fine-tuned flow adjustment.
The FlowBiz Pune Product Range
Our portfolio is engineered to meet the specific demands of high-pressure steam, chemical processing, and water treatment systems across Maharashtra.
a) Bolted Bonnet Globe Valves
This is our standard industrial workhorse. The bonnet is secured with studs and nuts, allowing for straightforward disassembly during maintenance.
- Best for: General-purpose steam and liquid service in medium-pressure ranges.
- Advantage: Reliable sealing and easy seat/disc inspection.
b) Pressure Seal Globe Valves
Specifically designed for the Power and Energy sectors in Pune. These valves use the system's internal pressure to tighten the seal.
- Best for: High-pressure and high-temperature service (Class 900 and above).
- Advantage: As pressure increases, the sealing force increases, eliminating the leakage risks common in bolted designs at extreme pressures.
c) Y-Pattern Globe Valves
By angling the stem and seat at approximately 45 degrees, the Y-Pattern provides a much straighter flow path than the standard globe valve.
- Best for: Systems where a low-pressure drop is required but throttling capability must be maintained.
- Advantage: Significantly reduces turbulence and erosion of the internal parts.
d) Bellows Seal Globe Valves
For hazardous, toxic, or expensive fluids, a standard gland packing isn't enough. Our Bellows Seal valves use a metallic bellows to provide a permanent barrier.
- Best for: Heat transfer oils, vacuum service, and volatile chemicals.
- Advantage: Zero Leakage to the atmosphere, protecting both the environment and your personnel.
Technical Specifications: 2026 Standards
Feature | Details |
Design Standards | BS 1873 / ASME B16.34 / API 602 (Forged) |
Testing Standards | API 598 |
Body Materials | WCB, CF8, CF8M, WC6, LCC, A105 (Forged) |
End Connections | Flanged, Buttweld, Socket Weld |
Size Range | ½" (15mm) to 24" (600mm) |
Pressure Class | Class 150# to 2500# |
Serving Pune’s Global Supply Chain
FlowBiz Exports doesn't just serve Pune; we use our Maharashtra hub as a springboard to export "Make in India" quality to Dubai, Turkey, Africa, and Southeast Asia.
For the latest price of valves in Pune or to discuss custom trim requirements for your process line, our engineering team is ready to assist.
