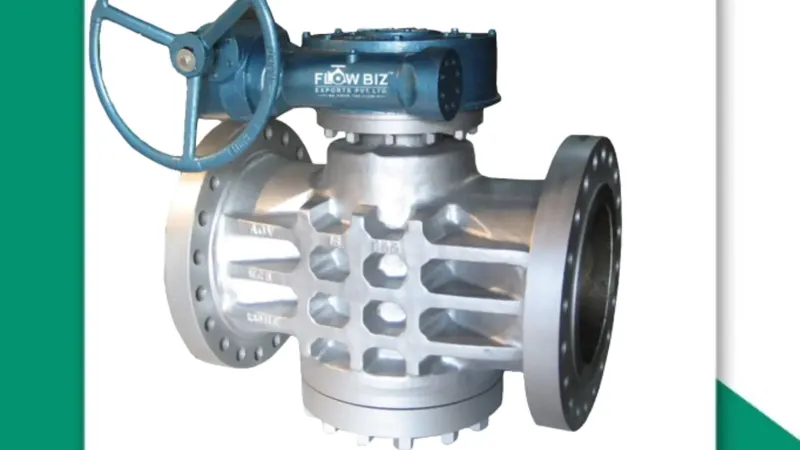

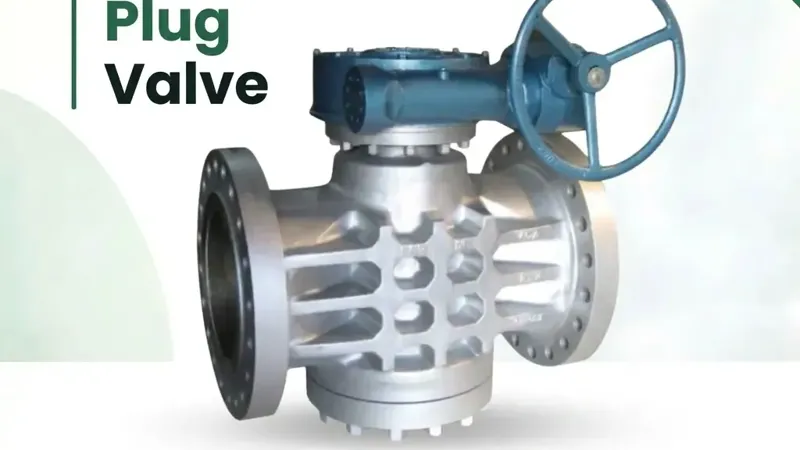

FlowBiz Plug Valves: The Ultimate "No-Clog" Solution
Unlike other valves, a plug valve uses a tapered or cylindrical plug that rotates within the valve body. Because the seating area is significantly larger than in other valve types, it is exceptionally resistant to erosion and scale buildup.
Key Engineering Advantages
- Total Isolation: Provides a bubble-tight shut-off even in high-vacuum or high-pressure applications.
- Minimal Maintenance: The simple quarter-turn operation and lack of complex internal parts make it the most reliable choice for "set and forget" installations.
- Self-Cleaning: As the plug rotates, it "wipes" the seating surface, clearing away any solids or debris—ideal for mining and wastewater.
- Sleeved Design (Optional): We offer PTFE-sleeved plug valves that eliminate the need for lubrication, preventing process contamination.
Technical Versatility: Two-Way vs. Three-Way
FlowBiz Exports designs plug valves to facilitate various flow patterns, ensuring flexibility in your pipeline architecture.
1. Two-Way Plug Valves
Designed for standard on-off service. It features a straight-through port that minimizes turbulence and pressure drop when fully open.
- Best for: Isolation of slurries, fly ash, and thick chemicals.
2. Three-Way Plug Valves (Multi-Port)
These valves are the architects of flow direction. With a third port generally at a 90° angle, they can perform two critical functions:
- Diverting Flow: Directing the inlet fluid to one of two different outlets.
- Combining Flow: Merging fluids from two different inlets into a single discharge header.
Technical Specifications (2026 Series)
Feature | Details |
Design Standards | API 599 / ASME B16.34 |
Testing Standards | API 598 |
Body Materials | WCB, CF8, CF8M, Ductile Iron, Hastelloy |
Plug Types | Tapered or Cylindrical (Lubricated or Sleeved) |
Pressure Class | Class 150# to 600# |
Size Range | ½" (15mm) to 24" (600mm) |
Strategically Serving Nashik and Global Markets
As a leading Manufacturer, Supplier, and Exporter, we leverage our Nashik and Gujarat hubs to provide rapid delivery across India and to our appreciated overseas customers in Dubai, Turkey, Africa, and Southeast Asia.
- Maharashtra: Nashik, Mumbai, Pune, Thane, Aurangabad, Nagpur.
- Gujarat: Bhavnagar, Rajkot, Ahmedabad, Vapi, Surat, Bharuch.
- South India: Chennai, Coimbatore, Salem.
Is your current valve failing due to solids buildup or high-frequency operation?
Experience the rugged reliability of FlowBiz Brand Plug Valves. Our technical team in Nashik is ready to help you choose between Sleeved (Non-Lubricated) or Lubricated designs based on your media properties.
