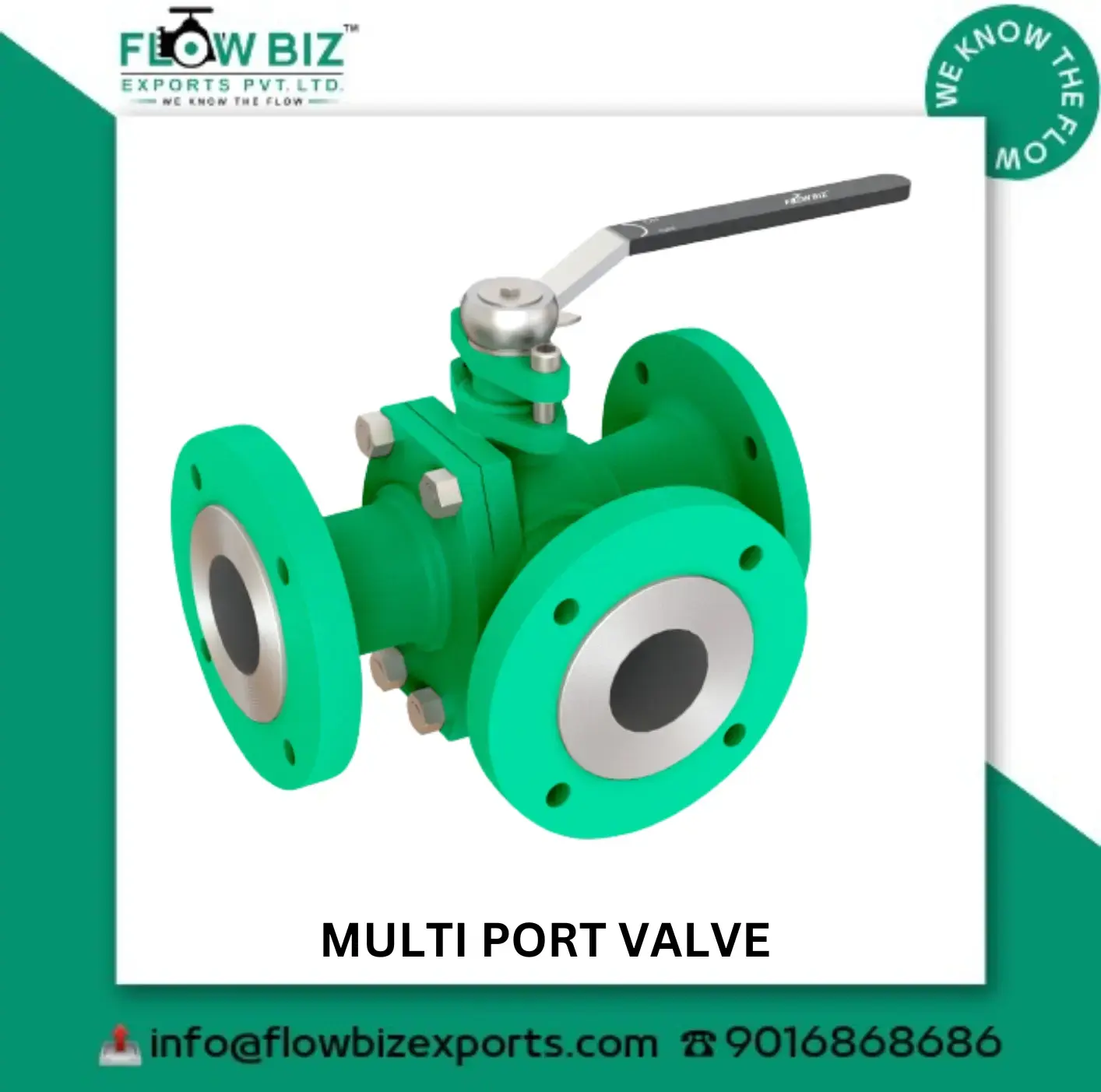

FlowBiz Multi-Port Ball Valves: The Future of Streamlined Flow Control
In the sophisticated industrial landscape of 2026, pipeline complexity is the enemy of efficiency. FlowBiz Exports Pvt. Ltd., a premier Multi-Port Ball Valve Manufacturer in Nashik, has engineered a solution that redefines process architecture. Our 3-way and 4-way ball valves are designed to replace multiple isolation valves, reducing leak points, lowering installation costs, and eliminating "dead space" in critical process lines.
Whether you are diverting high-pressure gas in Dubai, mixing chemicals in Mumbai, or bypassing filtration systems in South Africa, FlowBiz Multi-Port valves offer the most versatile flow patterns in the industry.
The Engineering Advantage: 3-Way & 4-Way Configuration
FlowBiz Multi-Port valves utilize a single, precision-machined ball with specialized porting to manage complex flow requirements.
1. L-Port (Diverter Pattern)
Ideal for directing flow from a common inlet to one of two different outlets. It provides a simple "this or that" logic, perfect for switching between storage tanks or reactor vessels.
2. T-Port (Mixer/Bypass Pattern)
The most versatile configuration. A T-port ball can:
- Mix: Combine fluids from two inlets into one outlet.
- Divert: Send fluid to two outlets simultaneously.
- Bypass: Allow straight-through flow while isolating the third port.
Key Features & Product Range
Our Multi-Port series is built to withstand the rigors of heavy industry while maintaining the precision required for pharmaceutical and food-grade applications.
- Size Range: Extensive coverage from 1/2" (15mm) for instrumentation up to 24" (600mm) for high-volume industrial headers.
- Body Styles: * Close Standard: Compact design for space-constrained skids.
- Block-Style Full Port: Designed for maximum flow capacity with minimal pressure drop.
- Mixed End Connections: FlowBiz offers the unique ability to mix end connections on a single valve body. You can specify a Flanged inlet with NPT Threaded or Socket Weld outlets to match your existing piping perfectly.
- Interchangeability: To simplify maintenance for our global customers, many parts are fully convertible between different Multi-Port models, significantly reducing your spare parts inventory.
Technical Specifications: 2026 Standards
Feature | Details |
Design Standards | ASME B16.34 / API 6D / ISO 17292 |
Testing Standards | API 598 (Zero Leakage / Bubble Tight) |
MOC (Materials) | Carbon Steel (WCB), Alloy Steel, Stainless Steel (CF8/CF8M), Nickel Alloys (Hastelloy/Monel) |
End Connections | Flanged, NPT Threaded, Quick Clamp (Tri-Clover), Socket Weld, Butt Weld |
Pressure Class | Class 150# to 600# (Custom higher ratings available) |
Operating Temp | -29°C to 200°C (Dependent on seat material) |
Serving Global Key Sectors from India
Our overseas customers in Turkey, Africa, Nepal, Thailand, Vietnam, and Nigeria appreciate FlowBiz for our ability to eliminate "valve redundancy." By using one FlowBiz Multi-Port valve instead of three standard ball valves, you:
- Reduce Weight: Critical for offshore and modular skid builds.
- Simplify Automation: Only one actuator is required to manage complex flow paths.
- Enhance Safety: Fewer flanged joints mean fewer potential leak paths to the atmosphere.
Is your current pipeline cluttered with excess valves and complicated bypass loops?
Experience the "Full Bore" innovation of FlowBiz Exports. Our Nashik-based engineering team is ready to provide custom flow-path diagrams, CAD drawings, and quick quotes for your specific project.
