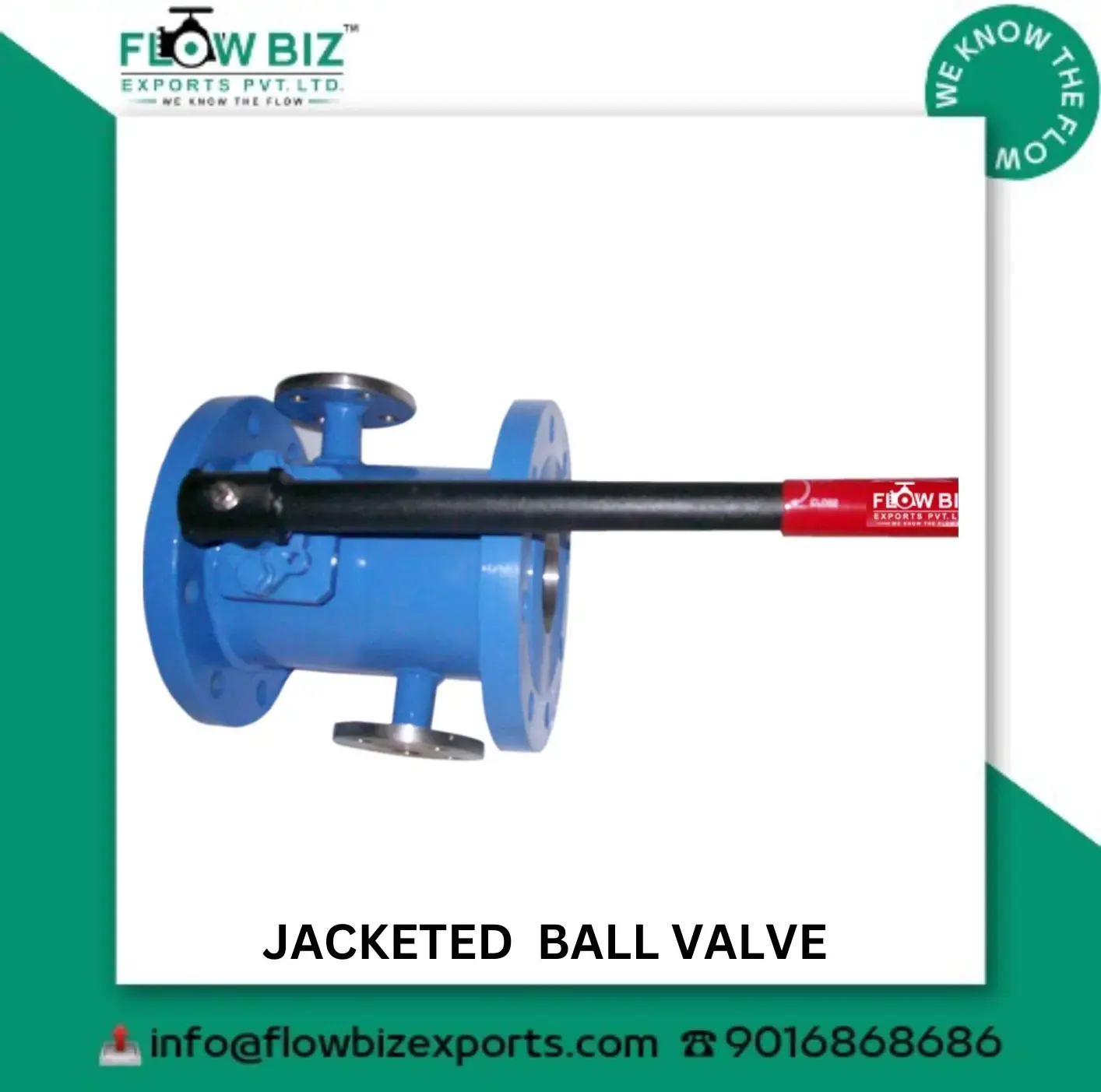

FlowBiz Jacketed Ball Valves: Thermal Integrity by Design
A Jacketed Ball Valve features an external heating or cooling chamber (the jacket) that is precision-welded to the valve body. By circulating steam, hot oil, or cooling water through this jacket, the internal media is kept at its optimal viscosity, preventing "freezing" or crystallization inside the valve.
Key Engineering Features
- Full Bore Design: Ensures an unobstructed flow path, minimizing pressure drop—critical for viscous fluids.
- Fabricated & Welded Jacket: Our jackets are robustly welded to the body from flange to flange, maximizing heat transfer surface area.
- Fire-Safe Design: Engineered to meet API 607 standards, ensuring secondary metal-to-metal sealing in high-risk environments.
- Cavity Filler Seats (Optional): We offer cavity fillers to eliminate "dead space" between the ball and the body, preventing the accumulation of media that could solidify and seize the valve.
- Maintenance-Free Stem Sealing: Highly adjustable gland packing ensures zero leakage to the atmosphere without frequent adjustment.
Technical Specifications: 2026 Series
Feature | Details |
Design Standard | ASME B16.34 / API 6D |
Testing Standard | API 598 |
Body Materials | WCB, CF8, CF8M, Hastelloy |
Jacket Material | Carbon Steel or Stainless Steel |
Pressure Class | Class 150# to 600# |
Oversized Flanges | Standard design (e.g., 2" Bore with 3" Flanges) for bolting clearance |
Strategic Advantages for Industry
- Freeze Protection: Essential for Nashik and Pune's chemical plants handling high-melting-point fluids.
- Double Sealing: Enhanced seat integrity for better operation and safety.
- Test Implemented Design: Every body design undergoes rigorous thermal and pressure stress testing.
- Versatility: Highly adjustable to fit custom piping layouts in pharmaceuticals and food processing.
Serving Pune’s Global Supply Chain
As a leading Manufacturer, Supplier, and Exporter, FlowBiz Exports leverages its Maharashtra hub to provide rapid delivery to:
- Pune Area: Pimpri, Chakan, Talegaon, Baramati, Khed.
- Maharashtra Hubs: Mumbai, Nashik, Aurangabad, Nagpur, Kolhapur, Ambernath.
- Gujarat Corridor: Vapi, Dahej, Ankleshwar, Hazira, Sanand, Mundra.
Our "Make in India" quality is trusted globally, with a strong presence in Dubai, Turkey, Africa, and Southeast Asia.
Is your process media solidifying in the line during temperature fluctuations?
Switch to the FlowBiz Jacketed Ball Valve. Our Pune-based technical team is ready to provide custom jacket drawings and a quick quote tailored to your specific heating media requirements.
