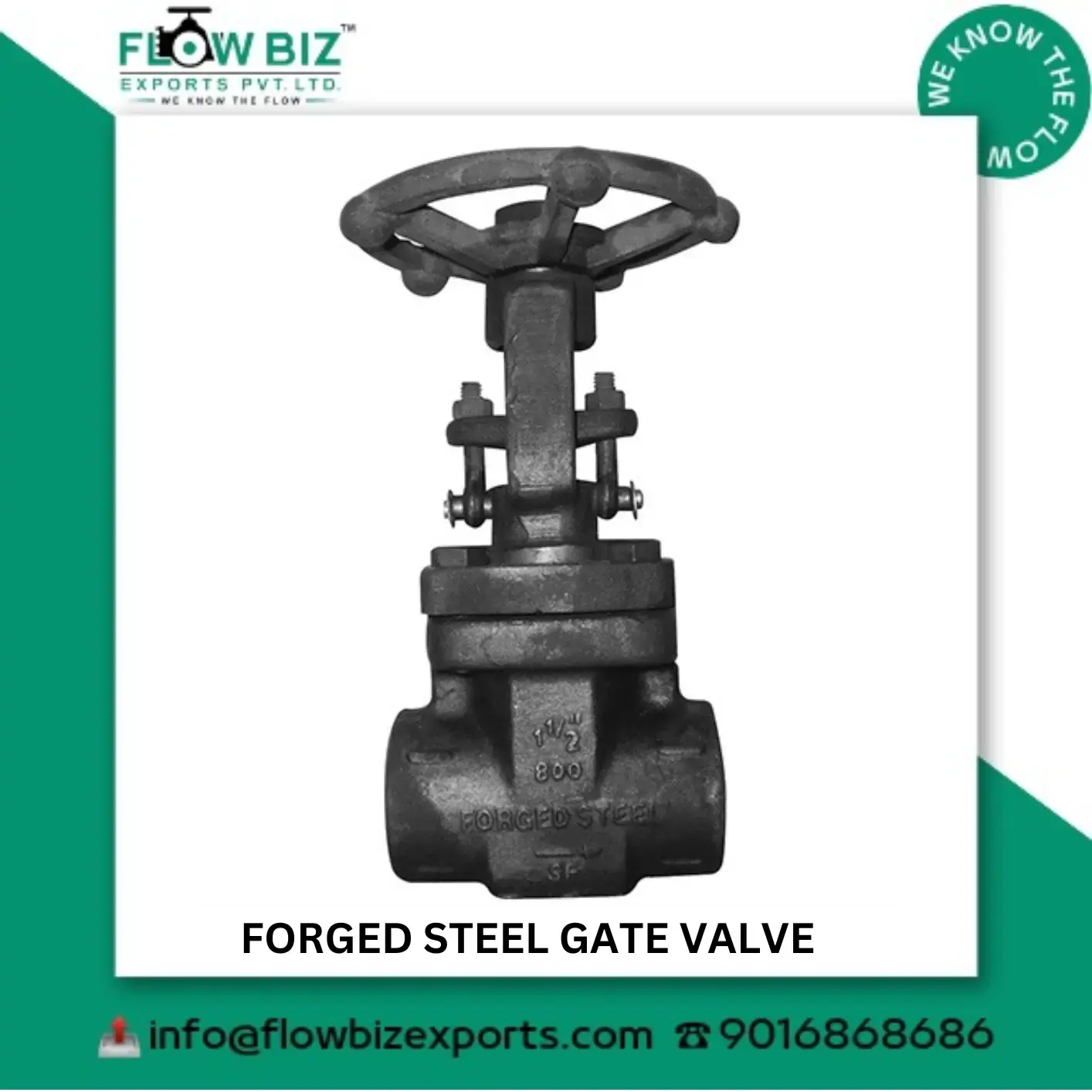

FlowBiz Forged Steel Gate Valves: The Peak of High-Pressure Isolation
In the demanding industrial environments of 2026, where safety and structural integrity are non-negotiable, FlowBiz Exports Pvt. Ltd. is recognized as the premier Forged Steel Gate Valve Manufacturer in Nashik.
While cast valves serve general purposes, our forged steel valves are designed for the "Critical Path." Through the forging process, the metal's grain structure is refined and aligned, eliminating internal porosities and gas pockets. This results in a valve with unmatched mechanical strength, superior impact resistance, and the ability to handle extreme thermal cycling without fatigue.
Technical Superiority: Why Choose Forged over Cast?
FlowBiz Forged Steel Gate Valves are primarily manufactured in Reduced Bore configurations. While the flow passage is slightly smaller than a same-size cast valve, the engineering trade-off provides immense benefits:
- Higher P-T Ratings: Forged valves offer significantly better pressure and temperature $(P-T)$ ranges, making them the standard for high-pressure steam and hydrocarbon service.
- Enhanced Sealing: The dense molecular structure allows for precision-machined seating surfaces that provide a superior seal compared to cast alternatives.
- Extended Service Life: Forged steel resists wear, corrosion, and erosion more effectively, ensuring a lower Total Cost of Ownership (TCO).
- Unrestricted Flow: When fully retracted, the wedge allows for a straight-through flow path with minimal turbulence.
Diverse Range of Forged Gate Valves
At FlowBiz, we understand that every pipeline has unique architectural requirements. We offer a specialized portfolio of forged designs:
- Bolted Bonnet Gate Valve: The industry standard for easy maintenance and field serviceability.
- Pressure Seal Gate Valve: Engineered for High-Pressure Class 900–2500 service; the internal pressure actually helps tighten the bonnet seal.
- Welded Bonnet Gate Valve: The preferred choice for hazardous, toxic, or lethal media where zero leakage to the atmosphere is mandatory.
- Flexible Wedge Gate Valve: Designed to compensate for slight pipe misalignments and thermal expansion, preventing "wedge sticking."
- Parallel Slide Gate Valve: Utilizes two independent discs for a tight seal across varying pressure differentials.
Technical Specifications: 2026 Forged Series
Feature | Details |
Design Standards | API 602 / BS EN ISO 15761 / ASME B16.34 |
Testing Standards | API 598 (Zero Leakage / Bubble Tight) |
Body Materials | ASTM A105, F304, F316, F11, F22, LF2 (Low Temp) |
Pressure Class | Class 800, 1500, 2500 |
Size Range | ½" (15mm) to 2" (50mm) |
End Connections | Socket Weld, Butt Weld, NPT Threaded, Flanged |
A Global "Make in India" Success Story
FlowBiz Exports isn't just a manufacturer; we are a global partner. From our Nashik hub, we supply the key sectors of Oil & Gas, Power, and Pharma across India and to our appreciated overseas customers in Dubai, Turkey, Africa, Thailand, Vietnam, and Nigeria.
Why FlowBiz?
- Strength and Durability: Forged to withstand the most aggressive mechanical stresses.
- Corrosion Resistance: High-grade alloys ensure longevity in harsh environments.
- Versatility: Customizable trims and ends for any pipeline configuration.
Is your pipeline operating at pressures where cast valves simply won't suffice?
Experience the structural integrity of FlowBiz Forged Steel Gate Valves. Our Nashik-based technical team is ready to provide IBR certificates, GA drawings, and rapid quotes for your critical isolation needs.
Call Now for Technical Support: +91 9016 989898
Headquarters: Mumbai | Ahmedabad | Vapi | Nashik
Global Reach: Serving key sectors across India and over 15 countries.
