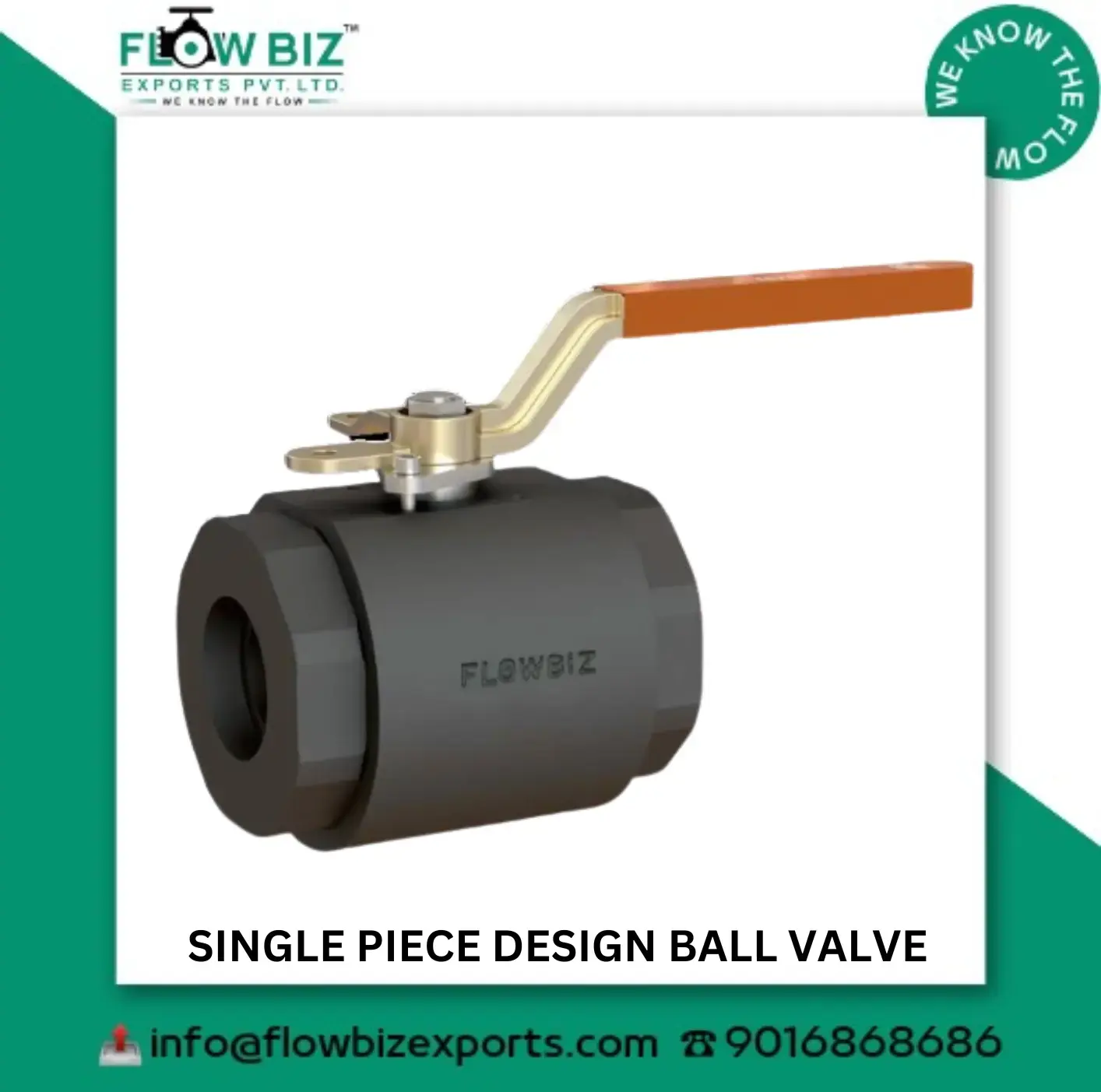

Why Choose Single Piece Design (Unibody) Ball Valves?
The primary philosophy behind the single-piece design is simplicity and safety. Because the valve body is a single casting or forging, it offers the highest level of structural integrity under mechanical stress and internal pressure.
Key Engineering Advantages:
- Reduced Leak Paths: With no body joints, the risk of external leakage is virtually eliminated, making it the safest choice for hazardous or toxic fluids.
- Compact & Lightweight: The streamlined profile makes these valves ideal for modular skids and tight piping configurations common in Pune’s manufacturing plants.
- Reduced Bore Design: Typically featuring a reduced bore, these valves are cost-effective and provide excellent flow control for high-velocity gases and liquids.
- Fire-Safe Integrity: The solid body construction naturally provides better resistance to high temperatures and is easily adaptable to fire-safe standards (API 607).
- Blow-out Proof Stem: Like all FlowBiz ball valves, the single-piece series features an internal stem shoulder to prevent stem ejection under pressure.
Technical Specifications: 2026 Series
Feature | Details |
Design Standards | ASME B16.34 / BS 5351 / API 6D |
Testing Standards | API 598 (Bubble-Tight) |
Body Materials | WCB (Cast Steel), CF8 (SS304), CF8M (SS316), A105 (Forged) |
Pressure Class | Class 150#, 300#, 800# |
Size Range | ½" (15mm) to 12" (300mm) |
End Connections | Flanged, NPT Threaded, Socket Weld |
Critical Applications in Pune’s Industrial Hub
1. Oil & Gas (Upstream to Downstream)
FlowBiz unibody valves are the standard for handling crude oil, natural gas, and refined products. Their rugged construction ensures they withstand the transients and vibrations typical of refinery operations.
2. Chemical & Petrochemical Processing
When dealing with acids, caustic materials, and corrosive reagents, "Zero Leakage" is a requirement, not a luxury. Our stainless steel (CF8M) single-piece valves provide the ultimate shield against chemical attack.
3. Water & Wastewater Treatment
Pune’s water treatment infrastructure relies on the compact design and corrosion resistance of our valves to regulate flow and chemical dosing without the risk of scale buildup or joint failure.
Serving Pune and Beyond
As the best manufacturer of valves in the Pune, Maharashtra area, FlowBiz Exports ensures rapid technical support and logistics to:
- Pune Districts: Pimpri-Chinchwad, Chakan, Talegaon, Baramati, Hadapsar.
- Maharashtra Industrial Grid: Mumbai, Nashik, Aurangabad, Nagpur, Kolhapur.
- Global Export Hubs: Trusted by overseas partners in Dubai, Turkey, Africa, and Southeast Asia.
Is your process currently using 2-piece valves in areas where external leakage is a safety concern?
Upgrade to the FlowBiz Single Piece Design Ball Valve. Our Pune-based engineering team is ready to provide GA drawings and a free quote tailored to your specific pressure and temperature requirements.
Contact Us Today: +91 9016 989898
FlowBiz Exports Pvt Ltd – Innovation is our middle name.
