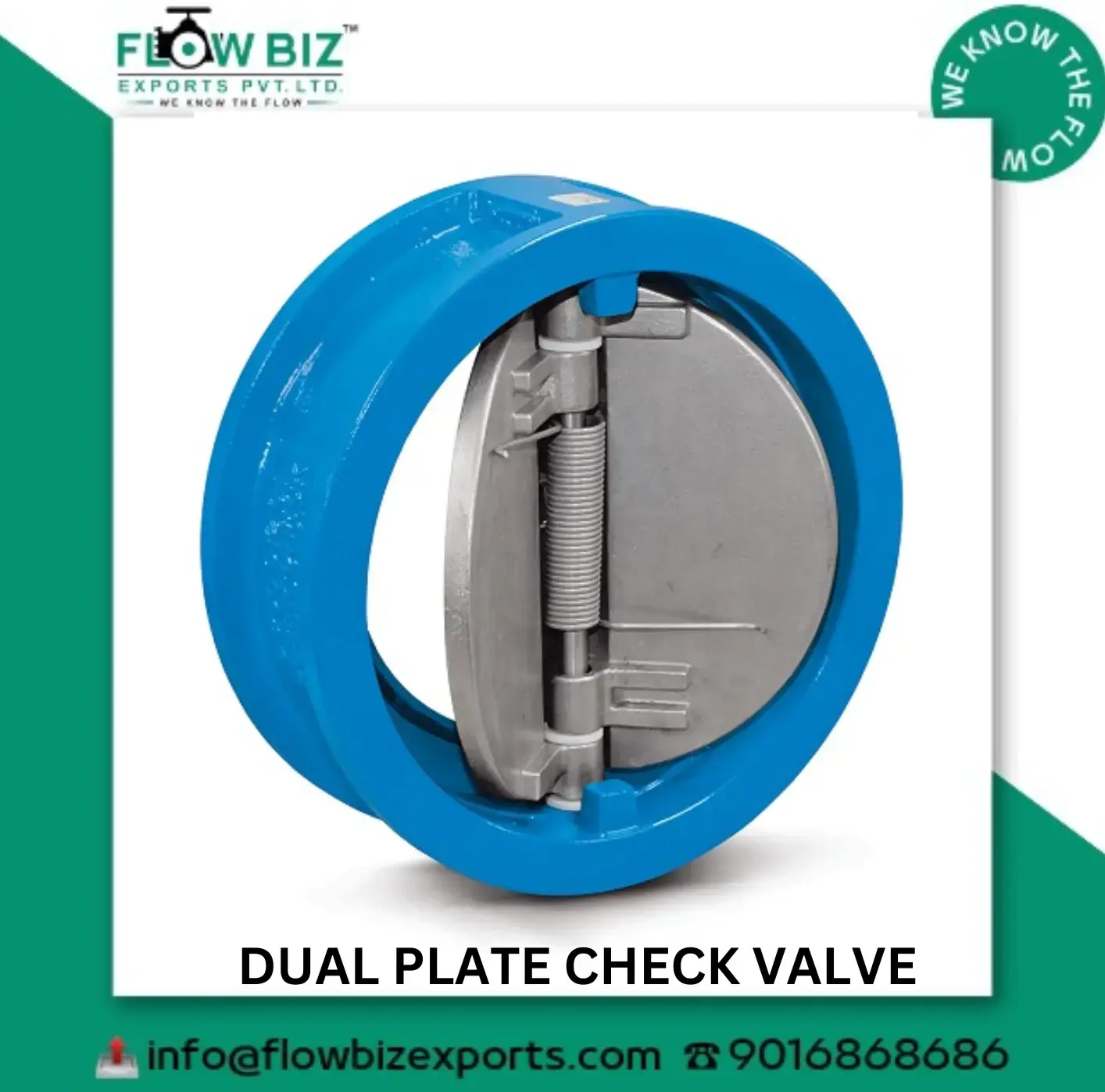

Dual Plate Check Valve Manufacturer in Nashik

Why Choose FlowBiz Dual Plate Check Valves?

Traditional check valves are often heavy and prone to "slamming." The FlowBiz Dual Plate design solves these issues by using two spring-loaded plates (discs) hinged on a central pin. When the flow starts, the plates open; when the flow stops, the springs facilitate a quick closure before any backflow can gain momentum.

Key Advantages for Industrial Pipelines:

  • Compact & Lightweight: The "Wafer" design is significantly shorter and lighter than a swing check valve, reducing installation costs and the need for heavy pipe supports.
  • Reduced Water Hammer: Because the plates are smaller and spring-assisted, they close much faster than a single large disc, virtually eliminating the destructive "water hammer" effect.
  • Lower Pressure Loss: The streamlined design allows for improved flow characteristics, resulting in lower pressure drops across the valve.
  • Quick Closure: The spring-loaded mechanism ensures the valve reacts instantly to flow changes, protecting upstream equipment like pumps and compressors.
  • High-Pressure Reliability: Our dual plate valves are engineered to perform under extreme pressure conditions, maintaining a bubble-tight seal.

Technical Range & Varieties

FlowBiz offers two primary body styles to fit different piping requirements in the Nashik industrial belt:

1. Wafer Dual Plate Check Valve

Designed to be sandwiched between two pipeline flanges. Its ultra-compact face-to-face dimensions make it ideal for space-constrained skids.

2. Lug Type Dual Plate Check Valve

Features threaded lugs that allow the valve to be bolted directly to the flanges. This design is preferred for end-of-line service or where the piping on one side needs to be removed while the other side remains under pressure.

Technical Specifications: 2026 Series

Feature

Details

Design Standards

API 594 / ASME B16.34

Testing Standards

API 598

Body Materials

WCB, CF8, CF8M, Ductile Iron, Duplex Steel

Plate/Disc Materials

Stainless Steel (CF8M), Al-Bronze

Seat Materials

EPDM, Viton, Nitrile, Metal-to-Metal

Pressure Class

Class 150# to 2500#

Size Range

2" (50mm) to 60" (1500mm)

Serving Nashik’s Global Supply Chain

From our Nashik hub, FlowBiz Exports serves critical sectors across India and internationally. Our "Make in India" precision is appreciated by customers in Dubai, Turkey, Africa, Thailand, and Vietnam.

Why FlowBiz?

  1. Low Maintenance: Fewer moving parts and a robust pin design ensure long-cycle life.
  2. Versatility: Suitable for liquid, gas, and steam applications.
  3. Global Quality: Tested rigorously to meet API 598 standards for zero-leakage performance.

Is your pipeline suffering from the destructive effects of water hammer or high pressure drops?

Switch to the FlowBiz Dual Plate Check Valve. Our Nashik-based engineering team is ready to provide GA drawings, spring tension data, and a quick quote tailored to your flow conditions.

Call Now for Technical Support: +91 9016 989898

FlowBiz Exports Pvt Ltd – Innovation is our middle name.
