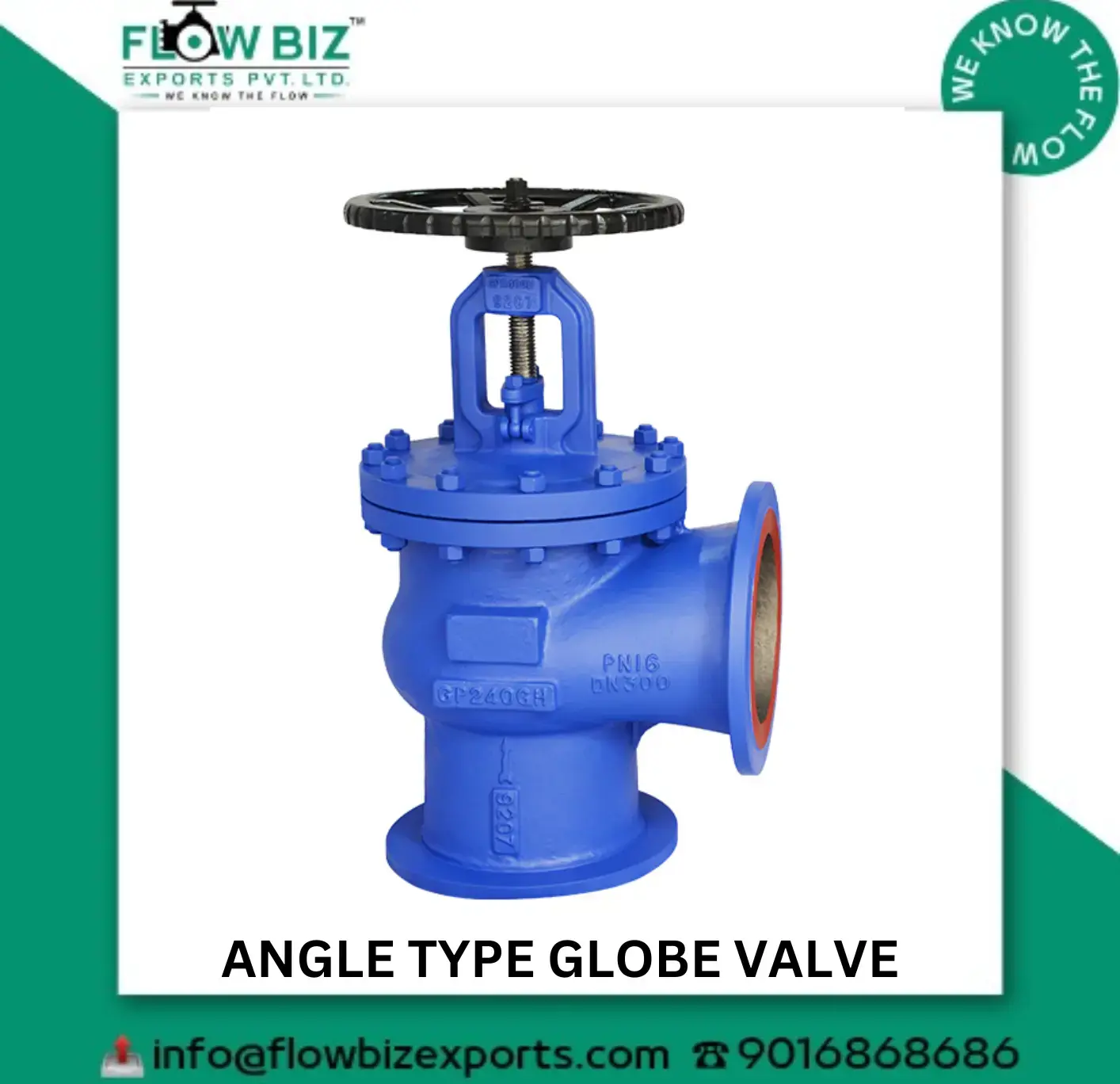

The Engineering Logic of the Angle Type Globe Valve
Standard globe valves require the fluid to make two 90-degree turns within the body, which can create significant turbulence and pressure loss. The Angle Type design streamlines this by allowing the fluid to exit at a right angle to the inlet.
Key Design Advantages:
- Reduced Pressure Drop: The single 90-degree turn offers less resistance than the "S" shaped path of a standard globe valve, improving overall hydraulic efficiency.
- Fewer Fittings: By serving as a 90-degree bend, this valve eliminates the need for an additional pipe elbow, reducing the number of potential leak paths (joints).
- Erosion Resistance: This design is particularly effective for handling "pulsating" flow or fluids that may cause cavitation in standard valves.
- Precise Throttling: Maintaining the core benefit of the globe family, the angle type allows for micro-adjustment of flow rates, making it ideal for high-pressure steam and water regulation.
Technical Specifications: 2026 Nashik Series
Feature | Details |
Design Standards | BS 1873 / ASME B16.34 |
Testing Standards | API 598 (Zero Leakage) |
Body Materials | Cast Steel (WCB), Stainless Steel (CF8/CF8M), Alloy Steel (WC6/WC9) |
End Connections | Flanged, Butt Weld, Socket Weld |
Pressure Class | Class 150# to 2500# |
Size Range | 1/2" (15mm) to 12" (300mm) |
Critical Applications in Global Industry
1. Power Generation (Steam & Water)
Essential for boiler feed-water and steam drum regulation. Our IBR-certified angle globe valves handle high-velocity steam with minimal vibration.
2. Oil and Gas Refineries
Used in piping manifolds where crude oil or refined products must change direction while being precisely metered or isolated.
3. Chemical and Petrochemical Processing
Constructed from corrosion-resistant alloys, these valves manage aggressive chemical flows in tight refinery configurations.
4. Water Treatment & Municipal Works
Ideal for high-pressure pumping stations to regulate water flow and chemical dosing where space within the pump house is restricted.
Serving Nashik and the International Market
From our advanced manufacturing facility in Nashik, FlowBiz Exports serves as a global "Make in India" ambassador. Our valves are trusted by technical procurement teams in Mumbai, Pune, Vapi, and Ahmedabad, as well as overseas customers in Dubai, Turkey, Africa, and Southeast Asia.
Does your current piping layout require a 90-degree turn with precision throttling?
Maximize your efficiency with the FlowBiz Angle Type Globe Valve. Our Nashik-based technical team is ready to assist with CAD integration, material compatibility, and rapid quotes for your next project.
