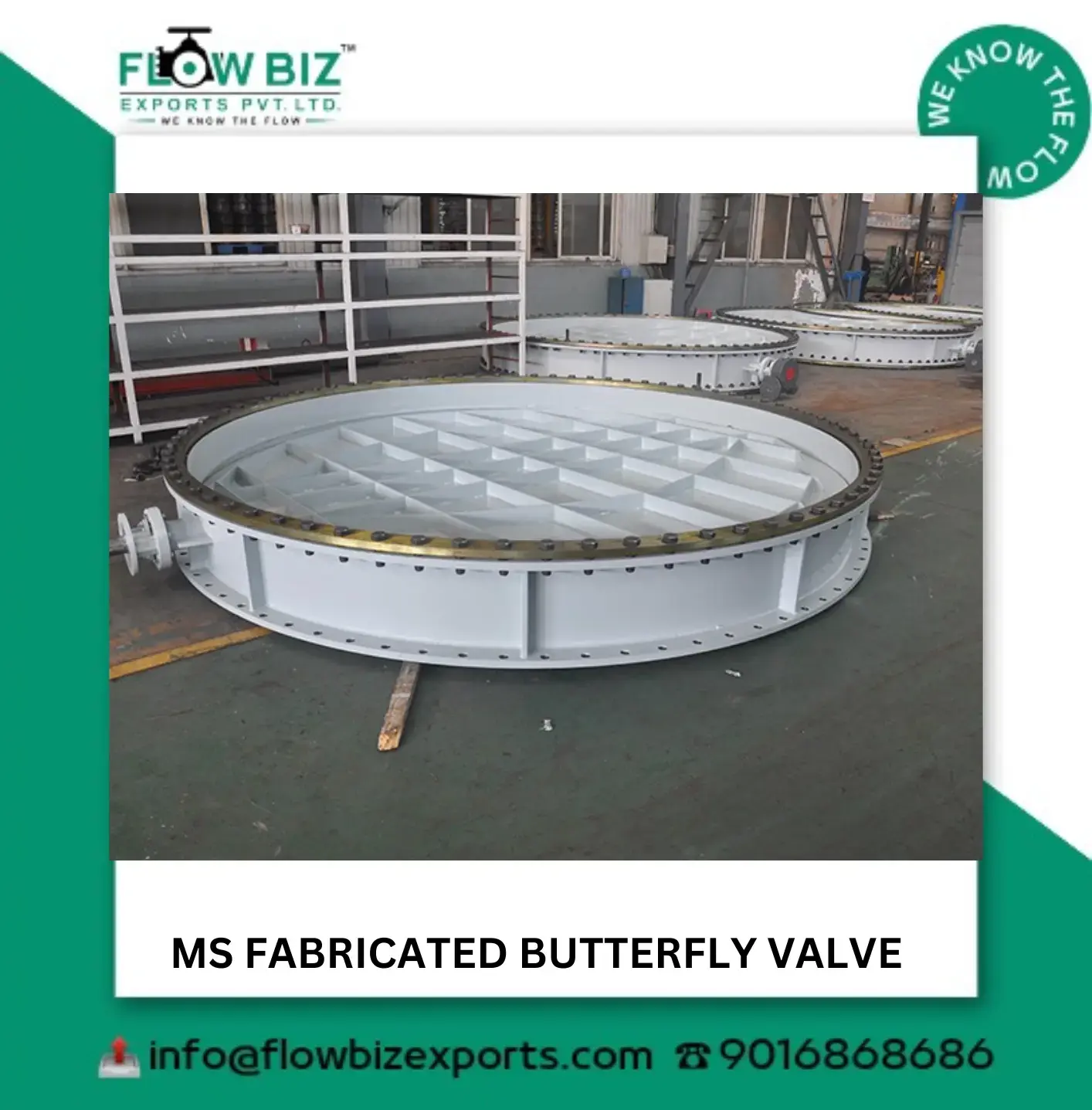

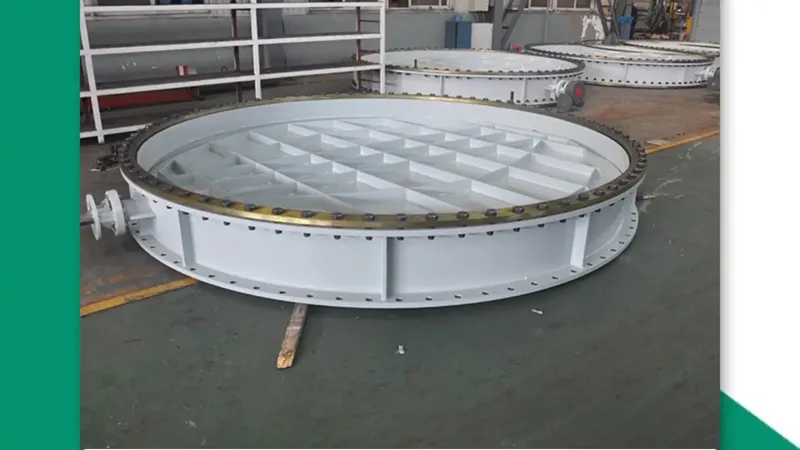

Why Choose MS Fabricated Butterfly Valves?
Unlike traditional cast iron valves, Fabricated MS Valves are constructed using high-grade steel plates and advanced welding techniques. This allows for a higher degree of customization in terms of face-to-face dimensions and pressure ratings, specifically for large diameters up to 120" (3000mm).
Key Engineering Features
- Superior Material Integrity: We use high-performance Mild Steel known for its excellent ductility and resistance to structural fatigue under high-velocity flow.
- Corrosion Protection: Every MS fabricated valve undergoes advanced surface treatments, including Fusion Bonded Epoxy (FBE) coating or specialized rubber lining, ensuring long-lasting performance in buried or submerged conditions.
- Lightweight Yet Strong: Fabrication allows for a more optimized weight-to-strength ratio compared to heavy cast valves, reducing the load on pipe supports and making installation faster.
- Rigid-Quality Compounds: The sealing arrangement utilizes high-performance elastomers (EPDM/Nitrile) to ensure a bubble-tight shut-off even in low-pressure applications.
Technical Specifications: 2026 Series
Feature | Details |
Construction | MS Fabricated (IS 2062 Gr. B or equivalent) |
Size Range | 300mm to 3000mm (12" to 120") |
Design Standard | AWWA C504 / IS 13095 / BS EN 593 |
Pressure Rating | PN 6, PN 10, PN 16 (Higher ratings on request) |
Operation | Heavy-duty Worm Gear, Pneumatic, or Electric Actuator |
Seating | Resilient Seated (Renewable) |
Critical Applications in Pune and Globally
1. Water & Wastewater Treatment
The standard for municipal water mains and intake towers. Our valves handle raw water and treated effluent with zero leakage.
2. HVAC & Cooling Towers
Used in large commercial and industrial HVAC circuits in Pune’s IT parks and automotive manufacturing plants for efficient flow isolation.
3. Industrial Processes
Ideal for low-pressure air, gas, and water lines in steel plants, sugar mills, and paper industries.
4. Agriculture & Irrigation
Crucial for large-scale lift irrigation schemes where reliability in remote locations is mandatory.
Serving Pune’s Global Supply Chain
From our manufacturing centers in Maharashtra and Gujarat, FlowBiz Exports delivers "Make in India" precision to:
- Pune & Surrounding Hubs: Pimpri-Chinchwad, Chakan, Talegaon, Baramati, Ahmednagar.
- Global Export Markets: Proudly serving customers in Dubai, Turkey, Africa (Nigeria, Kenya, South Africa, Morocco), and Southeast Asia (Thailand, Vietnam).
Is your large-scale water project facing delays due to the heavy weight or long lead times of cast valves?
Experience the flexibility of FlowBiz MS Fabricated Butterfly Valves. Our Pune-based engineering team is ready to provide custom GA drawings, FEA (Finite Element Analysis) reports, and rapid quotes for your specific pipeline requirements.
