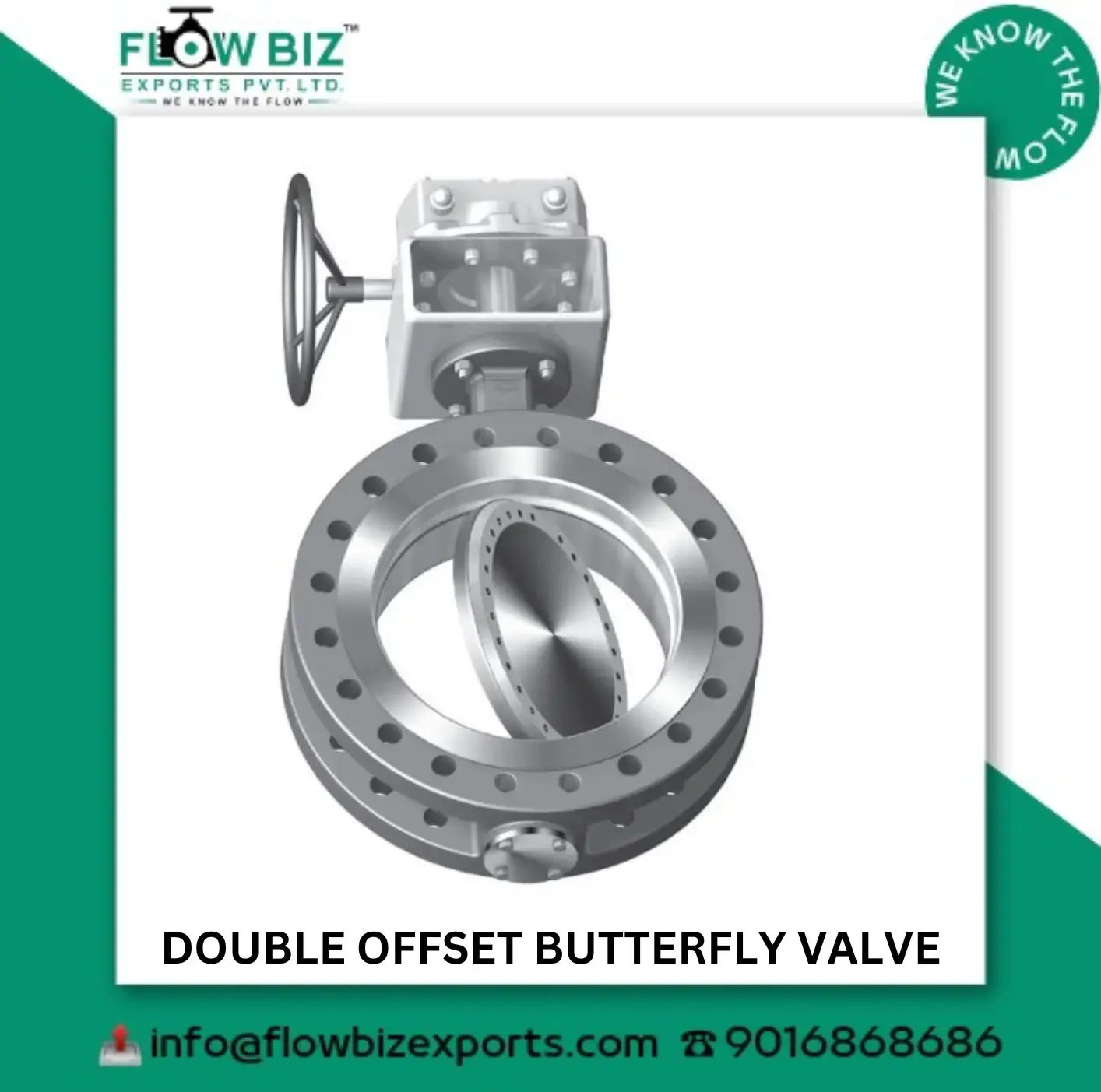

FlowBiz Double Offset Butterfly Valves: The Pinnacle of High-Performance Flow Control
In the sophisticated industrial landscape of 2026, where process efficiency and zero-leakage standards are non-negotiable, FlowBiz Exports Pvt. Ltd. stands as the premier Double Offset Butterfly Valve Manufacturer in Pune.
Traditional concentric butterfly valves often struggle with seat wear and high torque in high-pressure environments. Our Double Offset (High-Performance) series is engineered to solve these challenges through a specialized eccentric geometry that significantly extends valve life and reduces operational costs.
The Engineering Logic: Why "Double Offset"?
The "High-Performance" designation comes from two distinct displacements in the valve's design:
- First Offset: The shaft is located behind the centerline of the sealing surface, allowing for a continuous $360^{\circ}$ sealing path.
- Second Offset: The shaft is slightly to one side of the pipe's vertical centerline.
The Result: A cam-like "eccentric" action where the disc lifts away from the seat immediately upon opening. This eliminates the friction and "scuffing" typical of standard valves, ensuring that the seal remains pristine over thousands of cycles.
Strategic Advantages of FlowBiz Double Offset Valves
- Bubble-Tight Shut-Off: Precision-machined seats provide zero-leakage integrity, even in high-pressure gas or vacuum applications.
- Reduced Operational Torque: Because the disc only contacts the seat at the point of final closure, the torque required is significantly lower, allowing for smaller, more affordable actuators.
- Extended Seat Longevity: The elimination of seat friction means fewer maintenance intervals and a much lower Total Cost of Ownership (TCO).
- Fire-Safe Integrity: We offer specialized API 607 certified designs featuring a secondary metal seat that maintains sealing even if the primary soft seat is destroyed by extreme heat.
- High Flow Capacity ($C_v$): The streamlined disc profile ensures maximum flow with minimal pressure drop, enhancing system energy efficiency.
Technical Specifications: 2026 High-Performance Series
Feature | Details |
Design Standards | API 609 / ASME B16.34 / EN 593 |
Testing Standards | API 598 (Zero Leakage) / API 607 (Fire-Safe) |
Size Range | 2" (50mm) to 48" (1200mm) |
Pressure Class | Class 150#, 300#, 600# |
MOC (Materials) | WCB (Cast Steel), CF8/CF8M (Stainless Steel), Duplex Steel |
Seat Materials | PTFE, R-PTFE, Inconel (Metal Seated for high temp) |
Serving Pune’s Industrial Hub and the Global Market
From our advanced manufacturing centers in Pune and Nashik, FlowBiz Exports delivers "Make in India" precision to every major industrial district and overseas market.
- Domestic Reach: Pimpri-Chinchwad, Chakan, Talegaon, Mumbai, Ahmedabad, Vapi.
- Global Export Reach: Trusted by customers in Dubai, Turkey, Africa, Southeast Asia, and the USA.
Why FlowBiz?
- Technological Expertise: Advanced CAD/CAM design and FEA (Finite Element Analysis) for disc integrity.
- Versatility: Available in Wafer, Lug, and Flanged body styles to suit any piping architecture.
- Reliability: Every valve is tested to exceed international leakage standards.
Is your current valve failing prematurely due to high-cycle wear or seat deformation?
Upgrade to the FlowBiz Double Offset Butterfly Valve. Our Pune-based technical team is ready to provide custom torque calculations, GA drawings, and a rapid quote for your specific application.
Call Now for Technical Support: +91 9016 989898
FlowBiz Exports Pvt Ltd – Innovation is our middle name.
