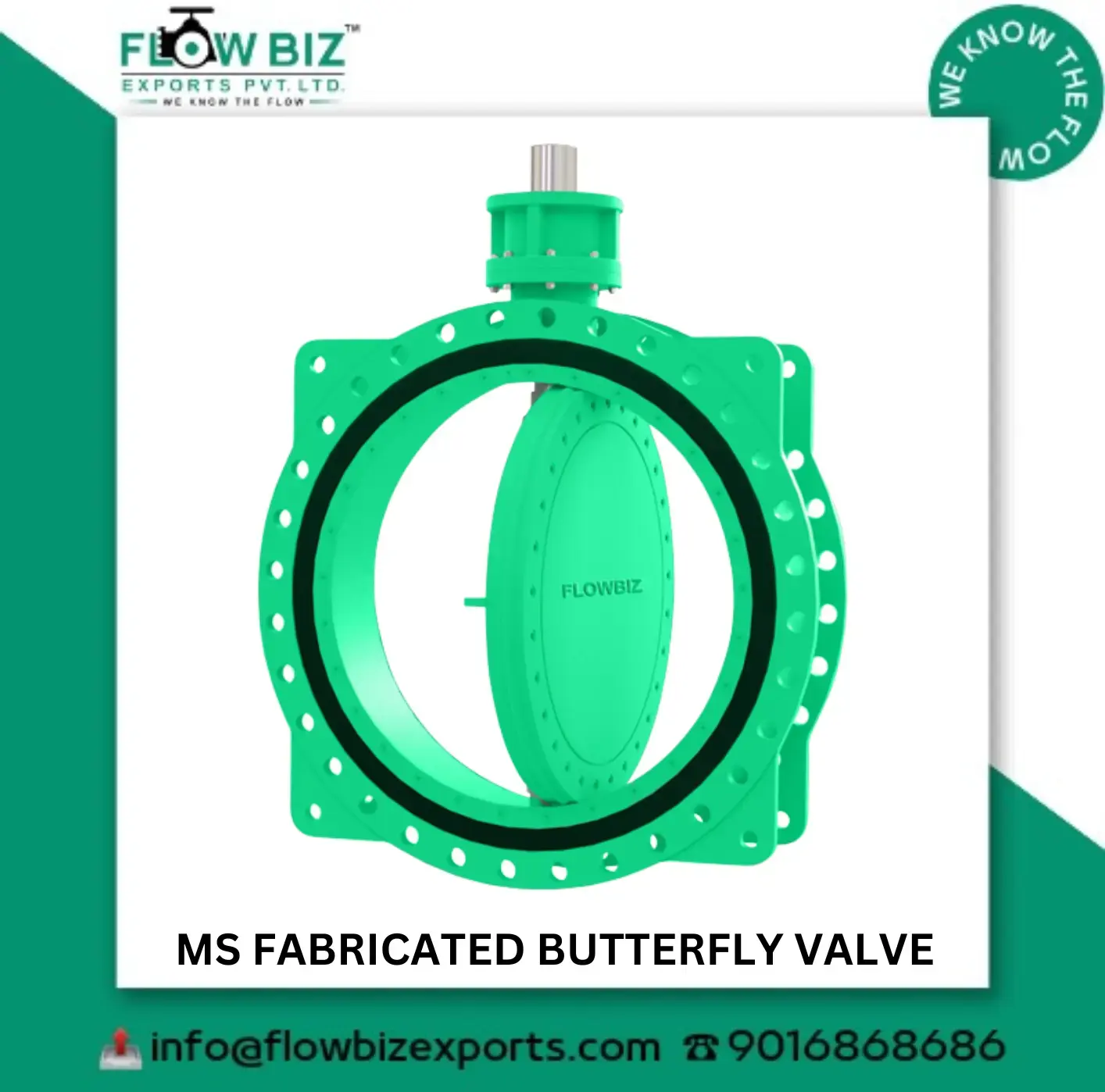

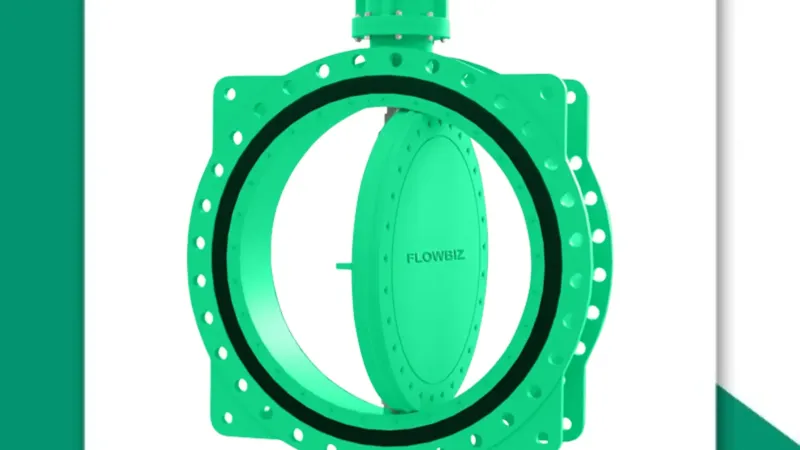

FlowBiz MS Fabricated Butterfly Valves: Heavy-Duty Excellence for Massive Infrastructure
In the large-scale industrial and municipal sectors of 2026, standard cast valves often reach their structural and economic limits. FlowBiz Exports Pvt. Ltd. is the premier MS Fabricated Butterfly Valve Manufacturer in Nashik, specializing in custom-engineered, large-diameter solutions that provide the structural resilience required for bulk water transmission and industrial cooling.
By utilizing high-grade Mild Steel (MS) fabrication instead of traditional casting, we offer a valve that is not only more robust but also highly customizable to specific project dimensions, ensuring faster lead times for critical infrastructure projects.
The Fabricated Advantage: Why MS over Cast Iron?
Fabricated valves are the "Workhorses" of large-bore pipelines. Our fabrication process uses premium IS 2062 Grade B steel plates, precision-welded to create a valve body with a superior strength-to-weight ratio.
1. Robust Construction & Scale
While cast valves become prohibitively heavy and brittle at large sizes, MS fabrication allows us to manufacture valves up to 72 inches (1800mm) and beyond, maintaining structural integrity under high mechanical stress.
2. High-Performance Corrosion Protection
To ensure a service life spanning decades, every FlowBiz fabricated valve is treated with advanced coatings. Options include Fusion Bonded Epoxy (FBE), Coal Tar Epoxy, or specialized rubber linings, making them ideal for buried or submerged service.
3. Precision Engineering & Machining
The ductility of mild steel allows for high-precision machining of the seating areas. This ensures that the disc-to-seat contact is perfectly aligned for a bubble-tight seal, reducing the "seating torque" required for operation.
Technical Specifications: 2026 Standard Compliance
FlowBiz adheres to the most stringent international standards to ensure our valves are ready for global export and municipal approval.
Feature | Details |
Design & Manufacturing | AWWA C-504 |
Testing & Inspection | AWWA C-504 (Zero Leakage Standards) |
Flange Standard | AWWA C-207 Class “D” |
Face-to-Face | Up to 72" as per AWWA C-504 or Manufacturer Standard |
Pressure Rating | PN 6 / PN 10 (Higher ratings available on request) |
Size Range | 12" to 72" (300mm to 1800mm) |
Drive Options | Manual Worm Gear, Pneumatic, or Electric Actuator |
Versatile Offsets for Every Application
Depending on the pressure and media, FlowBiz offers three distinct internal geometries:
- Concentric Design: The standard for low-pressure water and air service.
- Double Offset: High-performance design that lifts the disc off the seat during travel to reduce wear.
- Triple Offset: Employs a specialized "cam" action for metal-to-metal seating, ideal for high-temperature gas and critical shut-off.
Serving Nashik’s Global Infrastructure Grid
As the best manufacturer and supplier of valves in India, FlowBiz Exports delivers "Make in India" precision to every major industrial district and overseas market. Our large-bore valves are trusted by customers in Dubai, Turkey, Africa, Thailand, Vietnam, and Nigeria.
Why FlowBiz?
- Customization: We build to your specific face-to-face and flange requirements.
- Cost-Effectiveness: Fabrication provides a more economical solution for large diameters than exotic castings.
- Availability: Faster production cycles than traditional foundries.
Is your large-scale water project facing delays due to the weight or lead times of cast iron valves?
Experience the structural integrity of FlowBiz MS Fabricated Butterfly Valves. Our Nashik-based engineering team is ready to provide custom GA drawings, FBE coating certificates, and rapid quotes for your next project.
Call Now for Technical Support: +91 9016 989898
Headquarters: Mumbai | Ahmedabad | Vapi | Nashik
Global Reach: Serving key sectors across India and over 15 countries.
