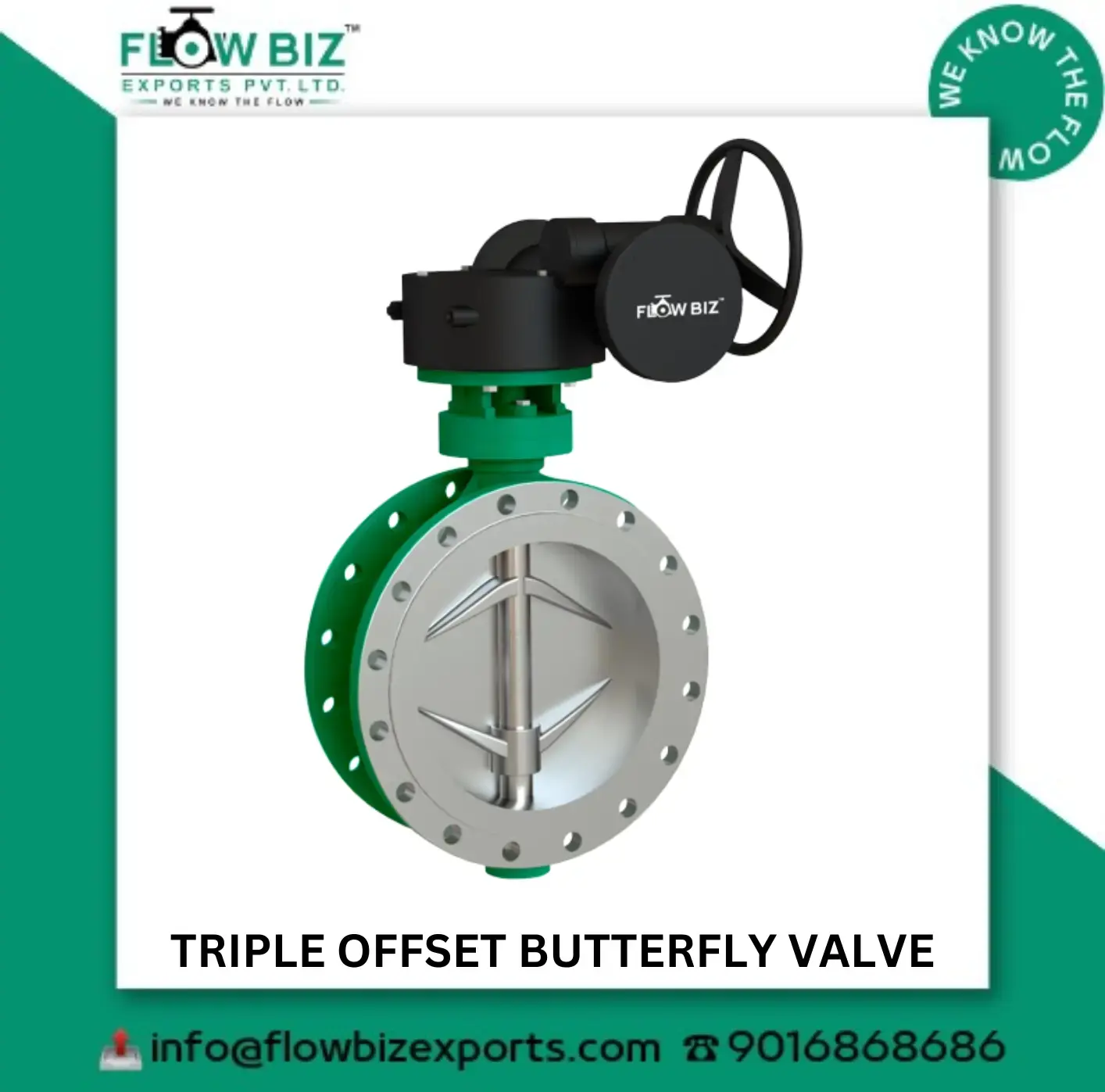

FlowBiz Triple Offset Butterfly Valves: The Ultimate Zero-Leakage Solution
In the high-pressure and extreme-temperature industrial landscape of 2026, "standard" valves often succumb to seat deformation and bypass. FlowBiz Exports Pvt. Ltd. is the premier Triple Offset Butterfly Valve (TOV) Manufacturer in Pune, providing an engineered solution for critical applications where failure is not an option.
The FlowBiz Triple Offset design provides the structural integrity of a gate valve with the compact, lightweight efficiency of a quarter-turn butterfly valve.
The Geometry of Perfection: How Triple Offset Works
The "Triple Offset" designation refers to three distinct geometric displacements that allow for frictionless operation and a metal-to-metal seal:
- Offset 1 (Shaft Offset): The shaft is located behind the centerline of the sealing surface.
- Offset 2 (Centerline Offset): The shaft is slightly to one side of the pipe's vertical centerline.
- Offset 3 (Angular/Conical Offset): The seat and disc seal are machined into an asymmetrical conical shape.
The Result: This unique "cam-action" ensures the disc only contacts the seat at the final point of closure. By eliminating "scuffing" and friction during the stroke, FlowBiz TOVs achieve a bubble-tight, zero-leakage seal across thousands of cycles, even in extreme temperatures.
Strategic Advantages of FlowBiz Triple Offset Valves
- Zero Leakage (Bubble-Tight): Engineered to exceed API 598 standards, providing total isolation for hazardous gases and high-pressure liquids.
- Metal-to-Metal Seat: Unlike rubber-seated valves, our TOVs use high-grade metal seats (Inconel/SS), making them ideal for temperatures up to 600°C+.
- Extended Service Life: Frictionless opening and closing ensure the sealing surfaces remain pristine, significantly lowering Total Cost of Ownership (TCO).
- Fire-Safe by Design: Inherently fire-safe due to the all-metal construction, ensuring process safety in volatile oil and gas environments (API 607).
- Compact & Lightweight: Replaces massive Gate Valves with a fraction of the weight, simplifying installation and reducing pipe support requirements in modern industrial skids.
Technical Specifications: 2026 High-Performance Series
Feature | Details |
Design Standards | API 609 / ASME B16.34 / EN 593 |
Testing Standards | API 598 (Zero Leakage) / API 607 (Fire-Safe) |
Size Range | 3" (80mm) to 80" (2000mm) |
Pressure Class | Class 150#, 300#, 600#, and 900# |
MOC (Materials) | WCB, CF8, CF8M, Duplex Steel, Hastelloy |
Temperature Range | -196°C (Cryogenic) to 600°C+ |
Serving Pune’s Industrial Hub and the Global Market
From our state-of-the-art engineering facility in Pune, Maharashtra, FlowBiz Exports delivers "Make in India" precision to a global audience. We are a trusted brand for overseas customers in Dubai, Turkey, Africa (Nigeria, Kenya, South Africa, Morocco), and Southeast Asia (Thailand, Vietnam).
Why FlowBiz?
- Innovation: Advanced CAD/CAM design and CFD analysis for optimized flow paths.
- Compliance: Rigorous testing protocols ensuring every valve meets global safety standards.
- Global Reach: Serving key sectors in over 15 countries with rapid logistics support.
Is your current valve failing prematurely due to high-cycle wear or seat deformation?
Experience the precision of the FlowBiz Triple Offset Butterfly Valve. Our Pune-based technical team is ready to provide custom torque calculations, GA drawings, and a rapid quote for your most demanding applications.
