Comprehensive Guide to Ball Valves: Meaning, Types, and Industrial Applications
When it comes to precision flow control, the Ball Valve is the undisputed industry standard for reliability. As a premier manufacturer, FlowBiz Pvt Ltd specializes in delivering high-performance ball valves that ensure zero-leakage operations across the most demanding sectors, including Oil & Gas, Steam, and Chemical processing.
What is a Ball Valve?
A Ball Valve is a quarter-turn, 90-degree on/off industrial valve. It utilizes a pivoting, hollow ball with a center bore to regulate the flow of liquids or gases.
- How it Works: When the handle is turned, the ball rotates. If the bore aligns with the pipe, the valve is Open. When rotated 90 degrees, the bore becomes perpendicular to the flow, creating a physical barricade that is Closed.
- The FlowBiz Advantage: Unlike gate or globe valves, FlowBiz ball valves provide an instant, "bubble-tight" shut-off, making them the superior choice for emergency isolation.
Key Industrial Applications
Ball valves are engineered for versatility. They are not only used for simple on/off tasks but also for complex mixing and diversion:
- Isolation (Shut-off): Perfect for water, gas, and oil lines where a quick, secure close is required.
- Diverting Flow: Multi-port ball valves can redirect media from one line into two separate channels.
- Mixing Media: These valves can blend two different sequences into a single discharge line.
- Critical Sectors: Widely used in Steam applications, Petroleum refining, and Wastewater treatment.
Types of Ball Valves Offered by FlowBiz Exports
Understanding the different configurations is essential for matching the valve to your specific application requirements.
1. By Body Construction
- One-Piece Ball Valves: Compact and economical; best for low-pressure applications.
- Two-Piece Ball Valves: The most common design for general industrial use, allowing for easy seal inspection.
- Three-Piece Ball Valves: The gold standard for maintenance. The center section can be "swung out" for repair without removing the pipe connections.
2. By Bore Size
- Full Port (Full Bore): The bore diameter matches the pipe size, resulting in zero flow resistance and allowing for pipe cleaning (pigging).
- Reduced Port (Standard Bore): The bore is one size smaller than the pipe, offering a cost-effective solution for applications where a minor pressure drop is acceptable.
3. Speciality Designs
- Floating Ball Valves: The ball is suspended in the fluid, pushed against the downstream seat by pressure to create a seal.

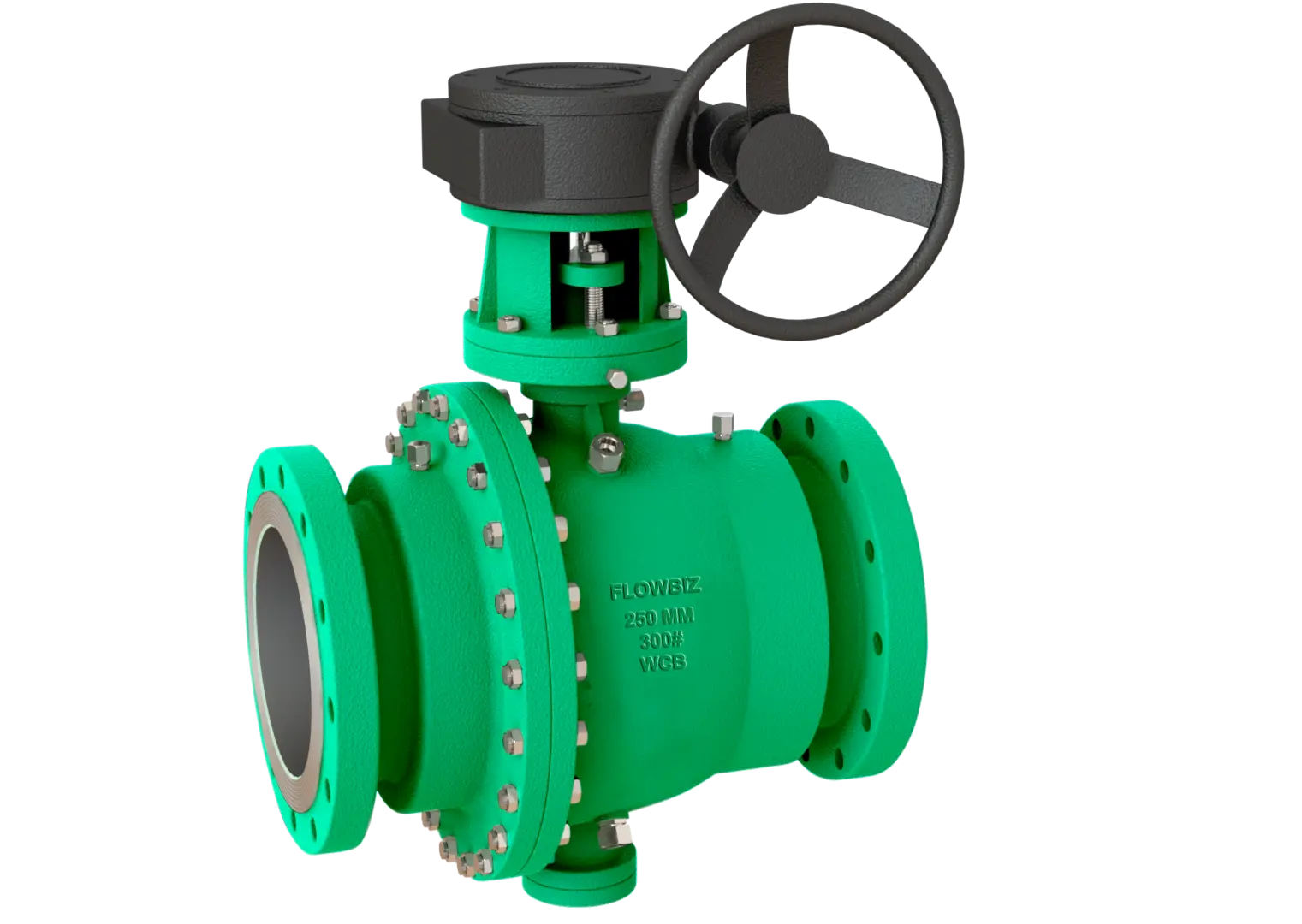

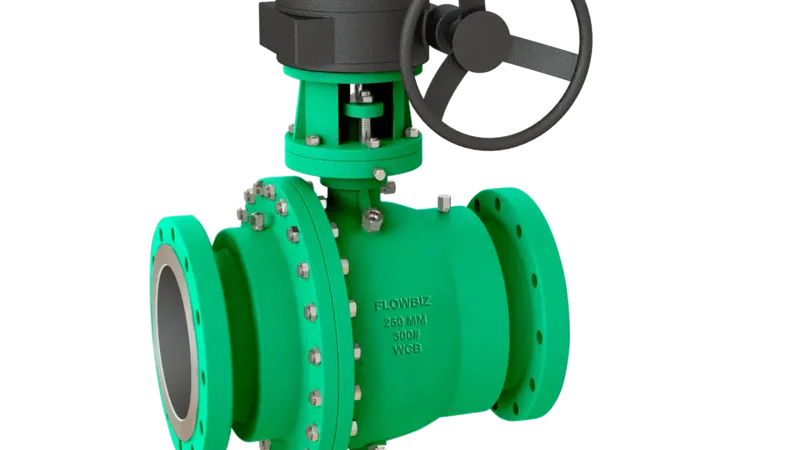

- Trunnion Mounted Ball Valves: The ball is supported by a shaft (trunnion) at the top and bottom. This is the preferred choice for high-pressure and large-diameter pipelines.
Why Choose FlowBiz Ball Valves? (Key Advantages)
FlowBiz Exports is recognized globally for manufacturing valves that exceed standard performance metrics.
- Rapid Operation: Unlock and lock quickly with a simple 90-degree turn.
- Leak-Proof Performance: Superior outflow resistance ensures safety in hazardous environments.
- High-Pressure Stability: Engineered to maintain structural integrity under extreme PSI.
- Corrosion Resistance: FlowBiz offers PFA-lined and FEP-lined valves for handling aggressive chemicals.
- Economic Longevity: Long-lasting service life with minimal maintenance requirements.
FlowBiz Exports: India’s Leading Valve Manufacturer
FlowBiz Exports is the trusted partner for critical flow control accessories. Our manufacturing facility produces a wide array of industrial solutions, including:

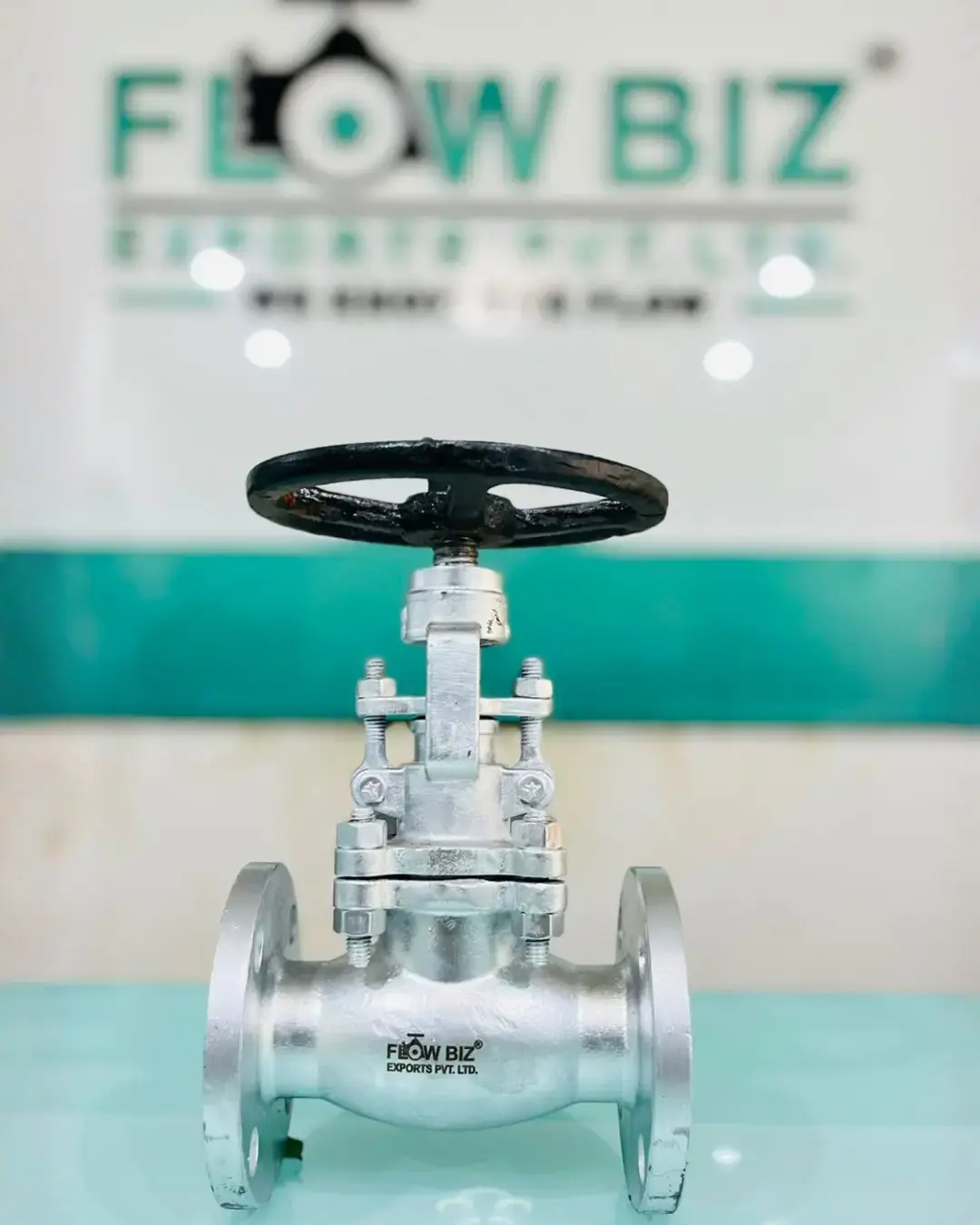

- Gate, Globe, and Swing Check Valves
- High-Pressure Ball Valves & Needle Valves
- Knife Edge Gate Valves for slurry and viscous media.
- IBR Valves for boiler compliance.
- Strainers: Y-type, Basket, and Conical options.
