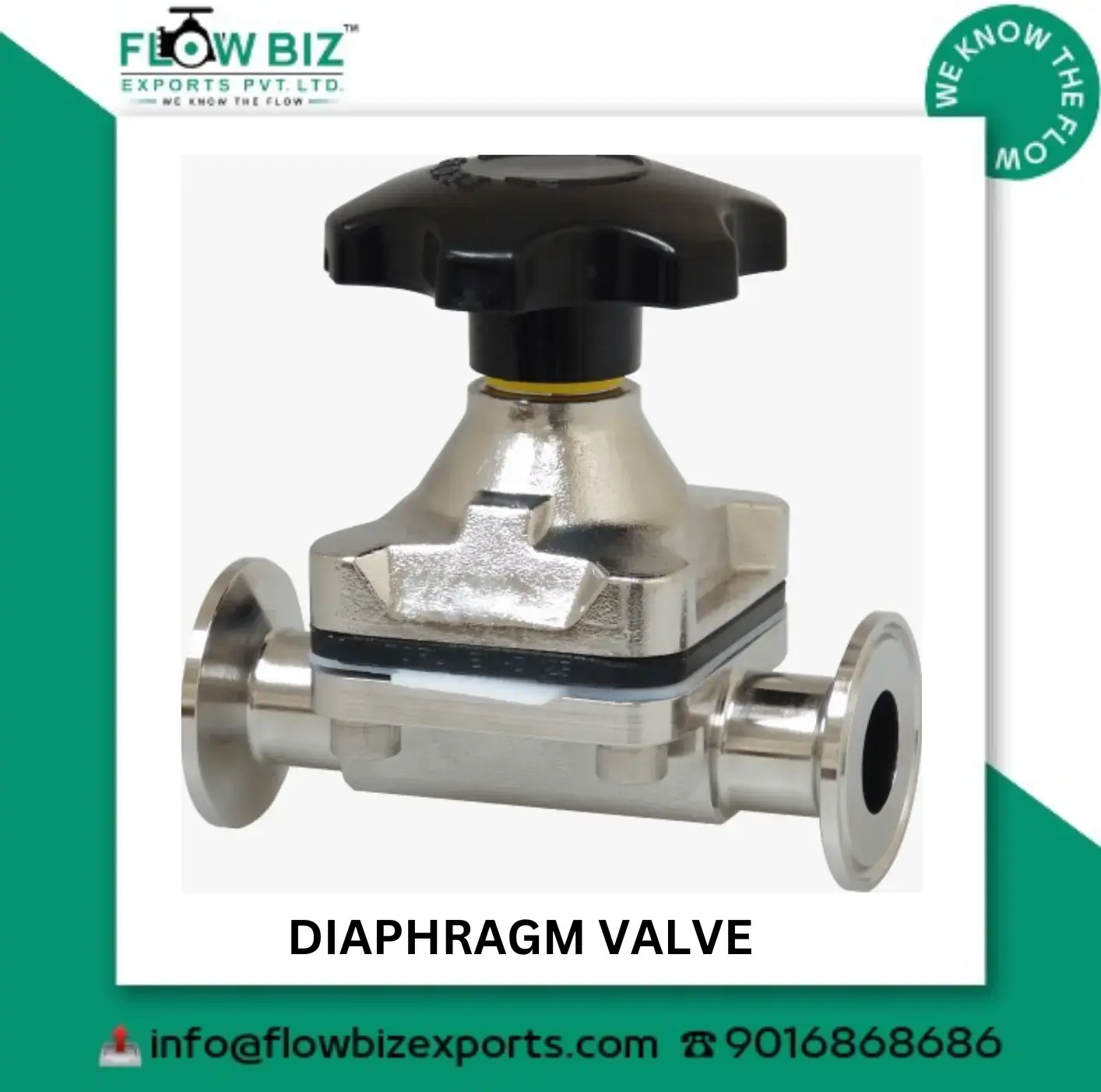

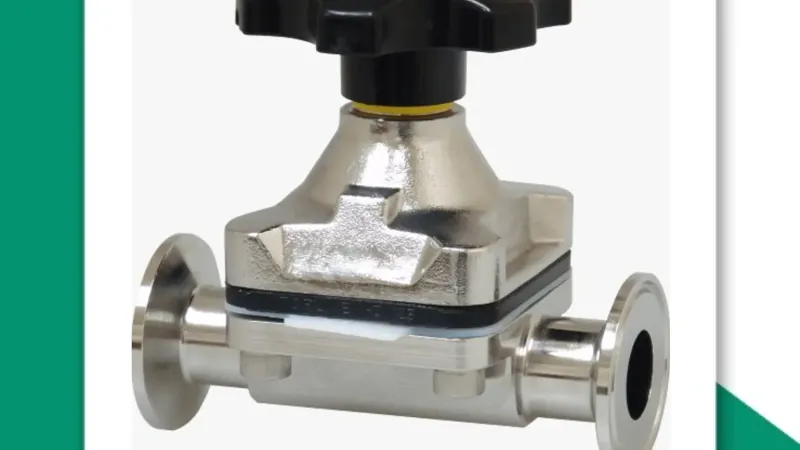

FlowBiz Diaphragm Valves: Precision Control for High-Purity & Corrosive Media
In the sophisticated industrial landscape of 2026, managing abrasive slurries, high-purity fluids, and corrosive chemicals requires a valve that can isolate the working parts from the media. FlowBiz Exports Pvt. Ltd. is the premier Diaphragm Valve Manufacturer in Pune, delivering engineered solutions that prioritize leak-proof integrity and hygienic operation.
Our diaphragm valves are the "Gold Standard" for industries where contamination is a risk or where aggressive chemicals would typically corrode standard valve stems and seats.
The Engineering Advantage: Weir Type vs. Straight-Through
FlowBiz specializes in two distinct diaphragm architectures to suit your specific flow dynamics:
1. Weir Type Diaphragm Valve
The most common design, featuring a raised "weir" or lip that the diaphragm presses against to create a seal.
- Advantage: Excellent for throttling and precise flow control. It uses a smaller diaphragm, extending the service life of the valve under frequent operation.
2. Straight-Through Type
The internal bore is straight, allowing for unobstructed flow when fully open.
- Advantage: Ideal for thick slurries, sludge, and fibrous materials that might clog a weir-type valve. It allows for "pigging" the lines for cleaning.
Key Benefits of FlowBiz Diaphragm Valves
- Total Media Isolation: The diaphragm completely separates the valve's operating mechanism from the fluid, preventing stem corrosion and media contamination.
- Leak-Proof Seating: The flexible diaphragm conforms to the body seat, ensuring a bubble-tight shut-off even in the presence of solids.
- Corrosion & Abrasion Resistance: Available with high-performance linings such as PFA, FEP, Ebonite, or Neoprene to handle the harshest acids and abrasive minerals.
- Minimal Maintenance: With fewer moving parts and no packing glands to leak, maintenance is restricted to simple diaphragm replacement without removing the valve body from the line.
Technical Specifications: 2026 Pune Series
Feature | Details |
Design Standards | BS 5156 / MSS SP-88 |
Testing Standards | API 598 (Zero Leakage) |
Body Materials | Cast Iron, Ductile Iron, WCB, Stainless Steel (CF8/CF8M) |
Lining Options | PFA, FEP, Glass Lined, Soft Rubber, EPDM |
Size Range | 1/2" (15mm) up to 12" (3000mm) |
Operation | Handwheel, Pneumatic Actuator (NC/NO), Electric Actuator |
Serving Pune’s Industrial Hub and the Global Market
From our advanced manufacturing center in Pune, FlowBiz Exports supports the "Make in India" initiative, supplying critical sectors across the nation and overseas. Our valves are highly appreciated in Dubai, Turkey, Africa, Thailand, Vietnam, and South Africa.
Why FlowBiz?
- Quality & Reliability: Every valve undergoes rigorous pressure testing to ensure 100% seal integrity.
- Customization: We offer a wide range of body linings and diaphragm materials (PTFE/EPDM) to match your specific chemical profile.
- Global Compliance: Manufactured to meet BS and MSS standards for global project compatibility.
Is your process facing frequent valve failure due to chemical corrosion or slurry buildup?
Experience the reliability of the FlowBiz Diaphragm Valve. Our Pune-based technical team is ready to provide GA drawings, chemical compatibility charts, and a rapid quote for your project.
Call Now for Technical Support: +91 9016 989898
