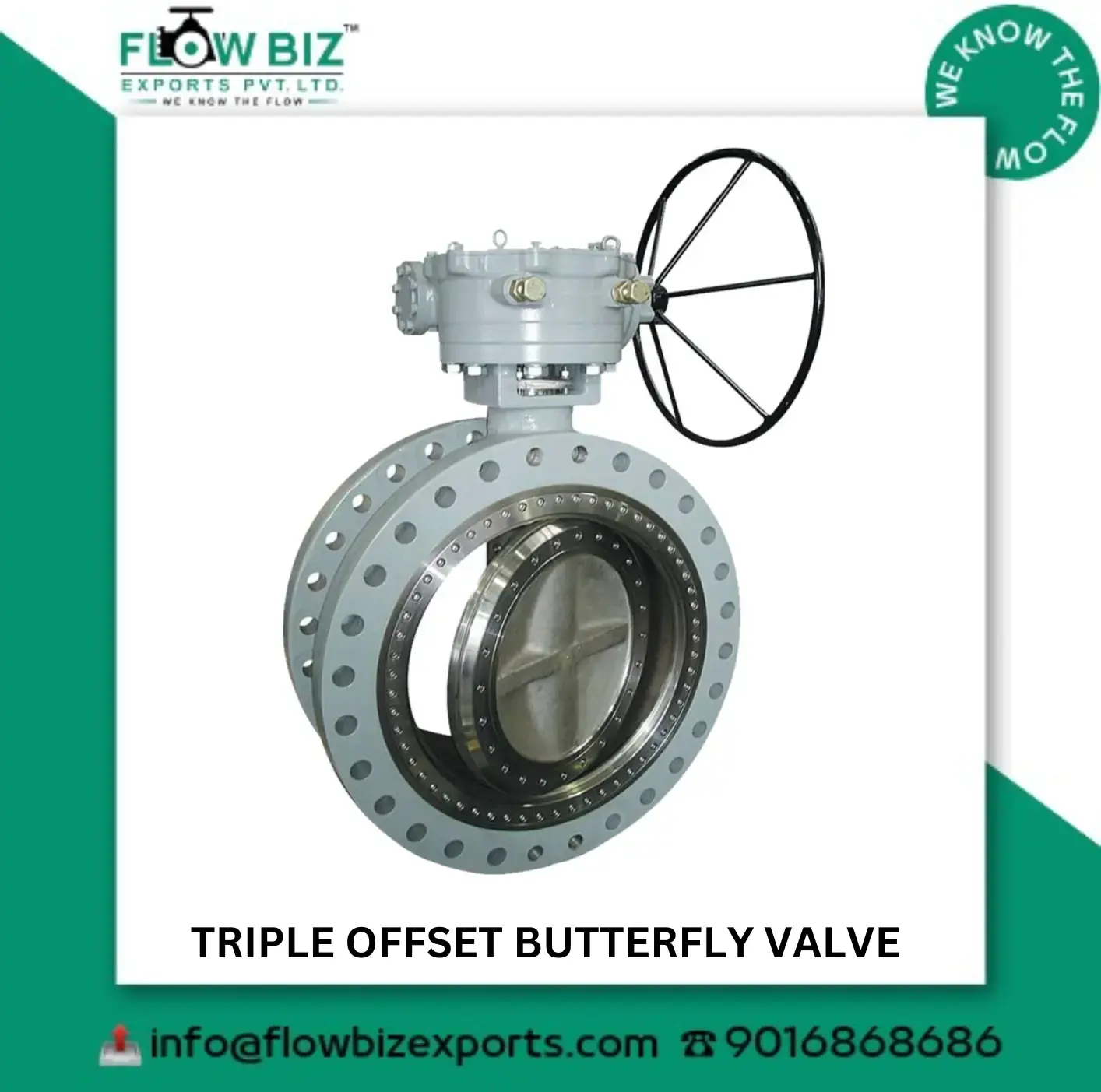

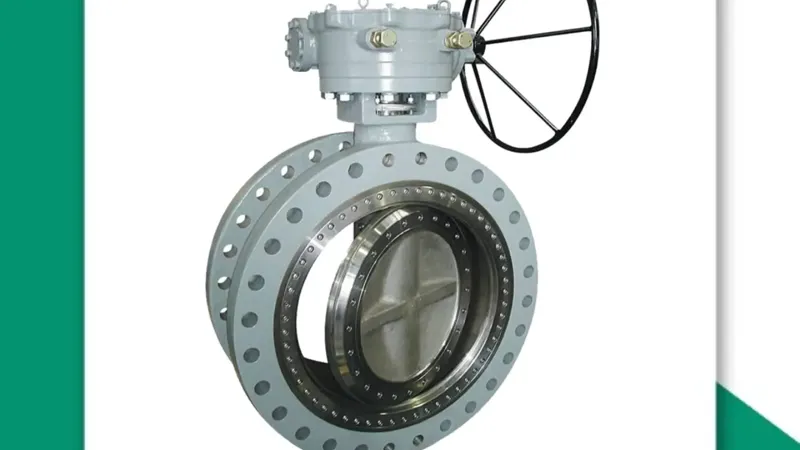

FlowBiz Triple Offset Butterfly Valves: The Pinnacle of Industrial Isolation in Nashik
In the high-stakes industrial environment of 2026, where process safety and environmental compliance are non-negotiable, FlowBiz Exports Pvt. Ltd. stands as the premier Triple Offset Butterfly Valve (TOV) Manufacturer in Nashik.
Traditional butterfly valves often fail in high-cycle, high-pressure, or extreme-temperature applications due to seat friction and elastomer degradation. The FlowBiz Triple Offset design eliminates these failure points using a unique spherical-profile conical sealing system that achieves a bubble-tight, metal-to-metal seal.
The Geometry of Zero Leakage: Understanding the Offsets
The "Triple Offset" designation refers to three distinct geometric displacements that work in harmony to achieve a "cam-action" closure:
- First Offset (Shaft Offset): The shaft is located behind the centerline of the sealing surface.
- Second Offset (Centerline Offset): The shaft is slightly to one side of the pipe's vertical centerline.
- Third Offset (Angular Offset): The seat and disc seal are machined into an asymmetrical conical shape, creating a "stipple" effect where the disc only contacts the seat at the final point of closure.
The Result: Frictionless operation. Because the disc does not "rub" against the seat during travel, mechanical wear is virtually eliminated, exponentially extending the valve's service life compared to concentric or double-offset designs.
Strategic Advantages of FlowBiz TOVs
- Metal-to-Metal Bubble-Tight Shut-off: Engineered to meet API 598 zero-leakage standards, even in volatile gas services.
- Bi-Directional Sealing: Provides a high-integrity seal regardless of the flow direction, offering total flexibility in piping design.
- Extreme Condition Resilience: Our TOVs handle pressures up to Class 900# and temperatures ranging from cryogenic (-196°C) to superheated steam (600°C+).
- Low Operating Torque: The lack of friction allows for smaller pneumatic or electric actuators, reducing overall system weight and energy consumption.
- Fire-Safe Integrity: Inherently fire-safe due to the all-metal construction, certified to API 607 standards.
Technical Specifications: 2026 Nashik Series
FlowBiz TOVs are manufactured using advanced CNC machining and laser-guided alignment to ensure every valve meets global engineering benchmarks.
Feature | Details |
Design Standards | API 609 / ASME B16.34 / EN 593 |
Testing Standards | API 598 (Zero Leakage) / API 607 (Fire-Safe) |
Size Range | 3" (80mm) to 80" (2000mm) |
Pressure Class | Class 150#, 300#, 600#, 900# |
Body Materials | WCB, CF8, CF8M, Duplex Steel, Hastelloy, Monel |
Seal Ring | Laminated SS + Graphite or Solid Metal |
Serving Nashik’s Industrial Hub and the Global Market
From our state-of-the-art manufacturing center in Nashik, FlowBiz Exports delivers "Make in India" precision to the world's most critical sectors. Our valves are trusted by technical heads in Dubai, Turkey, Africa, Southeast Asia, and the USA.
Why FlowBiz?
- Engineering Excellence: Advanced CAD/CAM design and CFD (Computational Fluid Dynamics) analysis.
- Compliance: Every valve undergoes rigorous hydro and air testing to ensure 100% field reliability.
- Rapid Quote System: Get Easy and Quick Quotes for your high-performance isolation needs.
Is your process facing frequent shutdowns due to leaking isolation valves in high-temperature or high-pressure zones?
Upgrade to the FlowBiz Triple Offset Butterfly Valve. Our Nashik-based technical team is ready to provide custom torque calculations, material compatibility charts, and a rapid quote for your specific application.
Call Now for Technical Support: +91 9016 989898
