Dual Plate Check Valve Manufacturer: FlowBiz Exports
Are you looking to optimize your piping system with a valve that is 80% lighter and significantly more efficient than a traditional swing check valve? FlowBiz Exports is a premier Dual Plate Check Valve manufacturer, providing world-class non-return solutions designed for high-performance industrial applications.
Our dual plate design is engineered to solve the common issues of water hammer, high pressure drop, and excessive weight, making it the preferred choice for modern chemical, oil, and water treatment plants.
Dual Plate Check Valve vs. Swing Check Valve: Why Upgrade?
Understanding the design evolution is key to system efficiency. Below is a technical comparison:
1. Design and Operation

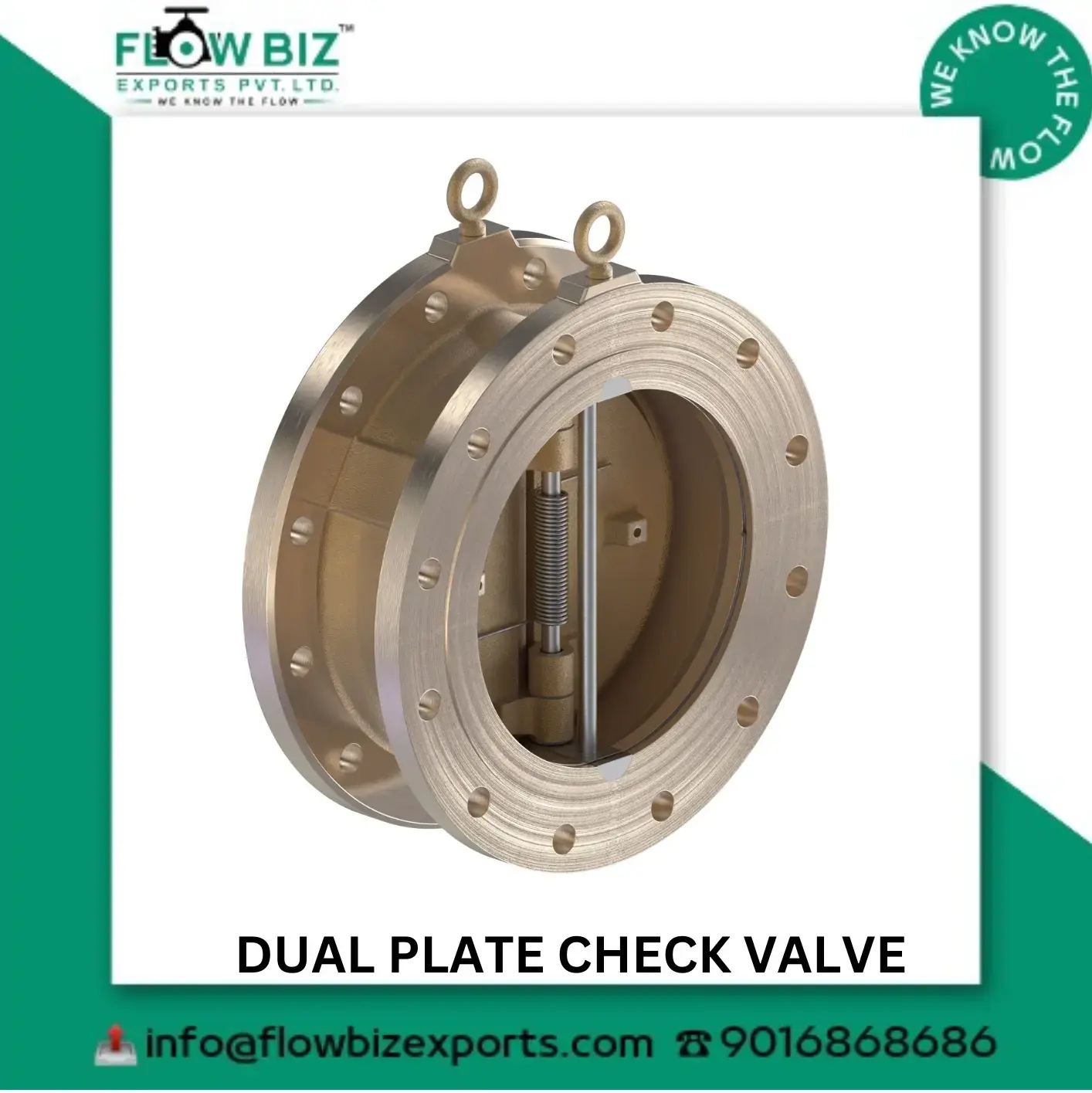

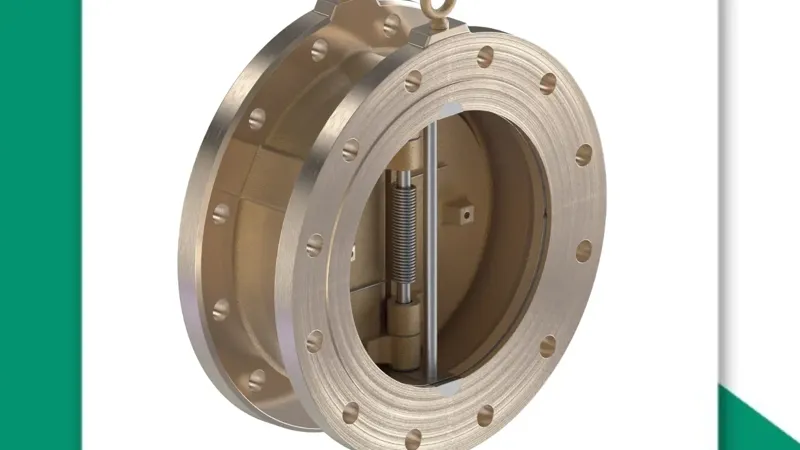

- Dual Plate Check Valve: Features two semi-circular plates hinged at the center. These plates open with forward flow and close instantly via spring-loaded mechanisms before flow reversal occurs, preventing slamming.
- Swing Check Valve: Uses a single, heavy hinged disc that swings in a 90-degree arc. Its "reactive" closure often results in loud slamming and water hammer.
2. Flow Characteristics & Pressure Drop
- Efficiency: The dual plate design offers a straight-through flow path, resulting in minimal turbulence and significantly lower pressure loss.
- Resistance: Swing check valves often impede the flow path, creating higher resistance ($C_v$) and potential energy loss in pumping systems.
3. Size and Weight Advantage
- Dual Plate: A compact, "wafer" design that is roughly 1/4th the weight and 1/5th the length of a traditional flanged swing check valve.
- Swing Check: Bulkier and heavier, often requiring additional pipe supports and larger installation footprints.
4. Installation Flexibility
- Dual Plate: Can be installed in any orientation (horizontal or vertical-upward) thanks to its spring-assisted closure.
- Swing Check: Generally restricted to horizontal lines to ensure gravity helps the disc seat properly.
[Image comparing dual plate check valve vs swing check valve dimensions]
Types of Dual Plate Check Valves We Manufacture
FlowBiz Exports provides various body styles to match your specific piping architecture:
- Wafer Type: The most compact design, clamped between two pipe flanges.
- Lug Type: Features threaded bolt holes for independent attachment to each flange, allowing for end-of-line service.
- Double Flanged: Ideal for large diameter pipelines where traditional flanged connections are required for structural integrity.
The FlowBiz Global Advantage
As a dominant valves and flow control manufacturer, FlowBiz Exports is a trusted partner for critical sectors worldwide. Our valves are appreciated by overseas customers in Dubai, Turkey, Africa, Vietnam, and Thailand for several reasons:
- Precision Engineering: Manufactured to meet API 594 and tested per API 598 standards.
- Material Diversity: Available in Cast Iron, Carbon Steel, Stainless Steel (CF8/CF8M), and specialized alloys for corrosive environments.
- Comprehensive Portfolio: We are your one-stop supplier for Gate, Globe, Ball, Butterfly, and PFA Lined Valves, as well as Y-Type and Basket Strainers.
Request Your Quick Quote Today!
Efficiency and reliability are the hallmarks of the FlowBiz brand. We offer Easy and Quick Quotes at the best market rates for both domestic and international projects. Whether you are designing a compact desalination skid or a high-pressure refinery pipeline, our technical team is ready to assist.
Contact FlowBiz Exports now – Your trusted partner for high-performance Dual Plate Check Valves.
