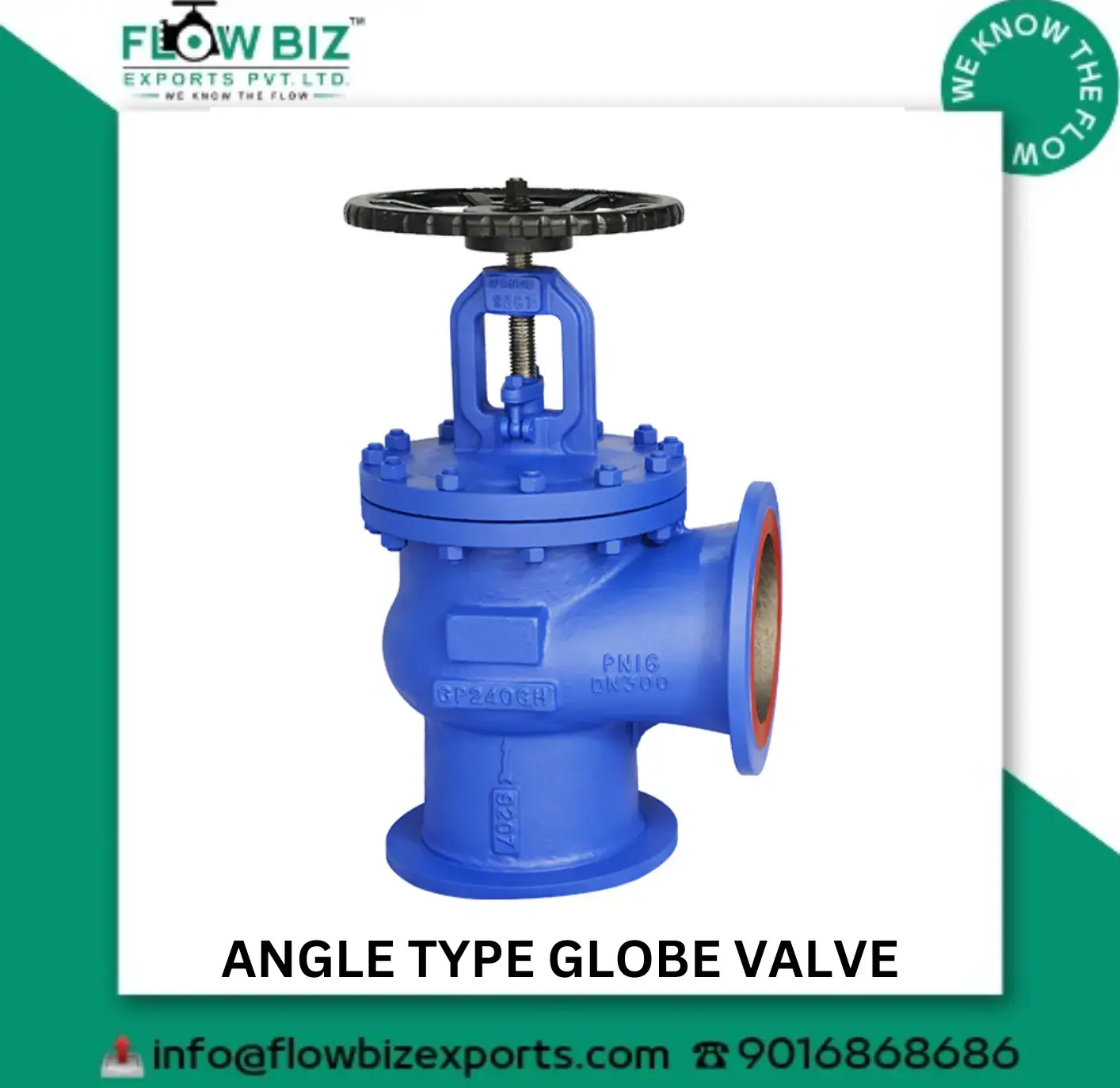

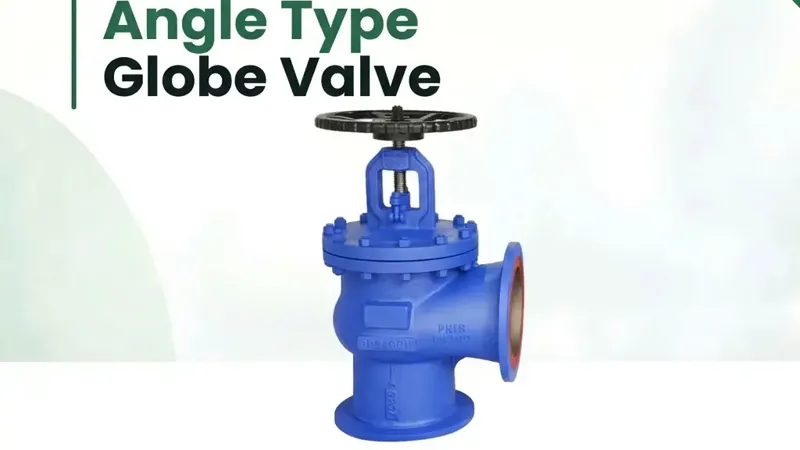

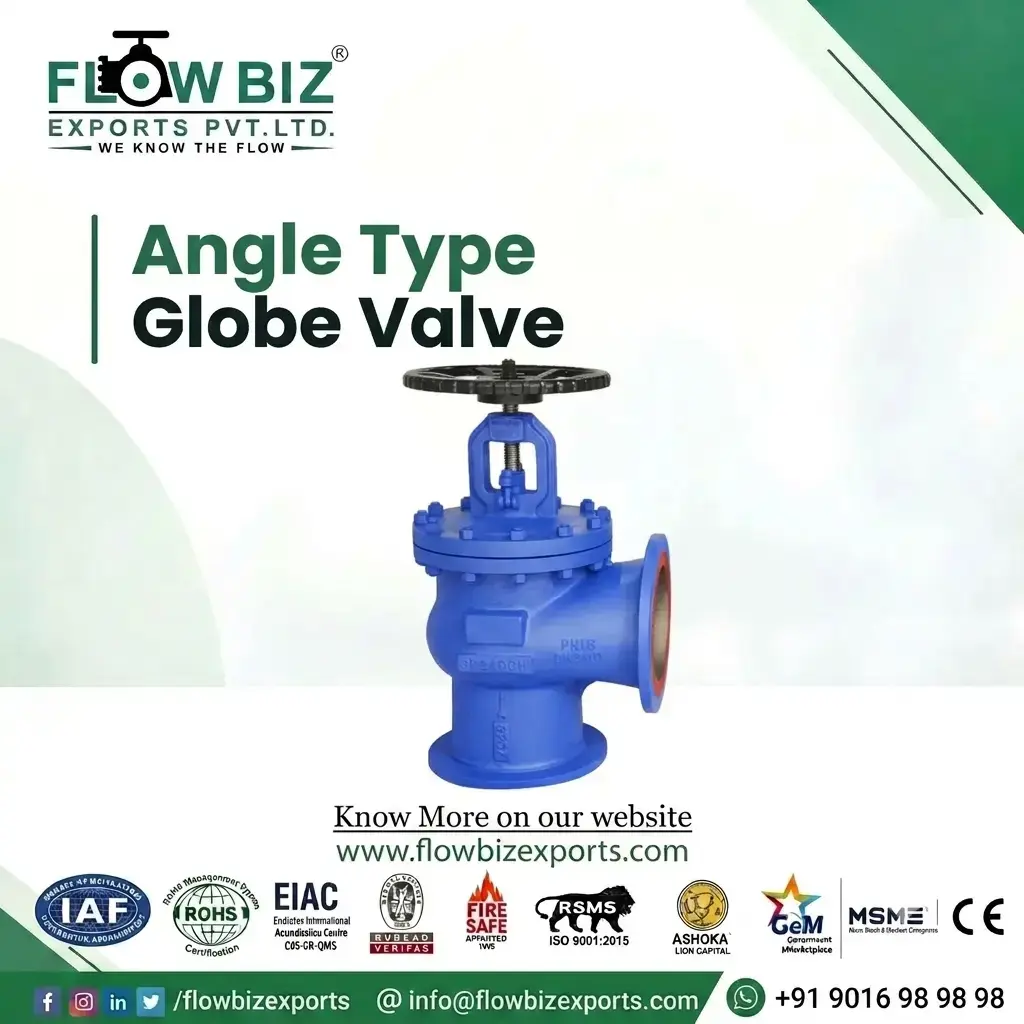

Angle Type Globe Valve Manufacturer in Ahmedabad: FlowBiz Exports
Are you looking for a valve that combines efficient throttling with a space-saving 90-degree turn? FlowBiz Exports is the leading Angle Type Globe Valve manufacturer in Ahmedabad, providing robust solutions for steam, gas, and liquid services. Unlike standard straight-pattern valves, the angle globe valve is engineered to reduce pressure drop and erosive wear, making it the top choice for Gujarat's power, chemical, and pharmaceutical sectors.
Technical Advantages of Angle Type Globe Valves
The unique geometry of the angle globe valve provides several operational benefits:
- Space-Saving Design: By functioning as both a valve and a 90-degree elbow, it eliminates one pipe fitting and reduces the overall footprint of the piping manifold.
- Improved Flow Characteristics: The fluid changes direction only once (90°) compared to the two turns required in a standard globe valve, leading to a lower pressure drop and reduced turbulence.
- Reduced Wear and Tear: The streamlined flow path minimizes the "impingement" effect on the valve body, significantly extending the life of the seat and disc in high-velocity applications.
- Easy Maintenance: The top-entry design allows for quick inspection and replacement of internal trims without removing the valve body from the line.
- Versatility: Ideally suited for pulsating flow and severe throttling services where standard valves might fail.
Types of Angle Type Globe Valves We Manufacture
FlowBiz Exports offers a variety of configurations to meet specific process requirements:
- Straight Pattern Angle Globe Valve: The standard 90-degree configuration for general industrial use.
- Y-Pattern Angle Globe Valve: Optimized for even lower pressure drop and smoother flow transitions.
- T-Pattern Angle Globe Valve: A specialized variant for specific manifold installations.
- Angle Pattern Stop Check Valve: A dual-function valve that acts as a globe valve for regulation and a check valve to prevent backflow.
Material & Compliance Range
We manufacture angle valves in a wide array of high-grade materials to withstand Ahmedabad’s diverse industrial atmospheres:
- Carbon Steel: WCB, WCC (for general steam and oil service).
- Stainless Steel: CF8, CF8M, CF3, CF3M (for corrosive chemical and pharma lines).
- Alloy Steel: WC6, WC9 (for high-temperature power generation).
- Exotic Alloys: Duplex, Monel, and Hastelloy for specialized chemical processing.
Compliance Standards: ANSI B16.34, API 600, BS 1873, and IBR (Indian Boiler Regulations) certified.
Serving Ahmedabad’s Industrial Corridor
- Chemical & Dyes (Vatva GIDC): Providing acid-resistant stainless steel angle valves for precise dosing and throttling.
- Power & Steam (Naroda/Odhav): Supplying IBR-approved valves for boiler blow-down and high-pressure steam regulation.
- Pharma & Bio-Tech (Sanand/Changodar): Delivering high-purity valves with superior surface finishes for sterile process lines.
Why Choose FlowBiz Exports?
FlowBiz is a dominant manufacturer of a complete range of industrial accessories across India and global markets like Dubai, Turkey, and Africa:
- Isolation & Control: Gate, Globe, Ball, Butterfly, and Diaphragm Valves.
- Non-Return: Dual Plate, Swing Check, and Non-Slam NRV Valves.
- Specialized: Knife Edge Gate, Needle, and PFA/FEP Lined Valves.
- Filtration: Y-Type, Basket, and Conical Strainers.
Request Your Quick Quote Today!
Maximize your piping efficiency with FlowBiz engineering. We offer Easy and Quick Quotes at the best market rates in Ahmedabad and globally.
Contact FlowBiz Exports now – Your trusted partner for high-performance Angle Type Globe Valves.
