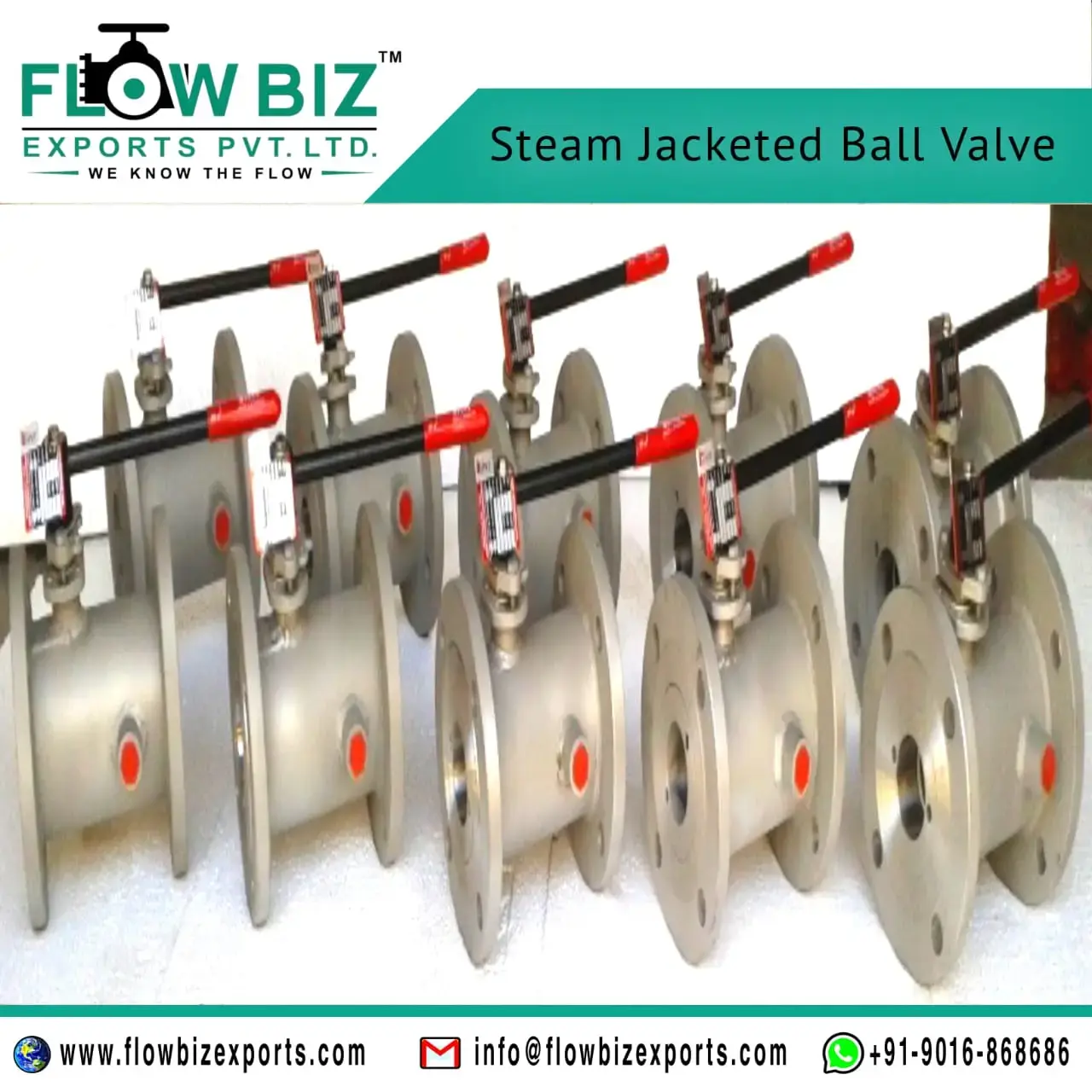

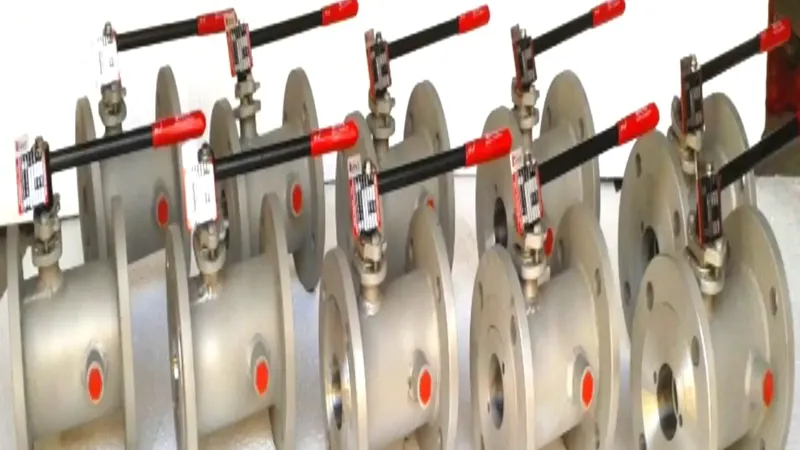

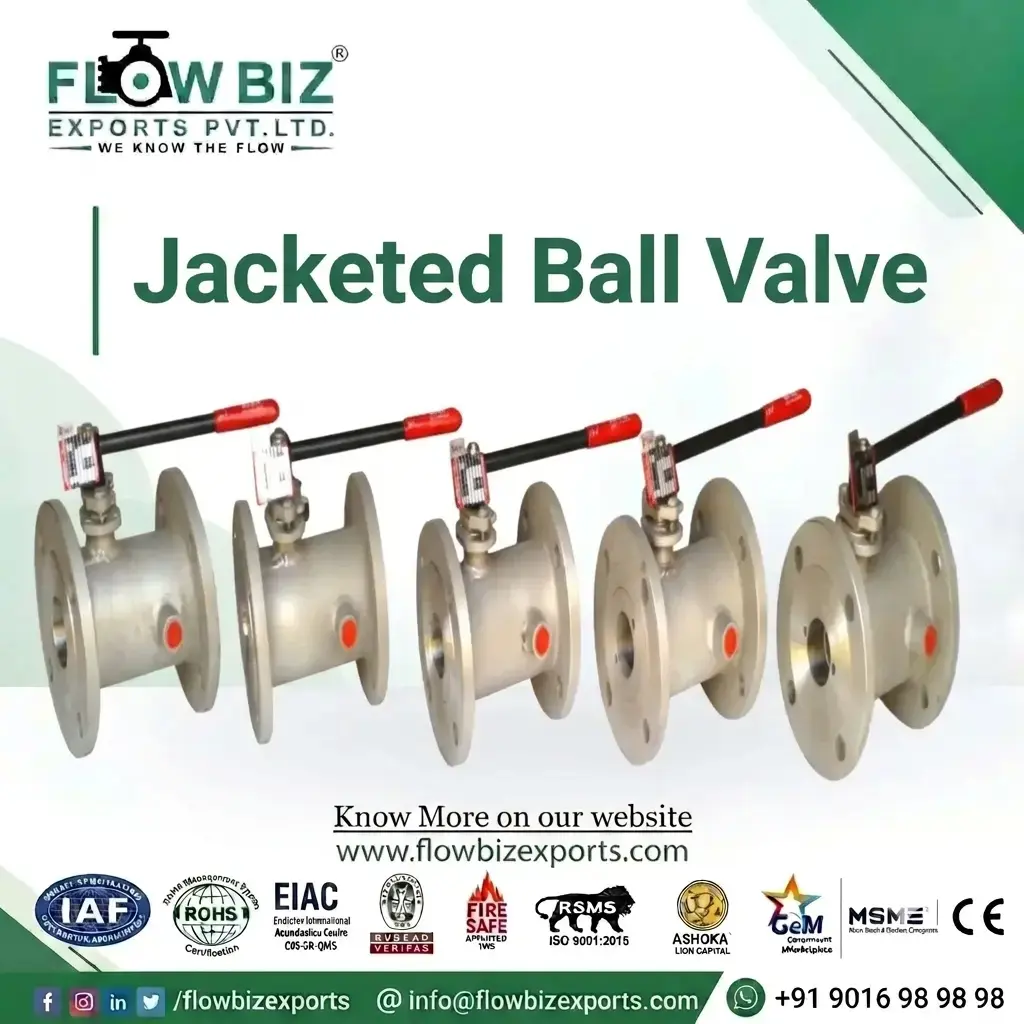

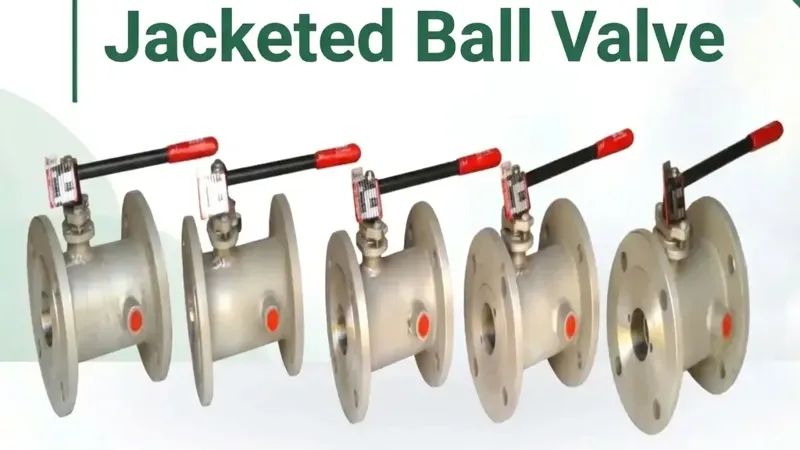

Jacketed Ball Valve Manufacturer in Mumbai: FlowBiz Exports
Are you struggling with media crystallization or solidification in your pipelines? FlowBiz Exports is the premier Jacketed Ball Valve manufacturer in Mumbai, specializing in "Oversize Flange" designs. Our jacketed valves allow hot oil or steam to circulate around the valve body, keeping your process media in a liquid state while providing the reliable quarter-turn shut-off performance FlowBiz is known for.
Technical Design: The FlowBiz "Oversize" Advantage
A standard jacketed valve often faces clearance issues during installation. FlowBiz solves this by utilizing modified body designs with oversize flanges:
- Standard Configuration: For a 2” x 3” Jacketed Ball Valve, the nominal bore (internal flow path) is 2” (DN 50), but the flange size is increased to 3” (DN 80).
- The Benefit: This design provides ample space for bolting clearance and ensures the jacket covers the valve body completely from one flange to the other, eliminating "cold spots" where media could solidify.
- Full Jacket Coverage: The heating jacket is welded directly to the body, allowing for the circulation of heating media (Steam, Thermic Fluid, or Hot Water) up to the flange faces.
Why FlowBiz Jacketed Valves are Essential
- Viscosity Control: Prevents sensitive media from thickening or freezing within the valve.
- Durability: Heavy-duty construction designed to handle thermal expansion and contraction cycles.
- Zero Leakage: Precision-ground balls and high-temperature seats ensure a bubble-tight seal.
- Versatility: Available in Stainless Steel (CF8/CF8M) and Carbon Steel (WCB) to suit corrosive or high-pressure steam environments.
Also Specializing in High-Performance Butterfly Valves
Beyond our jacketed range, FlowBiz is a globally recognized manufacturer of Butterfly Valves, serving critical sectors in India and internationally:
Butterfly Valve Type | Key Features |
Triple Offset | Metal-to-metal seating for high-pressure/high-temp service. |
PTFE / FEP Lined | Best for highly corrosive chemical and acid lines. |
Pharma Grade | Polished internals for sterile pharmaceutical processes. |
Double Flange / Lug | Robust designs for water treatment and large-scale utilities. |
Damper Valve | Specifically designed for gas and air flow regulation. |
Serving Mumbai’s Global Industrial Base
From our manufacturing and supply hub in Mumbai, we serve:
- Refineries & Bitumen Plants (Mahul): Essential for maintaining the flow of heavy oils and asphalt.
- Chemical & Resin Units (Ambernath): Preventing polymer solidification during the manufacturing process.
- Food & Pharma (Dombivli/Taloja): Precise temperature control for chocolate, fats, and chemical precursors.
- Global Markets: Our valves are appreciated by customers in Dubai, Turkey, Africa, Vietnam, and South Africa, benefiting from our proximity to JNPT for rapid international shipping.
One-Stop Flow Control Partner
FlowBiz Exports provides a comprehensive range of industrial accessories:
- Isolation: Gate, Globe, Ball, and Plug Valves.
- Non-Return: Dual Plate, Non-Slam, and Wafer Type NRVs.
- Specialized: Knife Edge Gate, Needle, and Diaphragm Valves.
- Filtration: Y-Type, Basket, and Conical Strainers.
Request Your Quick Quote Today!
Eliminate downtime caused by media solidification. FlowBiz Exports provides Easy and Quick Quotes for custom jacketed solutions and our full range of butterfly valves.
Contact FlowBiz Exports now – Your trusted partner for temperature-controlled flow solutions in Mumbai.
