PTFE Lined Butterfly Valve Manufacturer: FlowBiz Exports

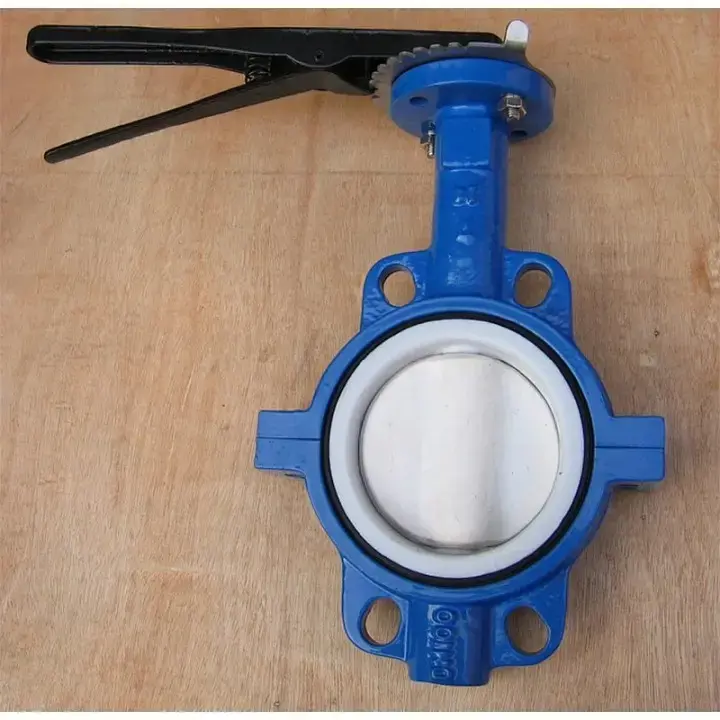

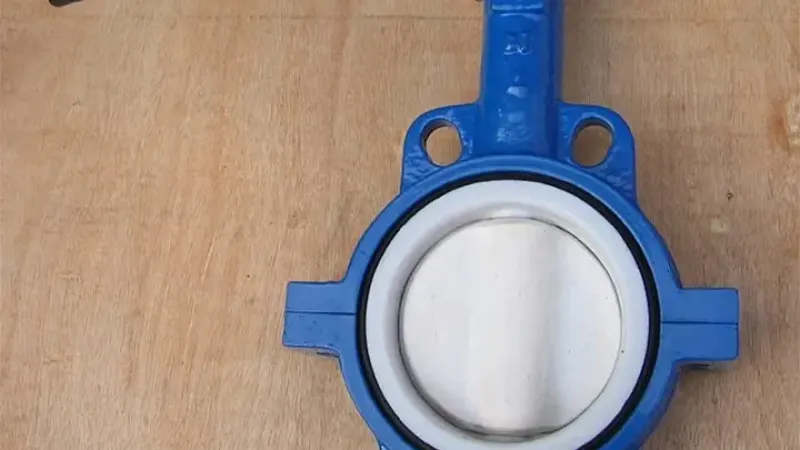

The FlowBiz Lined Butterfly Valve is a high-performance flow control solution specifically built for services involving reactive chemicals, acids, and alkalis. By lining the entire internal wetted body and the disc (flapper) with fluoropolymers like PFA or FEP, we ensure that the metallic components are completely shielded from corrosion, providing a cost-effective alternative to expensive exotic alloy valves.
Technical Specifications
Component | Specification Details |
Size Range | 50 mm to 450 mm |
Body Materials | S.G. Iron, WCB, CF8 (SS304), or CF8M (SS316) |
Body Lining | FEP / PFA (50 mm–200 mm); PTFE (above 200 mm) |
Flapper (Disc) | CF8 (SS304), CF8M (SS316), or WCB |
Flapper Lining | FEP / PFA (3 mm to 5 mm thickness) |
Temperature | FEP: -20°C to 180°C | PFA: -20°C to 230°C |
Pressure Rating | Class 150 (Face-to-Face as per Class 150) |
Rigorous Testing Standards
Safety and integrity are our priorities. Every valve undergoes a three-stage testing process:
- Hydrostatic Test: $11\text{ kg/cm}^2$ to Full Vacuum (as per BS/API).
- Pneumatic Test: $7\text{ kg/cm}^2$ for air-tightness.
- Spark Test: 15 KVA DC to ensure the lining is free from pinholes or defects.
Key Features & Advantages
- Compact Two-Piece Design: Manufactured as per BSEN and API standards for easy installation and space efficiency.
- 100% Tight Shut-Off: Provides bidirectional, bubble-tight sealing across all pressure ranges.
- Easy Torque Operation: Both shafts are mounted in bearing supports, ensuring smooth rotation and reduced manual or automated effort.
- Gasket-Free Installation: The molded lining acts as a flange gasket, eliminating the need for additional jointing materials during installation.
- Full Flow Control: Optimized for both high-cycle on/off service and moderate throttling in quarter-turn ($90^{\circ}$) operations.
Serving India’s Industrial Landscape
FlowBiz is the premier supplier of Lined Butterfly Valves to critical zones, including:
- Gujarat: Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Bharuch, and Ankleshwar.
- Maharashtra: Mumbai, Pune, Nashik, Aurangabad, Thane, and Nagpur.
- Pan-India: Indore, Bhopal, Chennai, Coimbatore, Salem, and beyond.
Contact Information
Reach out to the FlowBiz technical team for project-specific consultations and quick quotes:
- Website: www.flowbizexports.com
- Email: info@flowbizexports.com
- Contact: +91 8879358242 / +91 9016989898
Request Your Quick Quote Today!
Upgrade your corrosive fluid handling system with the reliability of FlowBiz engineering. We provide Easy and Quick Quotes for both domestic projects and international exports.
Contact FlowBiz Exports Pvt. Ltd. now – Your trusted partner for PTFE/PFA Lined Butterfly Valves.
