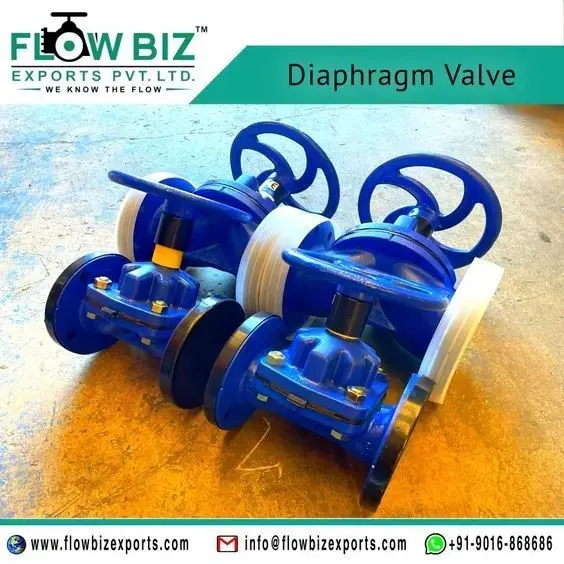

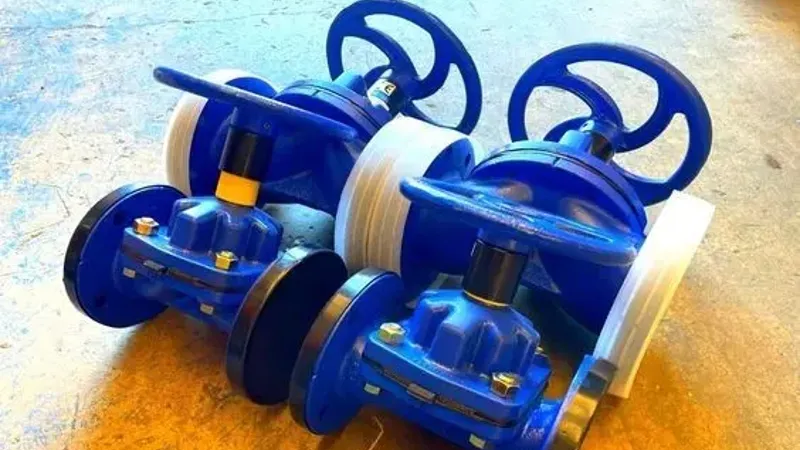

PTFE Lined Diaphragm Valve

PTFE Lined Diaphragm Valve Manufacturer: FlowBiz Exports

The FlowBiz Lined Diaphragm Valve is specifically engineered for services involving highly corrosive acids, alkalis, and slurry-based media. By combining the structural strength of a cast body with a thick FEP or PFA lining, we provide a hermetically sealed flow control solution that eliminates metallic contact with the process fluid.

Technical Specifications

Component

Specification Details

Size Range

25 mm to 250 mm

Body Materials

S.G. Iron, WCB, CF8 (SS304), or CF8M (SS316)

Bonnet

S.G. Iron

Lining Material

FEP (180°C) or PFA (230°C)

Lining Thickness

3 mm to 5 mm

Diaphragm (Pin Type)

PTFE backed by Neoprene Rubber

Design Standard

Two Piece as per BS 5156

Face to Face

As per ASME B16.10 Class 150

Flange Drilling

As per ANSI B16.5

Rigorous Testing & Quality Assurance

To guarantee 100% safety in hazardous lines, every valve undergoes a comprehensive three-stage inspection:

  • Hydrostatic Test: $11\text{ kg/cm}^2$ to Full Vacuum (as per BS/API standards).
  • Pneumatic Test: $7\text{ kg/cm}^2$ for air-tight integrity.
  • Spark Test: 15 KVA DC to verify that the lining is free from pinholes or microscopic defects.

Key Features & Advantages

  • Exceptional Corrosion Resistance: The FEP/PFA lining protects the body against concentrated acids like Sulfuric ($H_2SO_4$) and Hydrochloric ($HCl$).
  • Leak-Free Stem Sealing: The diaphragm acts as a static seal, isolating the valve's internal working parts (stem and bonnet) from the process media.
  • Zero Contamination: Ideal for high-purity processes where fluid contact with metal must be avoided.
  • Bidirectional Flow: Designed to handle flow and provide bubble-tight shut-off in both directions.
  • Longer Service Life: High-grade PTFE backed by resilient Neoprene rubber ensures the diaphragm can withstand high-cycle operations without fatigue.

Serving Industrial Hubs Across India

FlowBiz is the leading supplier of Lined Diaphragm Valves to critical industrial zones:

  • Gujarat: Ahmedabad, Vapi, Valsad, Surat, Bharuch, Ankleshwar.
  • Maharashtra: Mumbai, Pune, Nashik, Aurangabad, Nagpur, Thane.
  • South & Central India: Chennai, Coimbatore, Indore, Bhopal, Salem.

Contact Information

Reach out to the FlowBiz technical team for expert selection guidance and quick quotes:

Request Your Quick Quote Today!

Secure your hazardous fluid systems with the reliability of FlowBiz engineering. We provide Easy and Quick Quotes for domestic infrastructure and international chemical projects.

Contact FlowBiz Exports Pvt. Ltd. now – Your leading manufacturer for PTFE Lined Diaphragm Valves.
