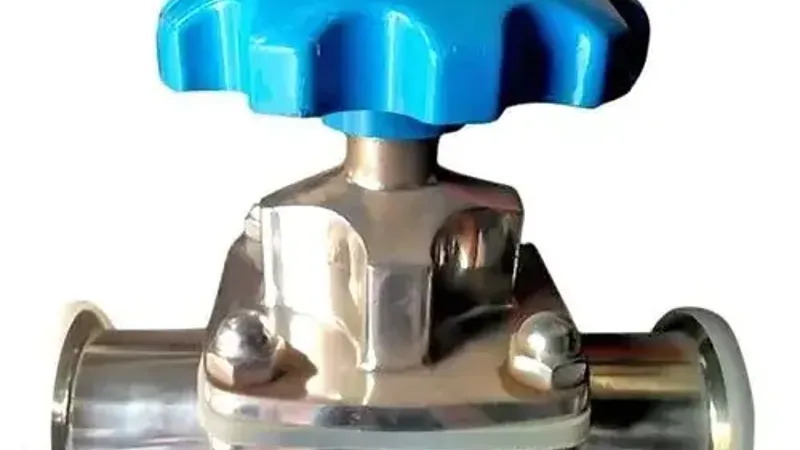

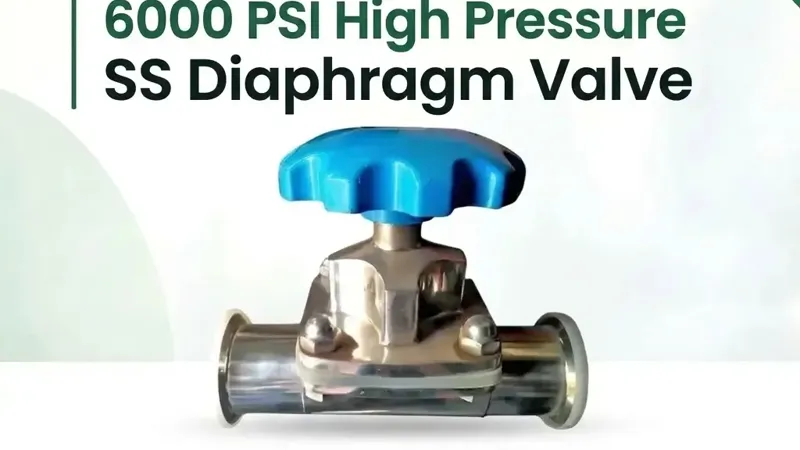

Pharma Diaphragm Valve Manufacturer: FlowBiz Exports
The FlowBiz Pharma Diaphragm Valve is a weir-style valve designed specifically to eliminate "dead legs" and prevent bacterial growth in hygienic systems. By utilizing a flexible diaphragm to isolate the working parts of the valve from the process media, it ensures that the fluid remains uncontaminated and the system maintains total integrity.
Technical Specifications
Feature | Specification Details |
Size Range | 1/2 inch to 3 inches (15 mm to 80 mm) |
End Connection | Tri-Clover (TC) Ends (Hygienic standard) |
Body Material | Mirror-Polished Stainless Steel (SS316L) |
Operation | Manual (Handwheel) or Pneumatic (with Solenoid/Control Tops) |
Seal Type | Aseptic body seal with weir-style seat |
Key Features & Advantages
- Aseptic Design: The closed-bonnet design completely disconnects the internal valve mechanisms from the outside environment, making it ideal for sterile applications.
- Zero Contamination: The diaphragm acts as a permanent seal body, ensuring that no lubricants or external contaminants can enter the flow path.
- Prevention of Over-Compression: The precision-engineered relationship between the body and the pressure plate prevents the diaphragm from being over-tightened, significantly extending its service life.
- Hygienic Flow Path: The mirror-polished internal surface (Ra < 0.4 µm) prevents particle entrapment and allows for effective CIP (Clean-In-Place) and SIP (Steam-In-Place) sterilization.
- Precise Control: Available in both manual and pneumatic variants, with options for solenoid valves and control tops for automated process integration.
Specialized Pharmaceutical Applications
FlowBiz Pharma Diaphragm Valves are engineered for the most sensitive areas of production:
- WFI (Water For Injection) Systems: Maintaining the purity of pharmaceutical-grade water.
- Fermentation & Biotech: Controlling the flow of cell cultures and growth media.
- CIP/SIP Systems: Handling high-temperature steam and cleaning chemicals.
- Filling Lines: Providing precise shut-off and flow control for final product packaging.
Why Choose FlowBiz Exports?
As a reputable manufacturer and global supplier, FlowBiz provides:
- Hygienic Excellence: Every valve is mirror-polished and tested to meet international pharmaceutical standards.
- Customization: We offer a range of diaphragm materials (EPDM, PTFE/EPDM backed) to suit your specific chemical and thermal requirements.
- Global Reach: Trusted by pharmaceutical hubs in India and overseas markets across Dubai, Turkey, Africa, and Southeast Asia.
Contact Information
Reach out to the FlowBiz technical team for expert guidance on aseptic valve selection and quick quotes:
- Website: www.flowbizexports.com
- Email: info@flowbizexports.com
- Contact: +91 8879358242 / +91 9016989898
Request Your Quick Quote Today!
Secure your sterile processes with the precision of FlowBiz Pharma Diaphragm Valves. We provide Easy and Quick Quotes for both standard hygienic units and custom-automated valve assemblies.
Contact FlowBiz Exports Pvt. Ltd. now – Your trusted partner for Aseptic Pharma Diaphragm Valves.
