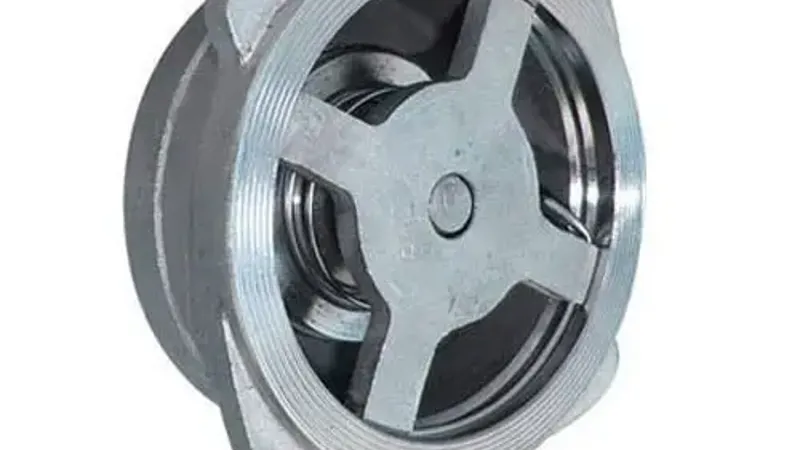

Non-Slam Disc Check Valve

Disc Check Valve (Wafer Type) Manufacturer: FlowBiz Exports

The FlowBiz Disc Check Valve is a spring-loaded, unidirectional valve that fits between two pipeline flanges. Its "wafer" design makes it significantly lighter and shorter than traditional swing check valves, reducing both the initial cost and the structural support required for the pipeline.

The disc is held against the seat by a spring; as the upstream pressure exceeds the spring force, the disc moves away from the seat to allow flow. When the flow stops or reverses, the spring assists in a quick, silent closure to prevent water hammer.

Technical Specifications

Feature

Specification Details

Wafer Type Size Range

1/2 inch to 12 inches (15 mm to 300 mm)

Screwed End Size Range

1/2 inch to 4 inches (15 mm to 100 mm)

Design

Compact Wafer Design (Fits between flanges)

Installation

Horizontal or Vertical (Universal mounting)

Applicable Media

Oil, Gas, Steam, Condensates, Hot/Cold Water

Key Features & Advantages

  • Compact & Lightweight: The wafer design minimizes the "Face-to-Face" dimension, making it ideal for skid-mounted systems and tight engine rooms.
  • Spring-Assisted Closure: Ensures the valve closes quickly before flow reversal can gain momentum, effectively mitigating hydraulic shock (water hammer).
  • Low Pressure Drop: The streamlined disc design allows for high flow capacity ($C_v$) with minimal energy loss.
  • Universal Mounting: Unlike gravity-style swing check valves, the spring-loaded disc allows for installation in any orientation—horizontal, vertical-up, or vertical-down.
  • Diverse Material Options: Available in various grades of Stainless Steel and Carbon Steel to withstand corrosive chemical and steam services.

Industrial Applications

FlowBiz Brand Disc Check Valves are the preferred choice for critical infrastructure:

  • HVAC & Cooling: Hot and cold water systems, refrigeration, and air conditioning.
  • Process Industries: Chemical processing, food and beverage, and pharmaceutical aseptic lines.
  • Energy: Power generation, steam systems, and condensate return lines.
  • Pulp & Paper: Handling water and fibrous media in processing plants.
  • Textiles: Managing dye-water and high-temperature processing fluids.

Global Supply & Excellence

As a leading manufacturer and exporter, FlowBiz Exports delivers internationally certified valve solutions to major markets:

  • India: Ahmedabad, Mumbai, Pune, Chennai, and beyond.
  • International: Dubai, Turkey, Africa, Southeast Asia, and Europe.

Contact Information

Reach out to the FlowBiz technical team for sizing guidance, spring tension customization, and quick quotes:

Request Your Quick Quote Today!

Secure your flow control systems with the precision of FlowBiz Disc Check Valves. We provide Easy and Quick Quotes for both standard industrial units and high-volume project requirements.

Contact FlowBiz Exports Pvt. Ltd. now – Your premier manufacturer for Wafer Disc Check Valves.
