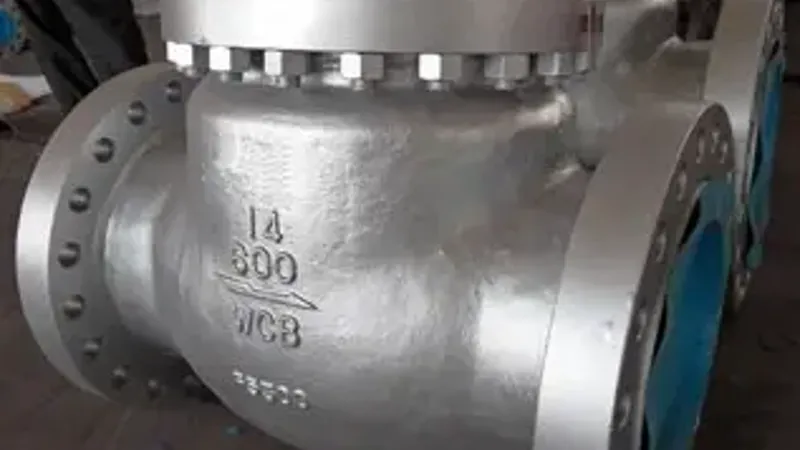

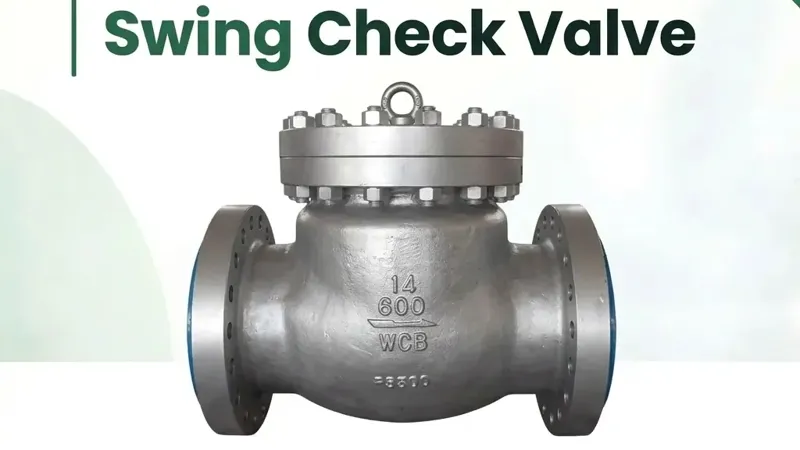

Swing Check Valve

Cast Steel Swing Check Valve Manufacturer: FlowBiz Exports

The FlowBiz Swing Check Valve is an automatic, self-actuating valve designed to prevent flow reversal in piping systems. The valve features a disc mounted on a hinge or shaft that "swings" off the seat to allow forward flow. When the fluid velocity decreases or the flow reverses, gravity and the back-pressure of the media swing the disc back onto the seat, creating a tight seal.

Technical Specifications

Feature

Specification Details

Size Range

2 inch to 24 inches (50 mm to 600 mm)

Pressure Class

ASME Class 150 to Class 600

Max Pressure

Up to 1500 PSI (106 bar)

Max Temperature

Up to 1500°F (816°C)

Body / Cover

Cast Carbon Steel (WCB), Stainless Steel, or Alloy Steel

Gaskets

Stainless Steel / Graphite Composite

Design Standards & Compliance

FlowBiz valves are manufactured to meet the most stringent global engineering standards:

  • Design Standard: BS 1868 (Steel Check Valves)
  • Pressure/Temp Rating: ASME B16.34
  • Face-to-Face Dimension: ASME B16.10
  • End Flanges: ASME B16.5
  • Testing & Inspection: API 598 (Valve Inspection and Testing)

Key Features & Advantages

  • Low Pressure Drop: The straight-through, full-ported design offers minimal resistance to flow, making it highly efficient for high-volume liquid and gas lines.
  • Bolted Cover Design: Allows for easy internal inspection and maintenance of the hinge and disc assembly without removing the valve from the pipeline.
  • Internally Mounted Hinge: For sizes $2"$ to $12"$, the hinge is mounted internally, eliminating the need for body penetrations and reducing the risk of external leakage.
  • Extreme Thermal Resistance: Capable of operating in environments up to $816^{\circ}\text{C}$, ideal for superheated steam and refinery process lines.
  • Robust Sealing: Utilizes high-grade Graphite gaskets to ensure integrity under fluctuating thermal and pressure cycles.

Industries Served

FlowBiz Brand Swing Check Valves are trusted in the most critical industrial applications:

  • Refineries & Petrochemicals: Handling oil, gas, and volatile hydrocarbons.
  • Power Stations: Managing high-pressure feed water and steam condensates.
  • Process Industries: Chemicals, paper and pulp, and general industrial water handling.
  • Water Treatment: Protecting pumps and infrastructure from hydraulic shock.

Pan-India Supply Network

FlowBiz Exports is a leading manufacturer providing rapid delivery and technical support to:

  • Gujarat: Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Bharuch, and Ankleshwar.
  • Maharashtra: Mumbai, Pune, Nashik, Aurangabad, Nagpur, and Thane.
  • South & Central India: Chennai, Coimbatore, Salem, Indore, Bhopal, and more.
