Knife Gate Valve Manufacturer in India: FlowBiz Exports

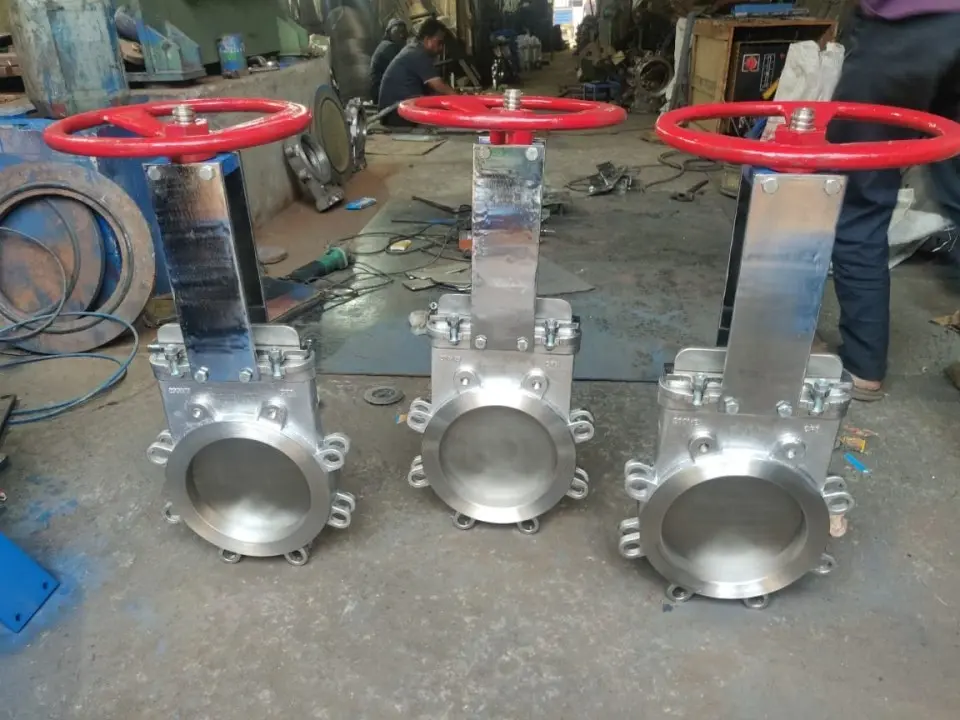

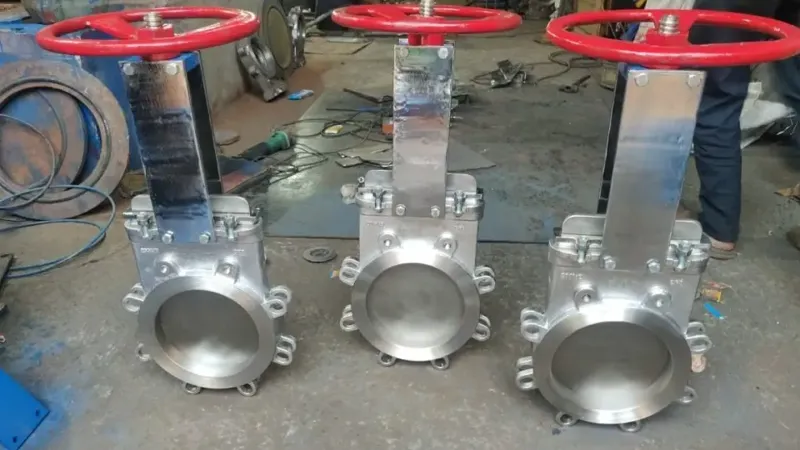

The FlowBiz Knife Edge Gate Valve features a sharpened stainless steel gate designed to cut through thick fluids, pulp stock, and dry solids. Its bonnet-less, slim profile makes it the ideal choice for applications involving abrasive slurries, minerals, and paper pulp, where sediment buildup is a constant challenge.
Technical Specifications & Compliance
FlowBiz ensures every valve meets international engineering standards for safety and performance:
Feature | Specification Details |
Size Range | 2 inches to 24 inches (50 mm to 600 mm) |
Pressure Rating | Class 150 and PN 10 |
End Connections | Wafer, Lugged, and Flanged |
Seating | Metal-to-Metal (Metallic) or Resilient (Soft) Seats |
Flow Direction | Unidirectional and Bidirectional variants |
Compliance Standards:
- Valve Design: MSS SP 81
- Wall Thickness: ANSI B16.34
- Face-to-Face: MSS SP 81
- Flange Dimensions: ANSI B16.5
- Testing Standard: MSS SP 151
Key Features & Advantages
- Self-Cleaning Action: The sharpened "knife" edge of the gate shears through solids and sediments in the flow path, ensuring a positive seal even with high-density slurries.
- Compact Wafer Design: The slim face-to-face dimension saves space and reduces the overall weight of the piping system.
- Heavy-Duty Construction: Built to handle abrasive media such as dry ash, wood chips, and minerals without structural fatigue.
- Versatile Seating: Available with metallic seats for high-temperature/abrasive use or resilient seats (EPDM/Viton/PTFE) for bubble-tight liquid service.
- Custom Actuation: Can be supplied with Manual Handwheels, Levers, Pneumatic Cylinders, or Electric Actuators for automated process control.
Industries We Serve
FlowBiz Knife Gate Valves are the primary choice for India's heavy industries:
- Paper & Pulp: Handling pulp stock and recycled fiber lines.
- Thermal Power Plants: Managing fly ash and bottom ash slurries.
- Minerals & Metals: Iron ore slurries, coal washing, and tailing lines.
- Steel Plants: Blast furnace cooling and scale pit applications.
- Chemical & Petrochemical: Handling semi-solids and viscous chemical waste.
Pan-India Supply & Presence
Based in Mumbai, FlowBiz provides rapid delivery and technical support to all major industrial hubs:
- Maharashtra: Mumbai, Nashik, Pune, Thane, Nagpur, and Kolhapur.
- Gujarat: Ahmedabad, Vapi, Valsad, Surat, Gandhidham, and Bharuch.
- Central & South India: Indore, Bhopal, Chennai, Coimbatore, and Salem.
Contact Information
Reach out to the FlowBiz technical team for expert valve sizing and quick quotes:
- Website: www.flowbizexports.com
- Email: info@flowbizexports.com
- Contact: +91 8879358242 / +91 9016989898
- Location: Mumbai, India
Request Your Quick Quote Today!
Protect your high-density lines with the durability of FlowBiz Knife Edge technology. We provide Easy and Quick Quotes at factory prices for both domestic projects and global exports.
Contact FlowBiz Exports Pvt. Ltd. now – Your premier partner for Knife Gate Valves in India.
