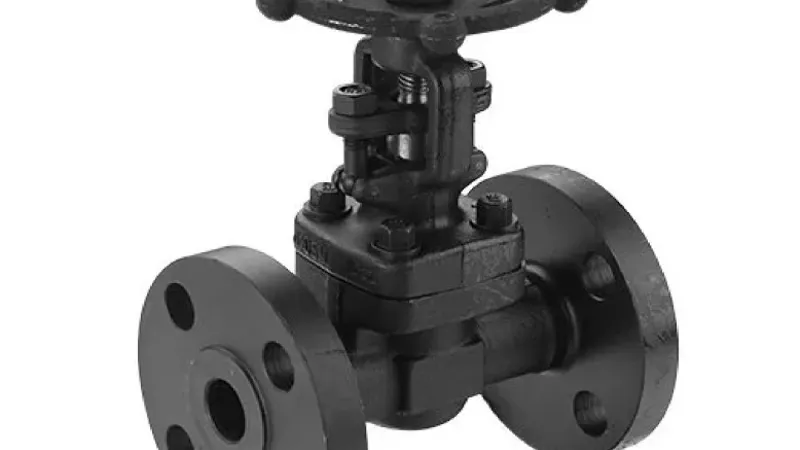

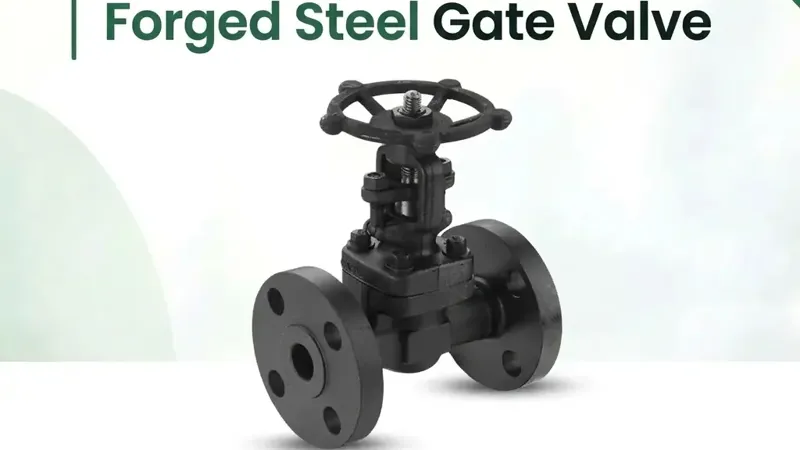

Forged Steel Gate Valve

Forged Steel Gate Valve Manufacturer: FlowBiz Exports

Forged Steel Gate Valves are specifically designed for small-bore, high-pressure applications. Unlike cast valves, the forging process eliminates internal porosity and enhances the mechanical properties of the steel, making these valves exceptionally resistant to thermal shock and high-velocity erosion.

Technical Specifications & Standards

  • Design Standard: API 602 / ASME B16.34
  • Testing Standard: API 598
  • Design Type: Outside Screw & Yoke (OS&Y), Rising Stem
  • Pressure Classes: Class 800, 1500, and 2500
  • Sizes: $1/2\text{ inch}$ to $2\text{ inches}$ ($15\text{mm}$ to $50\text{mm}$)
  • Body Materials: ASTM A105, A182 F304/F316, F11, F22

Why Choose Forged Steel Gate Valves?

  • Bidirectional Isolation: FlowBiz forged gate valves are engineered for bidirectional flow, providing an absolute seal regardless of the flow direction.
  • Tight Shutdown: Whether installed in horizontal or vertical pipelines, the precision-ground wedge ensures a promising shutoff for leak-sensitive services.
  • Superior to Ball Valves for Isolation: In many trapping stations and high-temperature steam lines, gate valves are preferred over ball valves because they avoid the risk of cavity pressure buildup and handle thermal expansion more effectively.
  • OS&Y Construction: The Outer Screw and Yoke design keeps the stem threads outside the process media, preventing corrosion and allowing for easy lubrication to ensure smooth operation over a long service life.
  • Full Port / Reduced Port Options: Available in configurations to optimize flow velocity and minimize pressure drop according to system requirements.

Key Industrial Applications

Our Forged Steel Gate Valves are optimized for the most critical sectors in India and overseas:

  • Refineries & Petrochemicals: Handling high-pressure hydrocarbons and volatile organic compounds.
  • Thermal Power Plants: Isolating high-pressure steam lines and boiler feed water.
  • Chemical Processing: Reliable performance in corrosive environments (using SS316/F316 bodies).
  • Oil & Gas: Upstream and downstream high-pressure piping manifolds.

Your One-Stop Flow Control Partner

FlowBiz Exports is a leading manufacturer and supplier of a comprehensive range of valves:

  • Isolation: Ball, Butterfly, Plug, and Knife Edge Gate Valves.
  • Control & Regulation: Globe, Needle, and Diaphragm Valves.
  • Lined Range: PFA/FEP Lined Valves for highly corrosive media.
  • Filtration: Y-Type, Basket, and Conical Strainers.

Contact Information

Reach out to the FlowBiz technical team for API 602 data sheets and quick quotes:

Request Your Quick Quote Today!

Eliminate downtime and secure your high-pressure systems with the strength of FlowBiz forged engineering. We provide Easy and Quick Quotes for domestic industrial projects and international export inquiries.

Contact FlowBiz Exports Pvt. Ltd. now – Your premier partner for Forged Steel Gate Valves.
