Pharma Butterfly Valve

Pharma Butterfly Valve Manufacturer: FlowBiz Exports

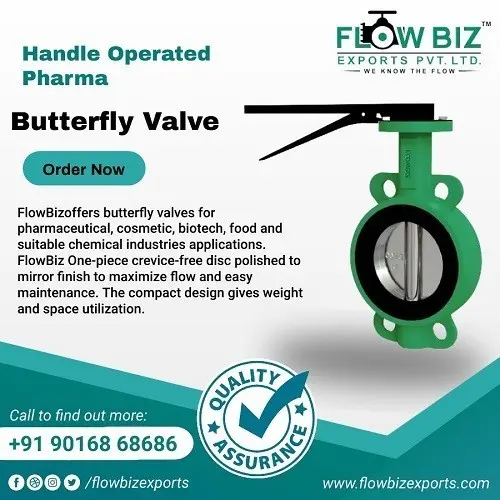

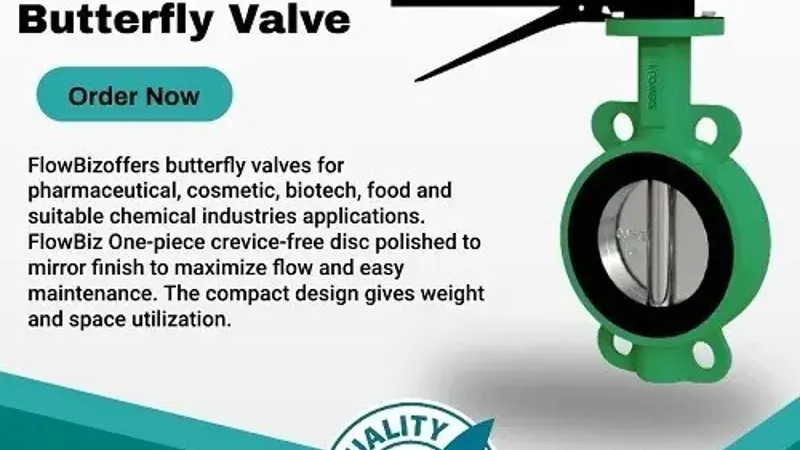

The FlowBiz Pharma Butterfly Valve is a "Fit & Forget" solution that prioritizes cleanability and structural integrity. Unlike industrial butterfly valves, our pharma range features a one-piece, crevice-free disc polished to a mirror finish. This eliminates areas where bacteria or product residue can accumulate, making it ideal for SIP (Steam-In-Place) and CIP (Clean-In-Place) cycles.

Technical Specifications

Feature

Specification Details

Size Range

2 inches to 16 inches (50 mm to 400 mm)

Body / Disc Finish

Mirror Finish (Crevice-free design)

Pressure Rating

Bi-directional sealing up to PN 10 / PN 16

Working Pressure

Max. 3 to 4 kg/cm²

Temp. Range

-50°C to +400°C

Sealing

Integrally molded soft seat for vacuum-tight shut-off

Key Features & Advantages

  • Crevice-Free Construction: The one-piece disc design ensures there are no pits, bolts, or joints exposed to the media, maximizing flow efficiency and facilitating rapid cleaning.
  • Aseptic Integrity: The body liner doubles as the soft seat, ensuring the process fluid never comes into contact with the metallic valve body.
  • Bi-Directional Sealing: Provides a secure seal against flow from either direction, including full vacuum applications, maintaining system pressure integrity.
  • Compact & Lightweight: The streamlined design allows for superior space utilization in tight skid-mounted pharmaceutical systems.
  • High Thermal Range: Engineered to operate from cryogenic levels ($-50^{\circ}\text{C}$) up to high-temperature sterilization phases ($+400^{\circ}\text{C}$).
  • Low Maintenance: Designed as a "Fit & Forget" component, our valves require minimal intervention, reducing downtime in continuous batch processing.

Critical Applications

FlowBiz Pharma Butterfly Valves are the trusted choice for:

  • Biotechnology: Handling cell cultures and sensitive fermented broths.
  • Pharmaceuticals: Processing active pharmaceutical ingredients (APIs) and ointments.
  • Cosmetics: Managing lotions, creams, and high-viscosity personal care products.
  • Food & Beverage: Reliable control for dairy, juices, and syrup lines.

Your Global Flow Control Partner

FlowBiz Exports is a premier manufacturer supplying a full suite of accessories to critical sectors:

  • Lined Valves: PFA/FEP Lined for aggressive chemicals.
  • Instrumentation: Needle Valves and Sight Glasses.
  • Filtration: Y-Type, Basket, and Conical Strainers.
  • Specialized: Knife Edge Gate and Diaphragm Valves.

Contact Information

Consult with the FlowBiz technical team for material compatibility (EPDM, Silicon, Viton, or PTFE seats) and quick quotes:

Request Your Quick Quote Today!

Upgrade your hygienic standards with FlowBiz mirror-finish technology. We provide Easy and Quick Quotes for both domestic laboratory setups and large-scale international production facilities.

Contact FlowBiz Exports Pvt. Ltd. now – Your premier manufacturer for Pharma Butterfly Valves.
