Metal Seated Butterfly Valves

Metal Seated Butterfly Valve Manufacturer: FlowBiz Exports

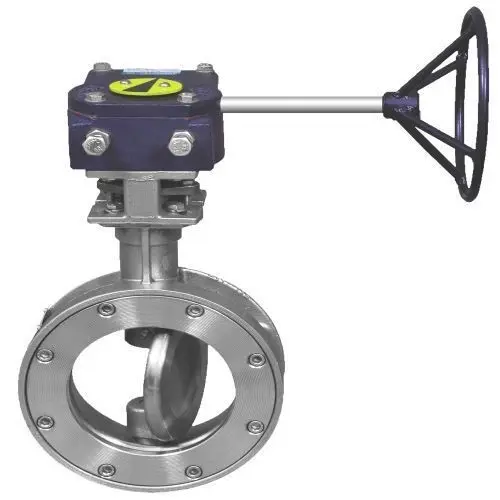

The FlowBiz Metal Seated Butterfly Valve is engineered for high-performance service. Unlike resilient seated valves that use rubber or polymers, these valves utilize a spherical disc design with a metal-to-metal replaceable seat. This allows the valve to maintain structural integrity and a high degree of sealing (Leakage Class VI) at temperatures ranging from cryogenic levels up to $400^{\circ}\text{C}$.

Technical Specifications & Compliance

Feature

Specification Details

Size Range

2 inches to 18 inches (50 mm to 450 mm)

Material Options

Cast Steel (CS), SS304, SS316, SS304L, SS316L

Pressure Rating

PN 10 / PN 16

Temperature Range

-50°C to 400°C

Leakage Class

ASME B16.104 Leakage Class VI (Bubble-tight)

Operation

Handle (Lever) or Gear Operated

Applicable Standards:

  • Design & Manufacturing: API 609
  • Face-to-Face Dimensions: API 609 Category “B”
  • Flange Dimensions: ASME / ANSI B 16.5 Class 150
  • Inspection & Testing: API 598

Key Features & Advantages

  • High-Temperature Performance: The metal-to-metal seating surface is immune to the melting or degradation issues common in soft-seated valves, making it ideal for superheated steam and hot gas.
  • Anti-Leakage Design: Despite being all-metal, the precision-machined spherical disc ensures a tight shut-off, meeting ASME Class VI leakage standards.
  • Long Service Life: The rugged construction is highly resistant to erosion from abrasive slurries, high-velocity steam, and fly ash.
  • Replaceable Seat: FlowBiz valves feature a replaceable seat design, allowing for economical maintenance and extending the total life of the valve body.
  • Versatile Material Range: Available in various grades of Stainless Steel (304/316/L) to handle corrosive chemical environments and oxidation at high temperatures.

Ideal Industrial Applications

FlowBiz Metal Seated Butterfly Valves are the preferred choice for:

  • Power Plants: Steam isolation, condensate return, and fly ash handling.
  • Steel Plants: High-temperature furnace gases and cooling water.
  • Petrochemicals: Handling hydrocarbons at elevated temperatures.
  • Refineries: Managing high-viscosity media and processing fluids.
  • HVAC & District Heating: High-pressure hot water distribution.

Your Trusted Flow Control Partner

FlowBiz Exports is a leading manufacturer of a comprehensive range of valves:

  • High Pressure: Forged Steel Gate, Globe, and Needle Valves.
  • Specialized: Knife Edge Gate, Plug, and PFA/FEP Lined Valves.
  • Check Valves: NRV, Swing Check, and Wafer Disc Check Valves.
  • Filtration: Duplex, Y-Type, and Basket Strainers.

Contact Information

Consult with the FlowBiz technical team for expert valve sizing and quick quotes:

Request Your Quick Quote Today!

Secure your high-temperature infrastructure with the durability of FlowBiz metal-to-metal technology. We provide Easy and Quick Quotes for both domestic industrial projects and large-scale global exports.

Contact FlowBiz Exports Pvt. Ltd. now – Your leading partner for Metal Seated Butterfly Valves.
