Offset Disc Butterfly Valve

Double-Offset Butterfly Valve (High Performance)

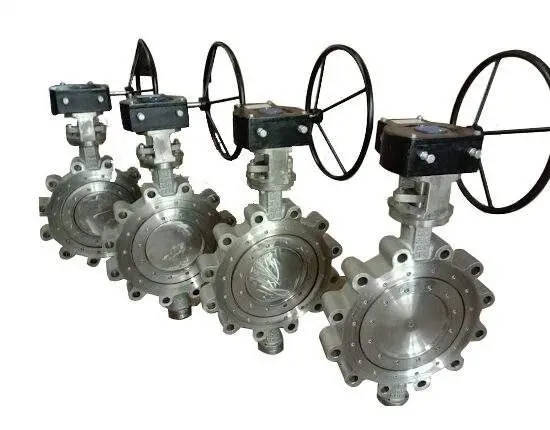

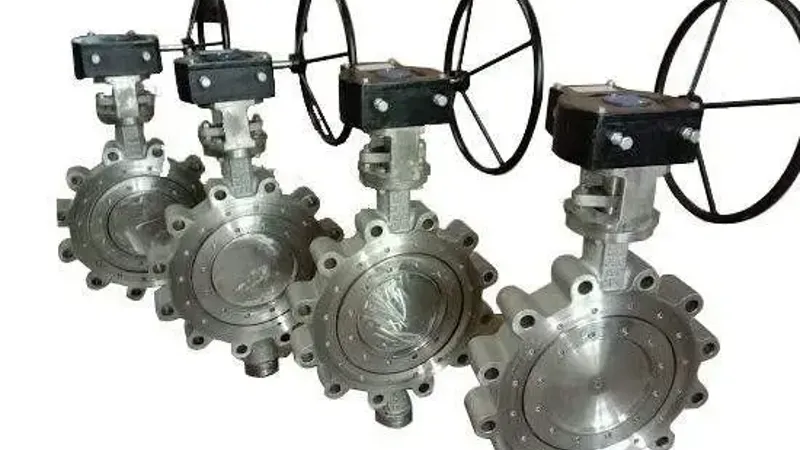

The defining characteristic of the FlowBiz Double-Offset Valve is its eccentric shaft design. By moving the shaft away from the center of the disc and the pipeline, the valve creates a "cam action" during operation. This allows the disc to lift off the seat immediately upon opening, drastically reducing friction and torque requirements.

The Two Offsets Explained:

  1. 1st Offset: The axis of the shaft is positioned behind the centerline of the disc’s sealing point. This allows for a continuous $360^{\circ}$ sealing surface.
  2. 2nd Offset: The axis of the shaft is eccentric to the vertical centerline of the valve and pipeline. This creates the "cam-to-seat" action, where the disc unseats with minimal rotation, preventing seat deformation.

Technical Specifications

Feature

Specification Details

Size Range

2 1/2 inches to 48 inches (65 mm to 1200 mm)

Pressure Ratings

Up to ANSI Class 600

Body Materials

Cast Carbon Steel (WCB), Stainless Steel (CF8/CF8M), Hastelloy, and more

Seating Options

Reinforced Teflon (PTFE/RPTFE) or Fire-Safe Metal-to-Metal Seats

Standard Compliance

Designed to meet global API and ASME standards

Key Advantages & Features

  • High-Pressure Capability: Unlike zero-offset (concentric) valves, the double-offset design is built to withstand pressures up to Class 600, making it suitable for rigorous steam and hydrocarbon service.
  • Reduced Wear & Tear: The cam action ensures that the disc only contacts the seat at the final few degrees of closure, significantly extending the life of the sealing elements.
  • Fire-Safe Integrity: We offer specialized metal-to-metal seating designs that maintain seal integrity during and after exposure to high-temperature fire events.
  • Smooth Operation: The reduction in friction results in lower operating torque, allowing for the use of smaller, more cost-effective actuators.

Strategic Industrial Applications

FlowBiz High-Performance valves are utilized by major players in:

  • Energy: Oil & Gas (Upstream/Downstream), Power Generation, and Shipbuilding.
  • Process: Chemical processing, Pulp & Paper, and HVAC systems.
  • Infrastructure: Water and wastewater treatment plants.

Global Presence & Reliability

FlowBiz Exports is a premier manufacturer and supplier serving critical sectors across India and internationally. Our high-grade range is trusted by customers in Dubai, Turkey, Africa, Southeast Asia (Thailand, Vietnam), and Europe.

Contact Information

Consult with the FlowBiz technical team for material selection and quick quotes:

Request Your Quick Quote Today!

Secure your high-pressure lines with the "cam action" precision of FlowBiz. We provide Easy and Quick Quotes for both domestic infrastructure and high-volume international exports.

Contact FlowBiz Exports Pvt. Ltd. now – Your leading partner for High-Performance Butterfly Valves.
